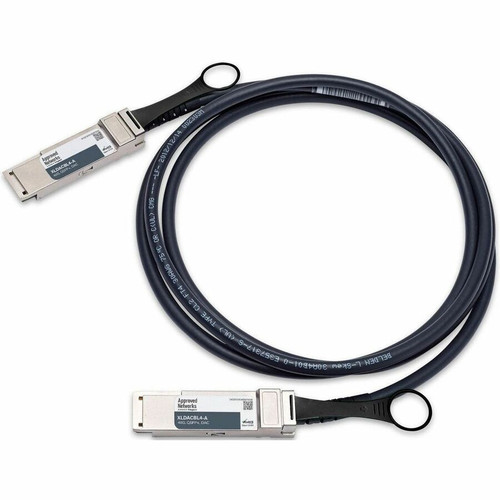

Approved Networks 40GBASE QSFP+ Passive DAC Cable (QSFP+ to QSFP+) - 13.1 ft (4 m) Twinaxial Network Cable for Network Device, Router, (XLDACBL4-A)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Cable Type: Twinaxial
Cable Length: 13.1 ft (4 m)
Maximum Distance: 22.97 ft (7000 mm)
Connector Type on First End: QSFP+ Network
Connector on First End Details: 1 x QSFP+ Network
Connector Type on Second End: QSFP+ Network
Connector on Second End Details: 1 x QSFP+ Network
Device Supported: Network Device,Router,Storage System,Switch
American Wire Gauge: 28 AWG
Data Transfer Rate: 40 Gbit/s
Features: Passive,Bendable,Minimized Near-End Crosstalk (NEXT),EMI Protection
Product Material: Copper,Silver-plated Copper,Metal
Jacket Material: Polyvinyl Chloride (PVC)
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: Lifetime
- Offers dependable network connectivity for stable performance, supporting uninterrupted operations and consistent data flow across connected systems
- Provides Twinaxial connector configuration for secure high-speed data transfer, ensuring smooth integration across supported devices
- Passive feature designed for convenience and ease of use, ensuring smooth operation and improved functionality across supported devices
- Fully compatible with network devices, offering seamless integration for reliable performance
[custom-specifications]
| Specifications | |
| Manufacturer | Legrand Group |
| Manufacturer Part Number | XLDACBL4-A |
| Manufacturer Website Address | http://www.legrand.com |
| Brand Name | Approved Networks |
| Product Name | 40GBASE QSFP+ Passive DAC Cable (QSFP+ to QSFP+) |
| Package Type | OEM |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Twinaxial |
| Cable Length | 13.1 ft (4 m) |
| Maximum Distance | 22.97 ft (7000 mm) |
| Connector Type on First End | QSFP+ Network |
| Connector on First End Details | 1 x QSFP+ Network |
| Connector Type on Second End | QSFP+ Network |
| Connector on Second End Details | 1 x QSFP+ Network |
| Device Supported | Network Device,Router,Storage System,Switch |
| American Wire Gauge | 28 AWG |
| Data Transfer Rate | 40 Gbit/s |
| Features | Passive,Bendable,Minimized Near-End Crosstalk (NEXT),EMI Protection |
| Physical Characteristics | |
| Product Material | Copper,Silver-plated Copper,Metal |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
[/custom-user-manual]
