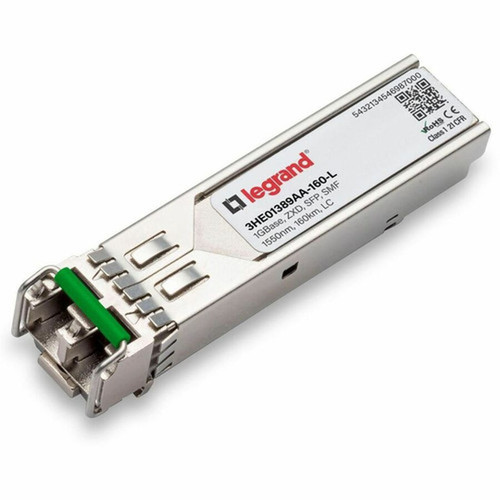

Ortronics 3HE01389AA-160-A Alcatel-Lucent Compatible SFP Module - Gigabit Ethernet 1000Base-ZX Optical Fiber
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This SFP module operates on Gigabit Ethernet technology with 1000Base-ZX network support, optimized for single-mode fiber deployments over extended distances. The optical fiber media type ensures minimal signal loss and durable performance in high-speed networking scenarios.
The module's electrical interface complies with SFP MSA specifications, while the optical interface uses LC duplex connectors for reliable fiber termination. Its design supports digital diagnostics monitoring (DDM) capabilities for real-time performance tracking when implemented by the host device.
Key Product Advantages
This SFP module delivers several advantages for network infrastructure deployment. Its Alcatel-Lucent compatibility ensures seamless integration with existing network equipment, reducing compatibility concerns during upgrades or expansions.
Extended Distance Performance
The 1000Base-ZX technology supports longer fiber runs compared to standard Gigabit Ethernet, making it suitable for campus networks and metropolitan area connections.
- Optimized for single-mode fiber
- Minimal signal degradation over distance
- Reliable data integrity
Environmental Compliance
Manufactured with RoHS compliance, this module meets environmental standards while providing durable construction for continuous operation in network environments.
- RoHS certified
- Reduced hazardous substances
- Environmentally conscious design
Deployment / Use Cases
This SFP module is engineered for data networking and optical network applications where reliable Gigabit Ethernet connectivity over fiber is required. Its 1000Base-ZX technology makes it particularly suitable for longer-distance connections within enterprise networks.
Common deployment scenarios include connecting network switches across buildings in campus environments, providing fiber uplinks for aggregation switches, and establishing backbone connections in data center networks. The module's compatibility with Alcatel-Lucent equipment makes it a practical choice for organizations standardizing on that platform.
Enterprise Network Backbone
Deploy as fiber interconnects between core switches to create high-speed backbone links that support data-intensive applications across multiple locations.
Data Center Connectivity
Use in server-to-switch or switch-to-switch connections within data centers where fiber optic media provides immunity to electromagnetic interference.
Physical Profile
The module measures 0.33 inches in height, 0.54 inches in width, and 2.30 inches in depth (8.50 × 13.70 × 58.40 mm), conforming to the standard SFP form factor. This compact design allows high-density deployment in network equipment with multiple SFP ports. The module features a standard SFP cage interface with an LC duplex optical connector for fiber termination, ensuring secure connections in various mounting orientations.
- Width
- 0.54" (13.70 mm)
- Depth
- 2.30" (58.40 mm)
- Height
- 0.33" (8.50 mm)
Highlights
- Alcatel-Lucent compatible SFP module for seamless network integration
- 1000Base-ZX technology supporting 1 Gbps data transfer over optical fiber
- Gigabit Ethernet performance for high-speed network applications
- Optical fiber media type for minimal signal loss and extended distance capability
- Hot-pluggable SFP form factor for easy installation and replacement
- Compact dimensions: 0.33" H × 0.54" W × 2.30" D (8.50 × 13.70 × 58.40 mm)
- RoHS compliant construction meeting environmental standards
- Lifetime warranty for long-term reliability assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Legrand Group |
| Manufacturer Part Number | 3HE01389AA-160-A |
| Brand Name | Approved Networks |
| Product Name | Alcatel-Lucent SFP Module |
| Product Type | SFP |
| Technical Information | |
| Application/Usage | Data Networking,Optical Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-ZX |
| Maximum Data Transfer Rate | 1 Gbit/s |
| Physical Characteristics | |
| Height | 0.33" (8.50 mm) |
| Width | 0.54" (13.70 mm) |
| Depth | 2.30" (58.40 mm) |
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What type of SFP module is this and what is it compatible with?
This is a Gigabit Ethernet SFP module that is compatible with Alcatel-Lucent networking equipment. It uses the standard SFP form factor and supports 1000Base-ZX technology for optical fiber connections. The manufacturer part number 3HE01389AA-160-A ensures proper identification and compatibility verification with your specific Alcatel-Lucent devices.
What network speed and technology does this SFP module support?
The module supports Gigabit Ethernet with 1000Base-ZX technology, providing a maximum data transfer rate of 1 Gbit/s. This technology is specifically designed for extended-distance optical fiber connections, making it suitable for campus networks and longer fiber runs where standard Gigabit Ethernet might not reach the required distance.
What type of fiber cable does this SFP module require?
This SFP module requires optical fiber cable with LC duplex connectors. It is designed for single-mode fiber deployments, which support longer transmission distances compared to multimode fiber. The 1000Base-ZX technology is optimized for single-mode fiber applications, ensuring reliable performance over extended network segments.
What are the physical dimensions of this SFP module?
The module measures 0.33 inches in height, 0.54 inches in width, and 2.30 inches in depth (8.50 × 13.70 × 58.40 mm). These dimensions conform to the standard SFP form factor specification, ensuring compatibility with SFP slots in network switches, routers, and other networking equipment that accept SFP modules.
