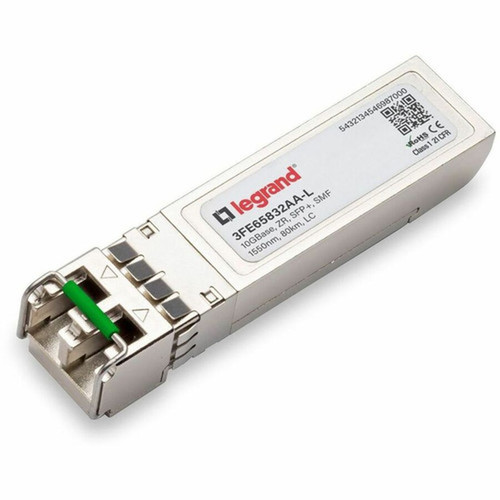

Ortronics 3FE65832AA-A Alcatel-Lucent SFP+ Module - 10GBase-ZR LC Duplex Single-mode 80 km
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This SFP+ module operates on 10 Gigabit Ethernet technology, specifically implementing the 10GBase-ZR protocol for extended reach over single-mode fiber. It uses a single wavelength of light to carry data efficiently, supporting audio, video, and data applications across metropolitan and long-haul network segments. The module's design ensures low power consumption and stable operation in varied temperature conditions typical of data center and enterprise environments.
Key technical specifications include a maximum data transfer rate of 10 Gbit/s, supported by the LC duplex connector that provides a secure optical interface. The module's physical dimensions are optimized for standard SFP+ slots, with a height of 0.55 inches, width of 0.55 inches, and depth of 2.30 inches. It is manufactured in China and adheres to Restriction of Hazardous Substances (RoHS) guidelines, confirming its environmentally friendly construction.
Key Product Advantages
The Ortronics Alcatel-Lucent SFP+ Module offers significant advantages for network infrastructure requiring high-speed, long-distance fiber connectivity. Its 10GBase-ZR technology ensures reliable performance up to 80 kilometers, reducing the need for intermediate signal boosters in extended network layouts. The single-mode fiber support minimizes signal attenuation and maintains data integrity over miles, crucial for backbone and core network links.
Extended Reach Capability
With support for distances up to 80 km, this module is ideal for connecting geographically dispersed sites, such as between data centers or across campus networks, without compromising speed.
- 80 km maximum distance
- Single-mode fiber efficiency
- Low signal loss over long hauls
High-Speed Data Transfer
Delivering 10 Gbit/s throughput, the module handles bandwidth-intensive applications like video streaming, large file transfers, and cloud services with ease, ensuring network scalability.
- 10 Gbit/s data rate
- 10 Gigabit Ethernet technology
- Supports high-bandwidth workloads
Deployment / Use Cases
This SFP+ module is deployed in scenarios demanding robust, high-speed optical connections. It is commonly used in enterprise data centers to link switches and routers over single-mode fiber backbones, providing the bandwidth needed for virtualization, storage area networks, and server clusters. Telecommunications operators also utilize it for metropolitan area network (MAN) extensions, where 80 km reach connects central offices to remote facilities.
In educational and government networks, the module supports secure, high-capacity links between buildings or campuses, enabling seamless data sharing and communication. Its compatibility with Alcatel-Lucent and other SFP+ capable equipment makes it a versatile choice for upgrading existing infrastructure to 10 Gigabit Ethernet without replacing entire systems.
Data Center Interconnects
Ideal for connecting data center switches over single-mode fiber, ensuring low-latency, high-throughput links for critical applications and disaster recovery setups.
Long-Distance Network Backbones
Suitable for extending network backbones across cities or regions, providing reliable connectivity for service providers and large enterprises with distributed operations.
Physical Profile
The module features a compact, industry-standard SFP+ form factor with dimensions of 0.55 inches in height, 0.55 inches in width, and 2.30 inches in depth. This small footprint allows for high-density installations in network switches and routers, maximizing port utilization without sacrificing performance. The robust construction ensures durability in rack-mounted or enclosed environments, with materials compliant with RoHS for reduced environmental impact.
- Width
- 0.55" (13.90 mm)
- Depth
- 2.30" (58.40 mm)
- Height
- 0.55" (13.90 mm)
Highlights
- 10GBase-ZR technology for 10 Gbit/s data transfer over optical fiber
- LC duplex connector supports single-mode fiber for reliable long-distance connections
- Maximum reach of 80 km (49.71 miles) ideal for extended network deployments
- Hot-pluggable SFP+ module for easy installation and maintenance without downtime
- Single-mode fiber mode minimizes signal loss and enhances data integrity
- Compact dimensions (0.55" H x 0.55" W x 2.30" D) fit standard SFP+ slots
- RoHS compliant and environmentally friendly construction
- Lifetime limited warranty for long-term reliability and peace of mind
Specifications
| Specifications | |
|---|---|
| Manufacturer | Legrand Group |
| Manufacturer Part Number | 3FE65832AA-A |
| Brand Name | Approved Networks |
| Product Name | Alcatel-Lucent SFP+ Module |
| Product Type | SFP+ |
| Technical Information | |
| Application/Usage | Optical Network,Data Networking |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC Duplex 10GBase-ZR Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10GBase-ZR |
| Maximum Distance Supported | 80 km (49.71 Mile) |
| Maximum Data Transfer Rate | 10 Gbit/s |
| Physical Characteristics | |
| Height | 0.55" (13.90 mm) |
| Width | 0.55" (13.90 mm) |
| Depth | 2.30" (58.40 mm) |
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What is the maximum data transfer rate of this SFP+ module?
This Ortronics Alcatel-Lucent SFP+ Module supports a maximum data transfer rate of 10 Gbit/s using 10 Gigabit Ethernet technology. It is designed for high-speed network applications, ensuring efficient handling of bandwidth-intensive tasks like data backups, video streaming, and cloud computing over optical fiber connections.
What type of fiber and connector does this module use?
The module uses single-mode optical fiber with an LC duplex connector. This combination provides a secure, low-loss interface suitable for long-distance transmissions up to 80 kilometers, making it ideal for backbone network links and data center interconnects where reliability and performance are critical.
What is the maximum distance supported by this SFP+ module?
This module supports a maximum distance of 80 kilometers (approximately 49.71 miles) over single-mode fiber. This extended reach capability allows it to connect geographically separated sites, such as between different data centers or across metropolitan networks, without requiring additional signal amplification equipment.
