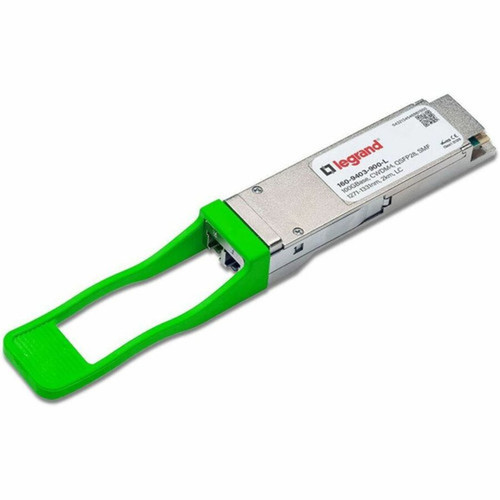

Ortronics 160-9403-900-A Ciena QSFP28 Module - 100GBase-CWDM4 - LC Duplex - Single-mode - 2 km Reach
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This optical transceiver operates on the 100GBase-CWDM4 standard, utilizing coarse wavelength-division multiplexing across four lanes to achieve 100 Gbps throughput. It supports single-mode fiber media, enabling data transmission over distances up to 2 kilometers with minimal signal loss.
The module's electrical interface complies with QSFP28 MSA specifications, ensuring hot-pluggable operation in compatible networking equipment. Its digital diagnostics monitoring capabilities provide real-time performance tracking for network management.
Key Product Advantages
This transceiver combines high performance with operational reliability, making it suitable for demanding network environments. The 100GBase-CWDM4 technology provides efficient bandwidth utilization while maintaining signal integrity over extended fiber runs.
High-Speed Connectivity
Delivers full 100 Gbps throughput for bandwidth-intensive applications including data center interconnects, enterprise backbone networks, and service provider infrastructure.
- 100 Gigabit Ethernet technology
- CWDM4 wavelength multiplexing
- Low-latency data transmission
Extended Reach Capability
Supports transmission distances up to 2 kilometers on single-mode fiber, enabling flexible network design without signal degradation concerns.
- 2 km maximum distance
- Single-mode fiber optimization
- Minimal signal attenuation
Deployment / Use Cases
This QSFP28 module is engineered for optical networking applications requiring high-density 100GbE connectivity. Its compatibility with Ciena equipment makes it ideal for service provider networks, data center interconnects, and enterprise network upgrades.
Common deployment scenarios include connecting switches and routers in data center environments, establishing point-to-point links between network nodes, and expanding existing fiber infrastructure with 100GbE capabilities. The module's RoHS compliance ensures environmentally responsible deployment in various geographic regions.
Data Center Interconnect
Connect switches and routers across data center floors or between facilities with high-bandwidth 100GbE links that maintain data integrity over fiber distances.
Network Infrastructure Upgrade
Modernize existing network equipment by adding 100GbE ports through QSFP28 transceiver deployment, enabling higher throughput without complete hardware replacement.
Physical Profile
The compact QSFP28 form factor measures 0.33" (8.50 mm) in height, 0.72" (18.35 mm) in width, and 4.80" (122 mm) in depth. This standardized size ensures compatibility with QSFP28 ports across various networking equipment manufacturers. The module's design supports hot-pluggable installation without requiring system shutdowns.
- Width
- 0.72" (18.35 mm)
- Depth
- 4.80" (122 mm)
- Height
- 0.33" (8.50 mm)
Highlights
- 100GBase-CWDM4 technology for 100 Gbps data transfer
- QSFP28 form factor with hot-pluggable design
- LC duplex connector for secure fiber optic connections
- Single-mode fiber support with 2 km maximum reach
- Compatible with Ciena networking platforms
- RoHS compliant for environmental responsibility
- Lifetime limited warranty coverage
- Digital diagnostics monitoring capabilities
Specifications
| Specifications | |
|---|---|
| Manufacturer | Legrand Group |
| Manufacturer Part Number | 160-9403-900-A |
| Brand Name | Approved Networks |
| Product Name | Ciena QSFP28 Module |
| Product Type | QSFP28 |
| Technical Information | |
| Application/Usage | Optical Network,Data Networking |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC Duplex 100GBase-CWDM4 Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Ethernet Technology | 100 Gigabit Ethernet |
| Network Technology | 100GBase-CWDM4 |
| Maximum Distance Supported | 2 km (1.24 Mile) |
| Maximum Data Transfer Rate | 100 Gbit/s |
| Physical Characteristics | |
| Height | 0.33" (8.50 mm) |
| Width | 0.72" (18.35 mm) |
| Depth | 4.80" (122 mm) |
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What type of connector does this QSFP28 module use?
This module features an LC duplex connector, which provides a secure connection for single-mode fiber optic cables. The LC interface is widely adopted in networking equipment for its compact size and reliable performance in high-density applications.
What is the maximum transmission distance supported?
The module supports transmission distances up to 2 kilometers (approximately 1.24 miles) over single-mode fiber optic cable. This reach capability makes it suitable for connecting network equipment across data center floors or between nearby facilities without signal degradation.
What networking standard does this transceiver comply with?
This transceiver operates on the 100GBase-CWDM4 standard, which utilizes coarse wavelength-division multiplexing across four lanes to achieve 100 Gbps throughput. It is compatible with 100 Gigabit Ethernet networks and designed for use with Ciena networking equipment.
Is this module hot-pluggable?
Yes, the QSFP28 form factor supports hot-pluggable installation, allowing you to insert or remove the module without powering down the networking equipment. This feature enables maintenance and upgrades without disrupting network operations.
