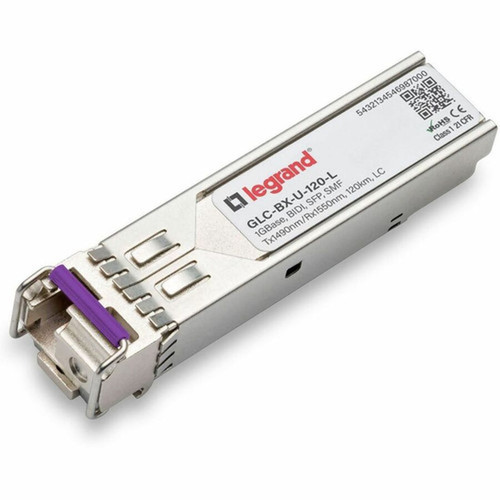

Ortronics GLC-BX-U-120-A Cisco SFP Module - 1Gbps 1000Base-BX Single-mode LC Duplex - 120 km Reach
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This SFP module operates on the 1000Base-BX standard, utilizing wavelength division multiplexing for bidirectional communication over a single strand of single-mode fiber. It features an LC duplex connector interface, supporting one port for streamlined fiber optic connections.
The module achieves a maximum data transfer rate of 1 Gbit/s, making it suitable for high-speed data transmission in enterprise and service provider networks. Its design emphasizes low power consumption and reliable performance, with built-in support for digital diagnostics monitoring (DDM) to facilitate real-time performance tracking.
Key Product Advantages
This Ortronics SFP module offers extended reach capabilities, supporting distances up to 120 km, which is ideal for long-haul network links without signal degradation. Its compatibility with Cisco equipment ensures reliable performance and easy integration into existing network infrastructures.
Extended Distance Support
With a maximum supported distance of 120 km, this module enables long-range fiber connections, reducing the need for intermediate repeaters and lowering overall network complexity.
- Ideal for metropolitan area networks (MANs)
- Suitable for campus and data center interconnects
Cisco Compatibility
Designed to work with Cisco switches and routers, this SFP module provides a verified alternative to OEM transceivers, offering cost savings without compromising performance.
- Hot-pluggable for easy installation
- Supports standard Cisco management interfaces
Deployment / Use Cases
This SFP module is well-suited for optical network deployments requiring high-speed data transmission over single-mode fiber. Common applications include connecting network switches across buildings, linking data centers, and extending network reach in enterprise environments.
Its 1000Base-BX technology makes it particularly effective for point-to-point fiber links, where bidirectional communication over a single fiber strand optimizes fiber utilization. Network administrators can deploy these modules in scenarios demanding reliable gigabit speeds and extended distance coverage.
Enterprise Network Expansion
Use this module to connect remote offices or campus buildings over single-mode fiber, ensuring high bandwidth and low latency for critical business applications.
- Supports VoIP and video conferencing
- Ideal for backup and disaster recovery links
Service Provider Links
Service providers can leverage the 120 km reach for last-mile fiber connections or backhaul networks, delivering gigabit services to end-users with minimal infrastructure investment.
- Suitable for FTTH and business Ethernet services
- Enables scalable network growth
Physical Profile
The Ortronics GLC-BX-U-120-A SFP module features a compact design with dimensions of 0.50" (12.80 mm) in height, 0.54" (13.70 mm) in width, and 2.23" (56.60 mm) in depth. This small form factor allows for high-density installations in network equipment, maximizing port utilization without sacrificing performance.
- Width
- 0.54" (13.70 mm)
- Depth
- 2.23" (56.60 mm)
- Height
- 0.50" (12.80 mm)
Highlights
- Cisco-compatible SFP optical transceiver module for seamless integration
- 1 Gbps Gigabit Ethernet speed with 1000Base-BX network technology
- LC duplex connector interface for single-mode fiber connections
- Maximum reach of 120 km (74.56 miles) for long-distance networking
- Hot-pluggable design for easy installation and maintenance
- Supports digital diagnostics monitoring (DDM) for performance tracking
- RoHS compliant and environmentally friendly construction
- Lifetime limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Legrand Group |
| Manufacturer Part Number | GLC-BX-U-120-A |
| Brand Name | Approved Networks |
| Product Name | Cisco SFP Module |
| Product Type | SFP |
| Technical Information | |
| Application/Usage | Optical Network,Data Networking |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC Duplex 1000Base-BX Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-BX |
| Maximum Distance Supported | 120 km (74.56 Mile) |
| Maximum Data Transfer Rate | 1 Gbit/s |
| Physical Characteristics | |
| Height | 0.50" (12.80 mm) |
| Width | 0.54" (13.70 mm) |
| Depth | 2.23" (56.60 mm) |
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What is the maximum data transfer rate of this Ortronics SFP module?
This Ortronics GLC-BX-U-120-A SFP module supports a maximum data transfer rate of 1 Gbps (Gigabit per second). It utilizes 1000Base-BX network technology to deliver reliable high-speed data transmission over single-mode fiber optic cables, making it suitable for demanding network applications that require consistent gigabit performance.
What type of fiber and connector does this SFP module use?
This module is designed for single-mode fiber optic cables and features an LC duplex connector interface. The LC connector type provides a secure and low-loss connection, while single-mode fiber supports longer distance transmissions up to 120 km with minimal signal degradation, ideal for extended network links.
Is this SFP module compatible with Cisco network equipment?
Yes, the Ortronics GLC-BX-U-120-A is a Cisco-compatible SFP module. It is engineered to work seamlessly with Cisco switches and routers that support SFP interfaces, offering a cost-effective alternative to OEM transceivers without compromising on performance or reliability in optical network deployments.
What is the maximum distance supported by this SFP module?
This SFP module supports a maximum distance of 120 km (approximately 74.56 miles) over single-mode fiber. This extended reach capability makes it well-suited for long-haul network connections, such as linking remote offices, campus networks, or service provider backbones, without the need for signal repeaters.
