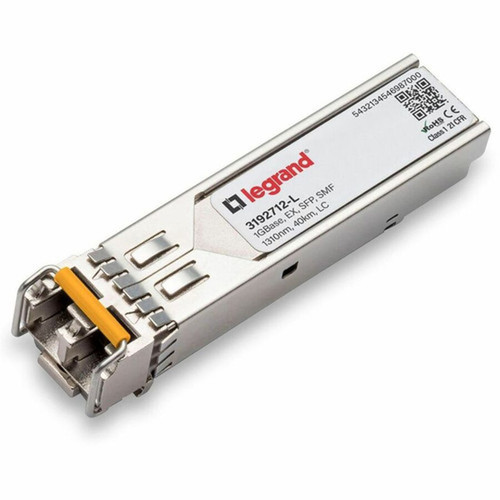

Ortronics 3192712-A Comtrend SFP Module - 1G LC Duplex 1000Base-EX Single-mode 40 km Transceiver
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This SFP module operates at a maximum data transfer rate of 1 Gbit/s, utilizing Gigabit Ethernet technology to support bandwidth-intensive applications. The 1000Base-EX standard enables efficient data transmission over single-mode fiber, optimizing performance for extended distances without compromising integrity.
The module features a single LC duplex port, providing a standardized interface for fiber optic cabling. Its compact form factor, with dimensions of 0.53" (13.40 mm) width, 0.33" (8.50 mm) height, and 2.23" (56.65 mm) depth, allows for high-density deployment in switches, routers, and media converters.
Key Product Advantages
This transceiver offers significant advantages for network infrastructure, combining high-speed performance with extended reach capabilities. Its design prioritizes reliability and compatibility in demanding optical networking scenarios.
Long-Distance Connectivity
Supports transmissions up to 40 kilometers, ideal for backbone and metropolitan area networks.
- Minimizes signal loss over distance
- Enables cost-effective fiber expansion
High-Speed Data Transfer
Delivers 1 Gbit/s throughput using Gigabit Ethernet and 1000Base-EX technology.
- Suitable for data-intensive applications
- Reduces network latency
Compact and Compliant
Features a small footprint for space-efficient deployment and meets RoHS environmental standards.
- Hot-pluggable for easy installation
- Reduces hazardous substances
Deployment / Use Cases
The Ortronics 3192712-A SFP Module is versatile for various optical networking deployments, particularly where long-distance, high-speed fiber connections are required. Its compatibility with standard SFP slots makes it a flexible component for upgrading or expanding network infrastructure.
Common use cases include connecting switches across campus buildings, linking data centers over metropolitan areas, and providing fiber uplinks for enterprise networks. It is also effective in telecommunications backhaul, internet service provider networks, and industrial environments where reliable, long-reach fiber optic connectivity is critical.
Enterprise Backbone Links
Connect core switches and routers across multiple buildings or floors using single-mode fiber.
Service Provider Networks
Deploy in ISP or telecom setups for efficient long-distance data transmission between nodes.
Physical Profile
The module has a compact design with dimensions of 0.33" (8.50 mm) height, 0.53" (13.40 mm) width, and 2.23" (56.65 mm) depth, allowing it to fit seamlessly into SFP slots on networking equipment. Its small form factor supports high-density installations without sacrificing performance, making it suitable for rack-mounted switches and modular chassis.
- Width
- 0.53" (13.40 mm)
- Depth
- 2.23" (56.65 mm)
- Height
- 0.33" (8.50 mm)
Highlights
- 1 Gbit/s data transfer rate for high-speed optical networking
- LC duplex connector for secure fiber optic connections
- Supports single-mode fiber with up to 40 km reach
- 1000Base-EX technology for efficient long-distance transmission
- Compact SFP form factor for space-efficient deployment
- Hot-pluggable design for easy installation and maintenance
- RoHS compliant for reduced environmental impact
- Ideal for data center, enterprise, and telecom applications
Specifications
| Specifications | |
|---|---|
| Manufacturer | Legrand Group |
| Manufacturer Part Number | 3192712-A |
| Brand Name | Approved Networks |
| Product Name | Comtrend SFP Module |
| Product Type | SFP |
| Technical Information | |
| Application/Usage | Optical Network,Data Networking |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC Duplex 1000Base-EX Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-EX |
| Maximum Distance Supported | 40 km (24.85 Mile) |
| Maximum Data Transfer Rate | 1 Gbit/s |
| Physical Characteristics | |
| Height | 0.33" (8.50 mm) |
| Width | 0.53" (13.40 mm) |
| Depth | 2.23" (56.65 mm) |
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
FAQ
What is the maximum distance this SFP module supports?
This SFP module supports a maximum distance of 40 kilometers (approximately 24.85 miles) over single-mode fiber optic cable. This extended reach makes it suitable for long-distance network links, such as connecting buildings across a campus or linking data centers in metropolitan areas.
What type of fiber and connector does this module use?
The module uses single-mode fiber optic cable with an LC duplex connector. Single-mode fiber is optimized for long-distance transmissions with minimal signal loss, while the LC duplex connector provides a reliable, standardized interface for secure fiber connections in networking equipment.
What is the data transfer rate of this SFP transceiver?
This SFP transceiver operates at a maximum data transfer rate of 1 Gbit/s (Gigabit Ethernet). It utilizes 1000Base-EX network technology to deliver high-speed performance for optical networking applications, ensuring efficient data flow in bandwidth-intensive environments.
Is this module hot-pluggable?
Yes, as a standard SFP module, it is hot-pluggable, allowing for installation or replacement without powering down the networking device. This feature minimizes downtime and simplifies maintenance in live network environments.
