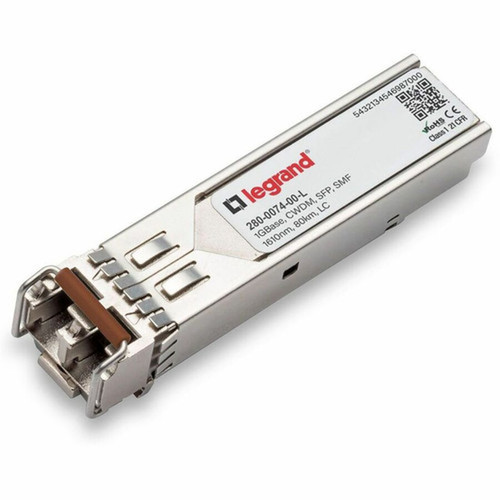

Ortronics 280-0074-00-A Cyan SFP Module - 1G LC Duplex 1000Base-CWDM - Single-mode 80 km
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This SFP transceiver operates at a maximum data transfer rate of 1 Gbit/s, utilizing Gigabit Ethernet technology to ensure efficient network throughput. The module supports single-mode fiber, which is ideal for long-distance transmissions with minimal signal loss, and features an LC duplex connector for secure fiber optic connections.
With a reach of up to 80 km (approximately 49.71 miles), the Cyan SFP Module is suitable for metropolitan area networks (MANs) and other applications requiring extended connectivity. Its 1000Base-CWDM technology enables the use of multiple wavelengths over a single fiber, optimizing bandwidth utilization and reducing infrastructure costs.
Key Product Advantages
The Ortronics Cyan SFP Module offers significant advantages for network deployments requiring high-speed, long-distance optical connectivity. Its design prioritizes performance, reliability, and environmental responsibility.
Extended Reach Capability
Supports transmissions up to 80 km, making it ideal for connecting geographically dispersed network nodes without signal degradation.
- Enables metropolitan and wide area network links
- Reduces need for intermediate repeaters
CWDM Technology Efficiency
Utilizes 1000Base-CWDM to multiplex multiple data channels over a single fiber strand, maximizing bandwidth efficiency.
- Optimizes fiber infrastructure utilization
- Supports scalable network expansion
Environmental Compliance
Manufactured in compliance with RoHS (Restriction of Hazardous Substances) standards, ensuring environmentally friendly operation.
- Reduces environmental impact
- Meets global regulatory requirements
Deployment / Use Cases
The Cyan SFP Module is engineered for diverse networking scenarios where reliable, high-speed optical connectivity is essential. Its compatibility with single-mode fiber and extended reach make it particularly valuable in enterprise and service provider environments.
Common deployment scenarios include connecting data center switches across campus networks, linking remote office locations in metropolitan areas, and supporting backbone infrastructure in telecommunications networks. The module's 1000Base-CWDM technology also makes it suitable for wavelength division multiplexing applications, where multiple services need to be carried over limited fiber resources.
Data Center Interconnects
Provides high-speed links between data center switches and storage arrays over single-mode fiber, ensuring low-latency performance for critical applications.
Metropolitan Network Backbones
Enables cost-effective connectivity across city-wide networks, supporting services like internet access, VoIP, and video streaming with 80 km reach.
Physical Profile
The Ortronics Cyan SFP Module features a compact form factor with dimensions of 0.55" (13.90 mm) width, 2.30" (58.40 mm) depth, and 0.33" (8.50 mm) height. This small footprint allows for high-density installations in network equipment, maximizing port utilization without sacrificing performance. The module's design ensures reliable operation in standard operating temperatures and is hot-pluggable for easy maintenance and upgrades.
- Width
- 0.55" (13.90 mm)
- Depth
- 2.30" (58.40 mm)
- Height
- 0.33" (8.50 mm)
Highlights
- SFP form factor transceiver for optical network and data networking applications
- 1000Base-CWDM technology delivering 1 Gbit/s data transfer rates
- LC duplex connector supporting single-mode fiber optic cables
- Maximum transmission distance of 80 km (49.71 miles) for extended reach
- Gigabit Ethernet compatibility for high-performance network connectivity
- RoHS compliant construction for environmental responsibility
- Lifetime limited warranty for long-term reliability assurance
- Hot-pluggable design for easy installation and maintenance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Legrand Group |
| Manufacturer Part Number | 280-0074-00-A |
| Brand Name | Approved Networks |
| Product Name | Cyan SFP Module |
| Product Type | SFP |
| Technical Information | |
| Application/Usage | Optical Network,Data Networking |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC Duplex 1000Base-CWDM Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-CWDM |
| Maximum Distance Supported | 80 km (49.71 Mile) |
| Maximum Data Transfer Rate | 1 Gbit/s |
| Physical Characteristics | |
| Height | 0.33" (8.50 mm) |
| Width | 0.55" (13.90 mm) |
| Depth | 2.30" (58.40 mm) |
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What type of fiber optic cable is compatible with this SFP module?
The Ortronics Cyan SFP Module is compatible with single-mode fiber optic cables. Single-mode fiber is designed for long-distance transmissions with minimal signal loss, making it ideal for the module's 80 km reach capability. This fiber type uses a single wavelength of light to carry data efficiently over extended distances.
What is the maximum data transfer rate supported by this transceiver?
This SFP module supports a maximum data transfer rate of 1 Gbit/s (Gigabit per second). It utilizes Gigabit Ethernet technology and 1000Base-CWDM network technology to deliver high-speed connectivity for optical and data networking applications, providing reliable performance for bandwidth-intensive tasks.
How far can this SFP module transmit data over fiber?
The Ortronics Cyan SFP Module supports a maximum distance of 80 km (approximately 49.71 miles) over single-mode fiber. This extended reach makes it suitable for connecting network equipment across metropolitan areas or between geographically dispersed sites without requiring signal repeaters.
What type of connector does this SFP module use?
This module features an LC duplex connector. The LC connector is a small form factor connector commonly used in fiber optic networking for its reliable performance and secure connections. The duplex configuration supports both transmit and receive functions over a single port.
