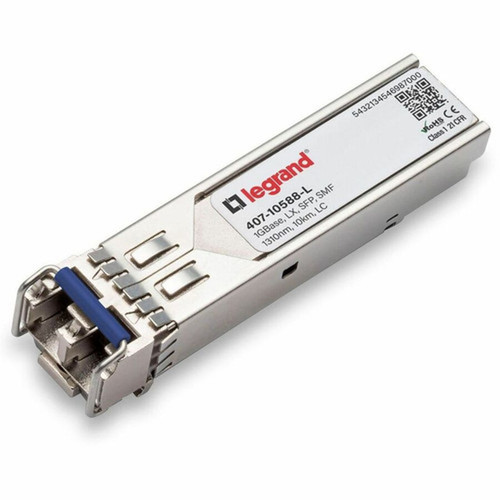

Ortronics 407-10588-A Dell Compatible SFP Module - 1G LC Duplex 1000Base-LX Singlemode 10 km
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This SFP module operates on the 1000Base-LX standard, which is optimized for long-wavelength (1310 nm) transmission over single-mode fiber. It achieves a maximum supported distance of 10 kilometers (6.21 miles), enabling network segments to span across buildings or campuses without intermediate repeaters. The module's electrical interface complies with Gigabit Ethernet specifications, ensuring interoperability with a wide range of SFP-enabled switches, routers, and media converters.
The physical design adheres to the SFP MSA (Multi-Source Agreement) for dimensions and electrical characteristics, guaranteeing mechanical fit and functional compatibility. It includes digital diagnostics monitoring (DDM) capabilities for real-time performance tracking, though specific monitoring features should be verified with the equipment manufacturer. The module is hot-pluggable, allowing installation or replacement without powering down the network device, minimizing downtime during maintenance or upgrades.
Key Product Advantages
This Ortronics SFP module offers several advantages for network deployments requiring extended reach and high reliability. Its compatibility with Dell equipment reduces integration risks and simplifies procurement for organizations standardized on Dell networking solutions. The use of single-mode fiber with 1000Base-LX technology provides superior distance performance compared to multimode alternatives, making it cost-effective for long-haul connections.
Extended Network Reach
Supports distances up to 10 km, eliminating the need for additional signal boosters or repeaters in metropolitan area networks.
- Ideal for campus-wide links
- Reduces infrastructure complexity
High-Speed Data Integrity
Delivers 1 Gbit/s throughput with minimal latency and signal degradation, ensuring consistent performance for data-intensive applications.
- Suitable for VoIP and video streaming
- Maintains data integrity over long distances
Deployment / Use Cases
This SFP module is deployed in scenarios where fiber optic connectivity is required to bridge network segments over medium to long distances. Common use cases include connecting switches between different buildings in a corporate campus, linking data center racks across floors, or extending network backbones in educational or healthcare facilities.
It is particularly valuable in environments where electrical interference, security, or distance limitations make copper cabling impractical. The module can also be used in point-to-point links for telecommunications, internet service provider (ISP) networks, or any application demanding high bandwidth and low signal loss over fiber optic media.
Data Center Interconnects
Connect core switches to distribution layers or link server racks across data hall aisles, leveraging single-mode fiber for future-proof scalability.
Enterprise Network Backbone
Extend Gigabit Ethernet backbone segments between office buildings or remote sites, ensuring reliable connectivity for critical business operations.
Physical Profile
The module features a compact SFP form factor with dimensions of 0.53" (13.40 mm) in width, 0.33" (8.50 mm) in height, and 2.23" (56.65 mm) in depth. This small size allows high-density deployment in network equipment with limited slot space. The build quality includes RoHS-compliant materials, ensuring environmental safety and regulatory adherence. The module's robust construction supports reliable operation in standard commercial temperature ranges, typical for indoor networking environments.
- Width
- 0.53" (13.40 mm)
- Depth
- 2.23" (56.65 mm)
- Height
- 0.33" (8.50 mm)
Highlights
- Dell-compatible SFP module for seamless integration into existing network infrastructure.
- Supports 1000Base-LX technology with a data transfer rate of 1 Gbit/s over single-mode fiber.
- LC duplex connector provides secure optical connections for high-performance networking.
- Maximum distance of 10 km (6.21 miles) enables long-haul links without repeaters.
- Hot-pluggable design allows installation without network downtime.
- RoHS compliant and environmentally friendly, meeting global regulatory standards.
- Lifetime warranty ensures long-term reliability and support.
- Compact SFP form factor fits high-density switches and routers.
Specifications
| Specifications | |
|---|---|
| Manufacturer | Legrand Group |
| Manufacturer Part Number | 407-10588-A |
| Brand Name | Approved Networks |
| Product Name | Dell SFP Module |
| Product Type | SFP |
| Technical Information | |
| Application/Usage | Optical Network,Data Networking |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC Duplex 1000Base-LX Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-LX |
| Maximum Distance Supported | 10 km (6.21 Mile) |
| Maximum Data Transfer Rate | 1 Gbit/s |
| Physical Characteristics | |
| Height | 0.33" (8.50 mm) |
| Width | 0.53" (13.40 mm) |
| Depth | 2.23" (56.65 mm) |
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What is the maximum distance this SFP module supports?
This Ortronics SFP module supports a maximum distance of 10 kilometers (6.21 miles) over single-mode fiber optic cable. This reach makes it suitable for connecting network segments across buildings or campuses without requiring additional signal amplification equipment.
Is this SFP module compatible with Dell networking equipment?
Yes, this module is designed as a Dell-compatible SFP transceiver. It adheres to the SFP MSA standards and is tested for interoperability with Dell switches and routers that have SFP slots, ensuring reliable performance in Dell-based network environments.
What type of fiber optic cable should I use with this module?
This module requires single-mode fiber optic cable with LC duplex connectors. Single-mode fiber is optimized for long-distance transmission with minimal signal loss, and the LC duplex connector ensures proper alignment and connectivity for the 1000Base-LX network technology.
What is the data transfer rate of this SFP module?
The module supports a maximum data transfer rate of 1 Gbit/s, which aligns with Gigabit Ethernet standards. This speed is sufficient for high-bandwidth applications such as data backups, video streaming, and large file transfers over fiber optic networks.
