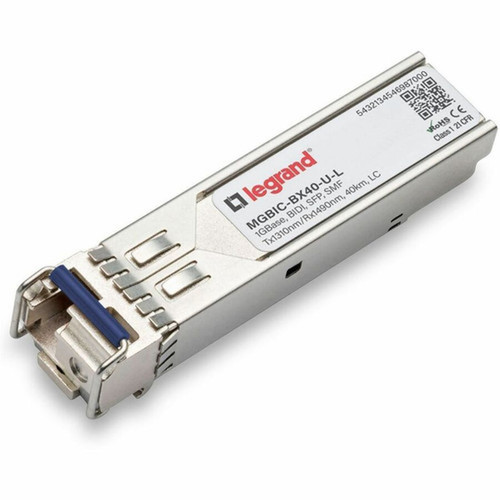

Ortronics MGBIC-BX40-U-A Extreme SFP Module - 1Gbps Gigabit Ethernet - LC Duplex 1000Base-BX - Single-mode Fiber - 40 km Reach
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This SFP module operates on Gigabit Ethernet standards, utilizing 1000Base-BX technology for bidirectional communication over a single strand of single-mode fiber. The LC duplex connector ensures precise optical alignment, while the module's design supports DOM (Digital Optical Monitoring) for real-time performance tracking.
With a maximum reach of 40 km, it enables long-distance network links without signal degradation. The module is compliant with industry SFP MSA standards, ensuring interoperability with compatible networking hardware from various vendors.
Key Product Advantages
The Ortronics Extreme SFP module offers several advantages for network deployments requiring reliable, high-speed fiber connectivity.
Long-Distance Performance
Supports links up to 40 km, ideal for connecting remote sites or extending network backbones without intermediate equipment.
- 40 km reach over single-mode fiber
- Maintains signal integrity over long distances
Gigabit Ethernet Speed
Delivers full Gigabit Ethernet throughput at 1 Gbit/s, ensuring fast data transfer for bandwidth-intensive applications.
- 1000Base-BX technology
- 1 Gbit/s data transfer rate
Industry-Standard Compatibility
Designed to work with SFP slots in switches and routers from major networking vendors, providing flexible deployment options.
- SFP MSA compliant
- Hot-pluggable for easy installation
Deployment / Use Cases
This SFP module is suited for various networking scenarios where reliable, high-speed fiber connectivity is required over medium to long distances.
Common use cases include connecting network switches between buildings in a campus environment, linking data center equipment across floors, or establishing point-to-point links for service provider networks. Its single-mode fiber support makes it ideal for applications where signal loss must be minimized over extended runs.
Enterprise Network Backbone
Extend Gigabit Ethernet connections between switches or routers in large office complexes or educational campuses.
Data Center Interconnects
Connect servers, storage, or networking gear across data hall aisles or between data center facilities.
Physical Profile
The module has a compact form factor with dimensions of 0.53" (13.40 mm) width, 0.33" (8.50 mm) height, and 2.23" (56.60 mm) depth. This small size allows high-density deployment in networking equipment with multiple SFP slots. The module is hot-pluggable, enabling installation or replacement without powering down the host device.
- Width
- 0.53" (13.40 mm)
- Depth
- 2.23" (56.60 mm)
- Height
- 0.33" (8.50 mm)
Highlights
- 1 Gbit/s Gigabit Ethernet speed with 1000Base-BX technology
- LC duplex connector for reliable single-mode fiber connections
- Maximum reach of 40 km (24.85 miles) for long-distance links
- Single-mode fiber support for minimal signal loss over extended runs
- Hot-pluggable SFP form factor for easy installation and maintenance
- Suitable for optical and data networking applications
- Compliant with SFP MSA standards for broad compatibility
- Environmentally friendly with RoHS compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Legrand Group |
| Manufacturer Part Number | MGBIC-BX40-U-A |
| Brand Name | Approved Networks |
| Product Name | Extreme SFP Module |
| Product Type | SFP |
| Technical Information | |
| Application/Usage | Optical Network,Data Networking |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC Duplex 1000Base-BX Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-BX |
| Maximum Distance Supported | 40 km (24.85 Mile) |
| Maximum Data Transfer Rate | 1 Gbit/s |
| Physical Characteristics | |
| Height | 0.33" (8.50 mm) |
| Width | 0.53" (13.40 mm) |
| Depth | 2.23" (56.60 mm) |
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What is the maximum distance this SFP module supports?
This Ortronics SFP module supports a maximum distance of 40 km (24.85 miles) over single-mode fiber. This reach makes it suitable for connecting network equipment across buildings, campuses, or other medium to long-distance scenarios without signal degradation.
What type of connector does this SFP module use?
The module uses an LC duplex connector. This connector type is common in fiber optic networking for its small form factor and reliable performance, ensuring precise optical alignment for single-mode fiber connections.
What is the data transfer rate of this SFP module?
This SFP module delivers a maximum data transfer rate of 1 Gbit/s, operating on Gigabit Ethernet standards with 1000Base-BX technology. This provides full Gigabit throughput for bandwidth-intensive network applications.
Is this SFP module compatible with single-mode or multimode fiber?
This module is designed for single-mode fiber. Single-mode fiber supports longer distances with less signal loss compared to multimode, making this module ideal for links up to 40 km where signal integrity is critical.
