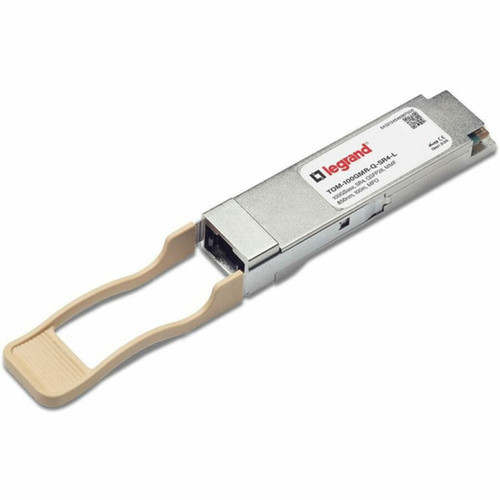

Ortronics TOM-100GMR-Q-SR4-A Infinera QSFP28 Module - 100GBase-SR4 MPO/MTP 100GbE Multi-mode Fiber 0. 10 km
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This transceiver operates on the 100GBase-SR4 protocol, which utilizes parallel multi-mode fiber lanes to achieve full 100 Gbit/s throughput. The module supports optical fiber media exclusively and is optimized for multi-mode fiber deployments, making it ideal for intra-building or data center interconnects where high bandwidth and low latency are critical.
The physical design conforms to the QSFP28 MSA (Multi-Source Agreement) specifications, ensuring mechanical and electrical compatibility with standard QSFP28 ports. With a compact footprint of 0.33" x 0.72" x 4.72", it fits seamlessly into high-density switch and router ports without requiring additional rack space.
Key Product Advantages
This Ortronics QSFP28 module delivers essential advantages for modern high-speed network infrastructure. Its 100GBase-SR4 implementation provides a cost-effective path to 100GbE without sacrificing reliability or performance.
High-Density Connectivity
The MPO/MTP connector supports multiple fiber strands in a single interface, enabling efficient cabling in space-constrained network racks and reducing physical clutter.
- Single MPO/MTP port
- Designed for high-density switches
- Reduces cable management complexity
Optimized for Short Reach
With a maximum supported distance of 0.10 km, this module is purpose-built for data center top-of-rack switching, server interconnects, and intra-building backbone links.
- 0.10 km reach over multi-mode fiber
- Ideal for data center environments
- Minimizes latency for critical applications
Deployment / Use Cases
This transceiver is primarily deployed in enterprise and data center networks where 100GbE uplinks are required between switches, routers, or servers. Its 100GBase-SR4 technology makes it suitable for aggregating multiple 10GbE or 25GbE links into a high-bandwidth backbone.
Common use cases include connecting leaf-spine architecture switches, providing high-speed interconnects for storage arrays and hyper-converged infrastructure, and upgrading existing 40GbE links to 100GbE without replacing fiber plant. The multi-mode fiber support and short reach characteristics make it particularly effective within a single data hall or building campus.
Physical Profile
The module measures 0.33" in height, 0.72" in width, and 4.72" in depth, conforming to the standard QSFP28 form factor. This compact design allows for high port density in network equipment. The housing is constructed from materials compliant with RoHS environmental standards, ensuring safe operation and disposal.
- Width
- 0.72" (18.35 mm)
- Depth
- 4.72" (119.90 mm)
- Height
- 0.33" (8.50 mm)
Highlights
- QSFP28 form factor optical transceiver for 100 Gigabit Ethernet networks
- Implements 100GBase-SR4 standard with 100 Gbit/s maximum data transfer rate
- MPO/MTP connector interface for high-density fiber optic connections
- Supports multi-mode optical fiber media with 0.10 km maximum reach
- Hot-pluggable design for easy installation and replacement without downtime
- Compact dimensions: 0.33" H x 0.72" W x 4.72" D (8.50 mm x 18.35 mm x 119.90 mm)
- RoHS compliant and environmentally friendly construction
- Backed by a lifetime limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Legrand Group |
| Manufacturer Part Number | TOM-100GMR-Q-SR4-A |
| Brand Name | Approved Networks |
| Product Name | Infinera QSFP28 Module |
| Product Type | QSFP28 |
| Technical Information | |
| Application/Usage | Optical Network,Data Networking |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | MPO/MTP |
| Interfaces/Ports Details | 1 x MPO/MTP 100GBase-SR4 Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Ethernet Technology | 100 Gigabit Ethernet |
| Network Technology | 100GBase-SR4 |
| Maximum Distance Supported | 0.10 km (0.06 Mile) |
| Maximum Data Transfer Rate | 100 Gbit/s |
| Physical Characteristics | |
| Height | 0.33" (8.50 mm) |
| Width | 0.72" (18.35 mm) |
| Depth | 4.72" (119.90 mm) |
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What type of connector does this QSFP28 module use?
This Ortronics QSFP28 module uses an MPO/MTP connector interface. This connector type supports multiple fiber strands in a single physical interface, making it ideal for high-density 100GbE applications where space efficiency is important. The MPO/MTP design ensures reliable optical alignment and secure connections in data center environments.
What is the maximum distance this transceiver supports?
The module supports a maximum distance of 0.10 km (approximately 0.06 miles) over multi-mode fiber optic cable. This reach is characteristic of 100GBase-SR4 technology and makes the transceiver suitable for short-reach applications within data centers, server rooms, or between buildings on a campus network.
What type of fiber is compatible with this module?
This QSFP28 module is designed for use with multi-mode optical fiber. It does not support single-mode fiber. The 100GBase-SR4 technology is optimized for multi-mode deployments, which are common in data center and enterprise environments for distances up to 0.10 km.
What is the data transfer rate of this optical transceiver?
The module delivers a maximum data transfer rate of 100 Gbit/s (100 gigabits per second). This full duplex bandwidth is achieved through the 100GBase-SR4 protocol, which utilizes parallel fiber lanes to support high-speed data transmission for demanding network applications.
