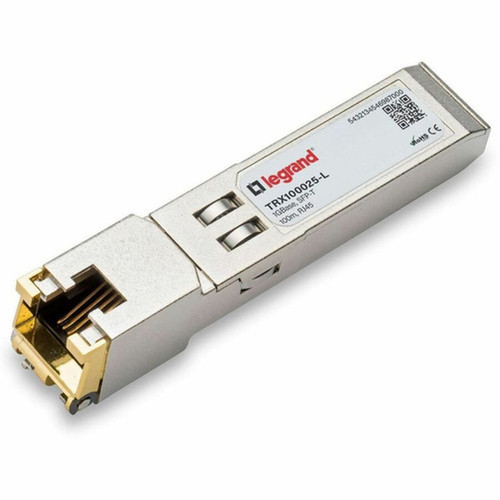

Ortronics TRX100025-A Infinera SFP Copper Module - 1 x RJ-45 1000Base-TX Gigabit Ethernet - 0. 10 km (0. 06 Mile) Reach
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This SFP module operates on 1000Base-TX technology, delivering full Gigabit Ethernet speeds through a single RJ-45 port. It is optimized for twisted pair copper cabling, ensuring robust signal integrity and minimal latency for data-intensive applications.
The module supports a maximum data transfer rate of 1 Gbit/s, making it suitable for high-speed network backbones, server connections, and uplink scenarios. Its environmental compliance with RoHS standards underscores a commitment to sustainable manufacturing practices.
Key Product Advantages
The Ortronics TRX100025-A offers distinct advantages for network deployments requiring reliable copper connectivity. Its design prioritizes ease of integration and consistent performance in diverse networking environments.
High-Speed Copper Connectivity
Delivers 1 Gbit/s throughput over twisted pair cabling, enabling fast data transfers without the need for fiber infrastructure.
- 1000Base-TX technology
- RJ-45 connector compatibility
- Up to 0.10 km reach
Compact and Compatible
The SFP form factor ensures broad compatibility with existing network hardware, facilitating straightforward upgrades and replacements.
- Standard SFP dimensions
- Hot-pluggable design
- Low power consumption
Deployment / Use Cases
This SFP copper module is ideal for extending Gigabit Ethernet networks over copper cabling where fiber optic runs are impractical or cost-prohibitive. It serves as a reliable solution for connecting switches, routers, and servers within data centers, office buildings, and industrial settings.
Common use cases include uplink connections between network switches, server-to-switch links in rack environments, and backbone segments in enterprise networks. Its 0.10 km reach supports medium-distance runs typical in campus and building layouts.
Data Center Interconnects
Use for connecting top-of-rack switches to aggregation layers over existing copper infrastructure, maintaining high throughput without re-cabling.
Office Network Upgrades
Deploy in office environments to upgrade network segments to Gigabit speeds, leveraging installed twisted pair cabling for cost-effective performance improvements.
Physical Profile
The module measures 0.33" (8.50 mm) in height, 0.53" (13.40 mm) in width, and 1.65" (41.80 mm) in depth, conforming to standard SFP dimensions for easy integration into compatible slots. Its compact design minimizes space usage in densely populated network equipment, while the robust construction ensures reliable operation in varied environmental conditions.
- Width
- 0.53" (13.40 mm)
- Depth
- 1.65" (41.80 mm)
- Height
- 0.33" (8.50 mm)
Highlights
- SFP copper module with RJ-45 connector for Gigabit Ethernet
- Supports 1000Base-TX technology for 1 Gbit/s data transfer rates
- Maximum reach of 0.10 km (0.06 mile) over twisted pair cabling
- Hot-pluggable design for easy installation and maintenance
- Compact dimensions: 0.33" H x 0.53" W x 1.65" D
- RoHS compliant for environmentally responsible manufacturing
- Ideal for data networking applications in enterprise and data center environments
- Compatible with SFP slots in switches, routers, and network interface cards
Specifications
| Specifications | |
|---|---|
| Manufacturer | Legrand Group |
| Manufacturer Part Number | TRX100025-A |
| Brand Name | Approved Networks |
| Product Name | Infinera SFP Module |
| Product Type | SFP |
| Technical Information | |
| Application/Usage | Data Networking |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | RJ-45 |
| Interfaces/Ports Details | 1 x RJ-45 1000Base-TX Network |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-TX |
| Maximum Distance Supported | 0.10 km (0.06 Mile) |
| Maximum Data Transfer Rate | 1 Gbit/s |
| Physical Characteristics | |
| Height | 0.33" (8.50 mm) |
| Width | 0.53" (13.40 mm) |
| Depth | 1.65" (41.80 mm) |
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
FAQ
What type of connector does this SFP module use?
This SFP module uses an RJ-45 connector, which is standard for copper Ethernet connections. It supports twisted pair cabling, making it compatible with common network infrastructure without requiring special adapters or fiber optic terminations.
What is the maximum data transfer rate supported?
The module supports a maximum data transfer rate of 1 Gbit/s using 1000Base-TX technology. This delivers full Gigabit Ethernet performance, suitable for high-speed network segments, server links, and bandwidth-intensive applications.
How far can this SFP module transmit data over copper?
It supports a maximum distance of 0.10 km (0.06 mile) over twisted pair cabling. This reach is ideal for medium-distance runs within buildings, data centers, or campus environments, providing reliable connectivity without signal degradation.
Is this SFP module hot-pluggable?
Yes, this SFP module is hot-pluggable, allowing for installation or replacement without powering down the networking equipment. This feature minimizes downtime and simplifies maintenance in live network environments.
