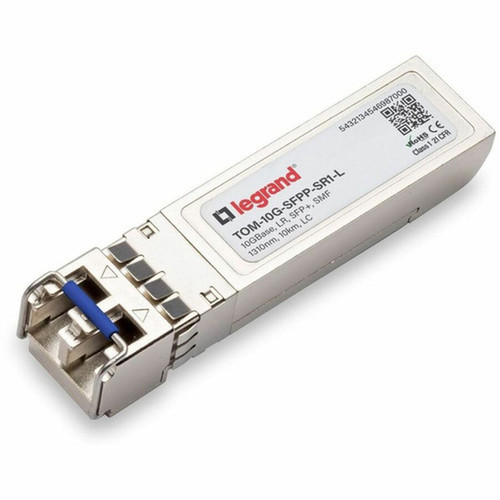

Ortronics TOM-10G-SFPP-SR1-A Infinera SFP+ Module - 10GBase-LR - LC Duplex - Single-mode - 10 km
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Engineered for precision, this SFP+ module operates on the 10GBase-LR standard, which uses 1310 nm wavelength for long-reach single-mode fiber connections. The LC duplex connector provides a secure and low-loss interface, essential for maintaining signal integrity in high-speed networks.
The module supports full-duplex communication and is hot-pluggable, allowing for installation and replacement without powering down the network device. It is built to meet industry standards for optical performance, ensuring interoperability with compliant SFP+ ports.
Key Product Advantages
This SFP+ module offers several advantages for network deployments requiring high-speed, long-distance connectivity. Its design focuses on reliability, efficiency, and ease of integration into existing network architectures.
Long-Reach Performance
With a reach of up to 10 kilometers, this module is ideal for connecting network segments across campuses, data centers, or metropolitan areas without signal degradation.
- 10 km maximum distance
- Single-mode fiber optimization
- Low attenuation design
High-Speed Data Transmission
Leveraging 10 Gigabit Ethernet technology, it supports data-intensive applications such as server clustering, storage area networks, and high-bandwidth video streaming.
- 10 Gbps throughput
- Full-duplex operation
- Low latency
Robust Build and Compliance
The module is RoHS compliant and backed by a lifetime warranty, reflecting its durability and adherence to environmental and quality standards.
- RoHS certified
- Lifetime warranty
- Industrial-grade components
Deployment / Use Cases
This SFP+ module is suited for various networking scenarios where high-speed, reliable fiber optic connections are required. Its compatibility with single-mode fiber makes it a go-to choice for long-distance links.
Common deployments include connecting switches and routers in enterprise networks, linking servers in data centers, and extending network reach in telecommunications infrastructure. It is also used in surveillance systems, educational campuses, and healthcare networks where data integrity over distance is critical.
Data Center Interconnects
Facilitate high-speed connections between racks or buildings within data centers, supporting cloud services and virtualization workloads.
Enterprise Network Backbone
Strengthen core network infrastructure by linking distribution switches across multiple floors or buildings, ensuring seamless data flow.
Physical Profile
The module features a compact design with dimensions of 0.55" (13.90 mm) in width, 0.50" (12.60 mm) in height, and 2.30" (58.40 mm) in depth. This small form factor allows for high-density installations in network switches and routers, maximizing port utilization without sacrificing performance.
- Width
- 0.55" (13.90 mm)
- Depth
- 2.30" (58.40 mm)
- Height
- 0.50" (12.60 mm)
Highlights
- SFP+ form factor for 10 Gigabit Ethernet networks
- 10GBase-LR technology with 10 Gbps data transfer rate
- LC duplex connector for single-mode fiber optic cables
- Maximum reach of 10 kilometers (6.21 miles)
- Hot-pluggable design for easy installation and maintenance
- RoHS compliant and environmentally friendly
- Lifetime limited warranty for long-term reliability
- Supports optical network and data networking applications
Specifications
| Specifications | |
|---|---|
| Manufacturer | Legrand Group |
| Manufacturer Part Number | TOM-10G-SFPP-SR1-A |
| Brand Name | Approved Networks |
| Product Name | Infinera SFP+ Module |
| Product Type | SFP+ |
| Technical Information | |
| Application/Usage | Optical Network,Data Networking |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC Duplex 10GBase-LR Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10GBase-LR |
| Maximum Distance Supported | 10 km (6.21 Mile) |
| Maximum Data Transfer Rate | 10 Gbit/s |
| Physical Characteristics | |
| Height | 0.50" (12.60 mm) |
| Width | 0.55" (13.90 mm) |
| Depth | 2.30" (58.40 mm) |
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What type of fiber optic cable does this SFP+ module support?
This module supports single-mode fiber optic cables, which are designed for long-distance transmission with low signal loss. Single-mode fiber uses a single wavelength of light, making it ideal for reaches up to 10 kilometers in 10GBase-LR applications.
What is the maximum data transfer rate of this module?
The module supports a maximum data transfer rate of 10 Gbit/s (10 gigabits per second) using 10 Gigabit Ethernet technology. This high-speed capability is suitable for bandwidth-intensive tasks like data center interconnects and enterprise network backbones.
How far can this SFP+ module transmit data?
It can transmit data up to 10 kilometers (approximately 6.21 miles) over single-mode fiber. This reach makes it effective for connecting network devices across campuses, between buildings, or in metropolitan area networks without requiring signal boosters.
Is this module hot-pluggable?
Yes, this SFP+ module is hot-pluggable, meaning it can be installed or removed from a compatible switch or router without powering down the equipment. This feature minimizes network downtime during maintenance or upgrades.
