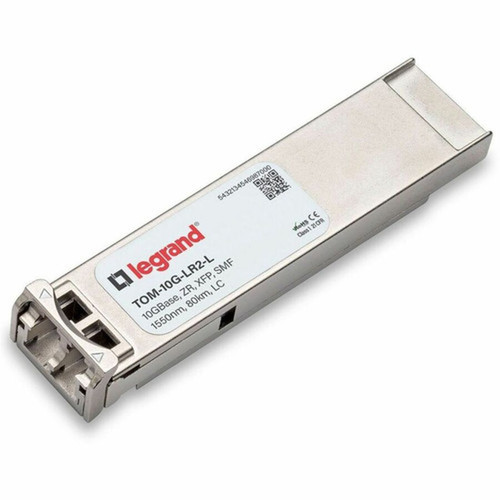

Ortronics TOM-10G-LR2-A Infinera XFP Module - 10GbE LC Duplex 10GBase-ZR Single-mode 80 km
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This XFP module operates on 10 Gigabit Ethernet technology, specifically 10GBase-ZR, which enables long-distance data transmission up to 80 kilometers. It uses single-mode fiber optic media, minimizing signal loss and supporting high-speed data transfers over extended distances.
The module's LC duplex connector provides a secure and efficient interface for optical fiber connections. With a data transfer rate of 10 Gbit/s, it handles demanding network traffic with ease, ensuring stable performance in data-intensive environments.
Key Product Advantages
This module offers significant advantages for network deployments requiring high-speed, long-reach connectivity. Its 10GBase-ZR technology ensures efficient data transmission over single-mode fiber, reducing latency and enhancing network reliability.
Long-Distance Performance
Supports data transmission up to 80 kilometers, ideal for connecting remote network segments without signal degradation.
- 80 km reach
- Single-mode fiber optimized
- Minimal signal loss
High-Speed Connectivity
Delivers 10 Gbit/s data transfer rates, meeting the demands of modern data centers and enterprise networks.
- 10 Gbit/s throughput
- 10 Gigabit Ethernet compatible
- Efficient data handling
Deployment / Use Cases
The Ortronics Infinera XFP Module is suitable for various optical and data networking scenarios. It excels in long-haul network connections, such as linking data centers across campuses or metropolitan areas, where high bandwidth and distance are critical.
Common use cases include backbone network infrastructure, telecommunications networks, and enterprise WAN connections. Its compatibility with single-mode fiber makes it a reliable choice for environments requiring durable performance and fast data transfers over miles.
Physical Profile
The module has a compact design with dimensions of 0.33" (8.40 mm) in height, 0.64" (16.30 mm) in width, and 3.07" (78 mm) in depth. This small form factor allows for easy installation in standard XFP slots, minimizing space requirements in network equipment.
- Width
- 0.64" (16.30 mm)
- Depth
- 3.07" (78 mm)
- Height
- 0.33" (8.40 mm)
Highlights
- 10GBase-ZR technology for up to 10 Gbit/s data transfer rates
- LC duplex connector for secure optical fiber connections
- Single-mode fiber support with up to 80 km reach
- Compact XFP form factor for easy integration
- RoHS compliant and environmentally friendly
- Lifetime limited warranty for long-term reliability
- Ideal for optical and data networking applications
- Minimizes signal loss over long distances
Specifications
| Specifications | |
|---|---|
| Manufacturer | Legrand Group |
| Manufacturer Part Number | TOM-10G-LR2-A |
| Brand Name | Approved Networks |
| Product Name | Infinera XFP Module |
| Product Type | XFP |
| Technical Information | |
| Application/Usage | Optical Network,Data Networking |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC Duplex 10GBase-ZR Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10GBase-ZR |
| Maximum Distance Supported | 80 km (49.71 Mile) |
| Maximum Data Transfer Rate | 10 Gbit/s |
| Physical Characteristics | |
| Height | 0.33" (8.40 mm) |
| Width | 0.64" (16.30 mm) |
| Depth | 3.07" (78 mm) |
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What type of connector does this XFP module use?
This module uses an LC duplex connector, which is standard for optical fiber connections. The LC connector provides a secure and efficient interface, ensuring reliable data transmission with minimal insertion loss in network setups.
What is the maximum distance supported by this module?
It supports a maximum distance of 80 kilometers (approximately 49.71 miles) over single-mode fiber optic cables. This long reach makes it suitable for connecting remote network segments without compromising data integrity or speed.
Is this module compatible with single-mode or multimode fiber?
This module is designed for single-mode fiber optic cables. Single-mode fiber uses a single wavelength of light to carry data over long distances, making it ideal for applications requiring high-speed transmission with minimal signal loss across extended reaches.
