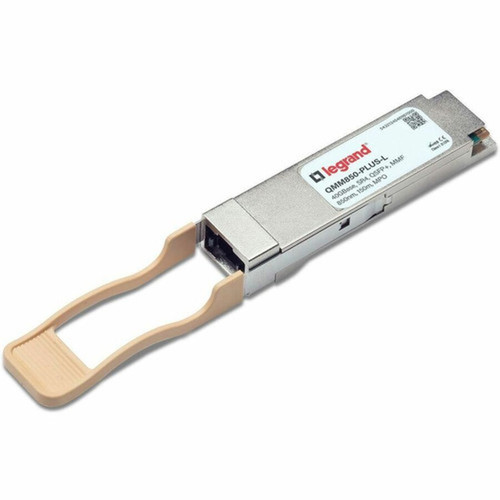

Ortronics QMM850-PLUS-A Ixia QSFP+ Module - MPO/MTP 40GBase-SR4 - 40GbE Multi-mode Fiber - 0. 15 km Reach
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Engineered for optical network and data networking applications, this transceiver operates at 850 nm wavelength, typical for short-reach multi-mode fiber deployments. It is built to handle high-bandwidth traffic with efficiency, minimizing power consumption and CPU utilization on connected devices.
The module's design supports hot-pluggable installation, allowing for easy upgrades and maintenance without network downtime. Its electrical interface complies with QSFP+ MSA specifications, ensuring interoperability with compliant host equipment.
Key Product Advantages
This QSFP+ module offers several advantages for network deployments requiring high-speed optical connectivity. Its 40GBase-SR4 technology provides a cost-effective solution for upgrading network infrastructure to 40GbE speeds without replacing existing multi-mode fiber cabling.
High-Speed Performance
Delivers 40 Gbit/s throughput, ideal for bandwidth-intensive applications like server clustering, storage area networks, and high-performance computing.
- 40 Gbit/s data transfer rate
- Low-latency transmission
- Efficient power utilization
Reliable Fiber Connectivity
Uses multi-mode fiber optic media for stable data transmission over short distances, reducing signal loss and electromagnetic interference.
- Multi-mode fiber compatibility
- MPO/MTP connector reliability
- 0.15 km reach for in-building use
Deployment / Use Cases
The Ortronics QMM850-PLUS-A is suited for various network environments where high-speed optical links are required. Its 0.15 km reach makes it ideal for connections within data centers, campus buildings, or enterprise offices.
Common use cases include linking top-of-rack switches to aggregation switches, connecting servers to network storage, and providing backbone links for high-bandwidth applications. The module's multi-mode fiber support aligns with existing cabling infrastructure in many facilities, simplifying upgrades.
Data Center Interconnects
Connect switches and servers within data center racks or across adjacent racks using multi-mode fiber patches.
Enterprise Network Backbones
Upgrade network cores to 40GbE for improved performance in video conferencing, large file transfers, and virtualized environments.
Physical Profile
The module has a compact form factor measuring 0.46 inches in height, 0.72 inches in width, and 2.79 inches in depth. This small size allows for high-density installations in network equipment, maximizing port utilization. The design includes a standard QSFP+ latch mechanism for secure insertion and extraction.
- Width
- 0.72" (18.35 mm)
- Depth
- 2.79" (70.90 mm)
- Height
- 0.46" (11.60 mm)
Highlights
- QSFP+ form factor optical transceiver module for 40 Gigabit Ethernet networks
- MPO/MTP connector supports 40GBase-SR4 multi-mode fiber optic connections
- 40 Gbit/s maximum data transfer rate for high-bandwidth applications
- 0.15 km (0.09 mile) maximum distance over multi-mode fiber
- Hot-pluggable design for easy installation and maintenance
- 850 nm wavelength operation typical for short-reach multi-mode deployments
- Complies with QSFP+ Multi-Source Agreement (MSA) specifications
- RoHS compliant and environmentally friendly
Specifications
| Specifications | |
|---|---|
| Manufacturer | Legrand Group |
| Manufacturer Part Number | QMM850-PLUS-A |
| Brand Name | Approved Networks |
| Product Name | Ixia QSFP+ Module |
| Product Type | QSFP+ |
| Technical Information | |
| Application/Usage | Optical Network,Data Networking |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | MPO/MTP |
| Interfaces/Ports Details | 1 x MPO/MTP 40GBase-SR4 Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Ethernet Technology | 40 Gigabit Ethernet |
| Network Technology | 40GBase-SR4 |
| Maximum Distance Supported | 0.15 km (0.09 Mile) |
| Maximum Data Transfer Rate | 40 Gbit/s |
| Physical Characteristics | |
| Height | 0.46" (11.60 mm) |
| Width | 0.72" (18.35 mm) |
| Depth | 2.79" (70.90 mm) |
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What type of connector does this QSFP+ module use?
This module uses an MPO/MTP connector, which is a multi-fiber push-on/pull-off connector commonly used for 40GBase-SR4 applications. It supports parallel optics over multi-mode fiber, enabling high-density connections in data center and enterprise environments.
What is the maximum distance supported by this optical transceiver?
The maximum supported distance is 0.15 kilometers (approximately 0.09 miles) over multi-mode fiber optic cable. This reach is typical for 40GBase-SR4 technology and is suitable for short-distance connections within buildings or data centers.
Is this module compatible with single-mode or multi-mode fiber?
This module is designed for multi-mode fiber optic cable. It operates at 850 nm wavelength, which is standard for multi-mode fiber deployments. It does not support single-mode fiber, which is used for longer-distance applications.
