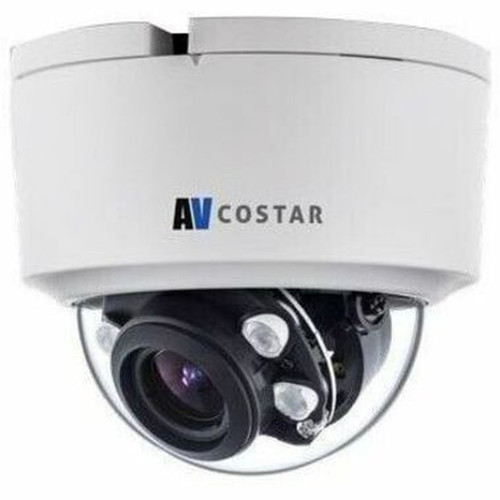

Arecont Vision AV02CID-200 ConteraIP 2. 1MP Indoor Dome Network Camera - Full HD 1080p - 66ft IR Night Vision - White - PoE/DC
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera supports modern video compression formats including H.265, H.264, and MJPEG, allowing flexible bandwidth and storage optimization. The varifocal lens provides a 2.7mm to 13.5mm focal range with 5x optical zoom, enabling precise framing adjustment during installation without compromising image clarity.
Advanced imaging features include wide dynamic range (WDR) for challenging lighting conditions, built-in mechanical ICR for true day/night operation, and backlight compensation (BLC) to maintain subject visibility. The camera also incorporates privacy masking, motion detection, and multi-view streaming capabilities for comprehensive surveillance management.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The AV02CID-200 combines essential surveillance features with practical deployment benefits for IT and security teams. Its 66-foot infrared night vision with four IR LEDs ensures reliable monitoring in low-light conditions, while the surface-mount dome design simplifies installation on ceilings or walls.
Enhanced Low-Light Performance
Infrared illumination reaches 66 feet (20.12 meters) with automatic ICR switching for consistent 24/7 surveillance regardless of lighting conditions.
- 4 IR LEDs for even illumination
- Built-in mechanical ICR filter
- Automatic day/night transition
Installation Flexibility
Power over Ethernet (PoE) support reduces wiring complexity, while the varifocal lens allows field adjustment without replacing hardware.
- Single-cable PoE deployment
- 2.7-13.5mm focal range adjustment
- Surface mount compatibility
Compliance & Reliability
TAA compliance ensures government procurement eligibility, while RoHS, REACH, and WEEE environmental standards demonstrate responsible manufacturing.
- TAA Compliant for government contracts
- RoHS/REACH/WEEE compliant
- Taiwan manufacturing origin
Deployment / Use Cases
This indoor dome camera is ideal for environments requiring discreet yet capable surveillance with clear evidence-grade video. The white dome housing blends seamlessly into commercial interiors while providing vandal-resistant protection for the camera assembly.
Typical applications include retail point-of-sale monitoring, office corridor surveillance, school hallway security, healthcare facility entrances, and hospitality common areas. The camera's memory card storage option provides local recording redundancy when network connectivity is interrupted or as supplemental storage alongside network video recorders.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Commercial Retail Security
Monitor cash registers, entrances, and stock rooms with 1080p clarity and motion detection alerts for loss prevention teams.
Institutional Facility Monitoring
Deploy in schools, offices, or healthcare facilities where discreet appearance matters alongside reliable 24/7 surveillance capabilities.
Physical Profile
The dome measures 3.65 inches (92.71 mm) in height with a 4.52-inch (114.81 mm) diameter, presenting a compact footprint suitable for ceiling installations. Weighing approximately 12.64 ounces (358.34 grams), the camera maintains a low profile while housing the varifocal lens mechanism and imaging components. The white finish coordinates with standard interior ceilings and walls.
- Height
- 3.65" (92.71 mm)
- Weight
- 12.64 oz (358.34 g)
- Length
- 2.7 mm (0.11")
Highlights
- 2.1-megapixel CMOS sensor delivers Full HD 1080p video at 60 fps
- 66-foot (20.12 m) infrared night vision with 4 IR LEDs for 24/7 monitoring
- Varifocal lens (2.7-13.5mm) with 5x optical zoom for flexible framing
- Power over Ethernet (PoE) and 12V DC power options for installation flexibility
- H.265, H.264, and MJPEG video compression for bandwidth efficiency
- Wide dynamic range (WDR) and backlight compensation (BLC) for challenging lighting
- Surface-mount white dome design for discreet indoor installation
- TAA compliant for government and institutional procurement eligibility
Specifications
| Specifications | |
|---|---|
| Manufacturer | Arecont Vision |
| Manufacturer Part Number | AV02CID-200 |
| Brand Name | Arecont Vision |
| Product Line | ConteraIP |
| Product Model | AV02CID-200 |
| Product Name | ConteraIP Indoor Dome Megapixel Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Night Vision | Yes |
| Night Vision Distance | 66 ft (20.12 m) |
| Night Vision Type | Infrared |
| Number of IR LEDs | 4 |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/2.8" |
| Color Supported | Color |
| Field of View | H-FOV = 28°-100°, V-FOV = 16°-54° |
| Effective Camera Resolution | 2.1 Megapixel |
| Video | |
| Video Formats | H.265,H.264,MJPEG |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 60 fps |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 2.7 mm (0.11") |
| Maximum Focal Length | 13.5 mm (0.53") |
| Lens Included | Yes |
| Maximum Aperture | f/1.4 |
| Optical Zoom | 5x |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Power Source Type | PoE,DC |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Mount Type | Surface Mount |
| Form Factor | Dome |
| Height | 3.65" (92.71 mm) |
| Diameter | 4.52" (114.81 mm) |
| Weight (Approximate) | 12.64 oz (358.34 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | 14°F (-10°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Day/Night,Wide Dynamic Range,Built-in Mechanical ICR,Privacy Masking,Motion Detection,Multi-view Stream,Back Light Compensation (BLC),White Balance,Gain Control,Mirror,Password Protection |
| Indoor/Outdoor | Indoor |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
User Manual
FAQ
What is the maximum video resolution of this camera?
The Arecont Vision AV02CID-200 captures 2.1-megapixel video at a maximum resolution of 1920 x 1080 Full HD. This provides clear, detailed imagery suitable for identification purposes in surveillance applications. The camera supports this resolution at up to 60 frames per second for smooth motion representation.
How far does the night vision reach?
The camera's infrared night vision effectively illuminates subjects up to 66 feet (20.12 meters) away using four integrated IR LEDs. This range, combined with the built-in mechanical ICR filter, ensures reliable low-light performance for 24/7 surveillance in indoor environments with varying lighting conditions.
What power options are available?
This camera supports both Power over Ethernet (PoE) and 12V DC power inputs. PoE allows installation with a single network cable that carries both data and power, simplifying deployment. The dual power options provide flexibility for different infrastructure setups and backup power scenarios.
Can the lens be adjusted after installation?
Yes, the varifocal lens offers a 2.7mm to 13.5mm focal range with 5x optical zoom, allowing field adjustment during or after installation. This enables precise framing without replacing the lens or camera, making it ideal for installations where viewing angles need optimization after mounting.
Is this camera suitable for government procurement?
Yes, the AV02CID-200 is TAA (Trade Agreements Act) compliant, making it eligible for government and institutional procurement in the United States. This compliance ensures the camera meets specific sourcing requirements for federal, state, and local government surveillance projects.
What video compression formats are supported?
The camera supports H.265, H.264, and MJPEG compression formats. H.265 provides efficient bandwidth utilization, H.264 offers broad compatibility with existing systems, and MJPEG delivers individual high-quality frames. This flexibility allows optimization for network bandwidth, storage capacity, and playback requirements.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
