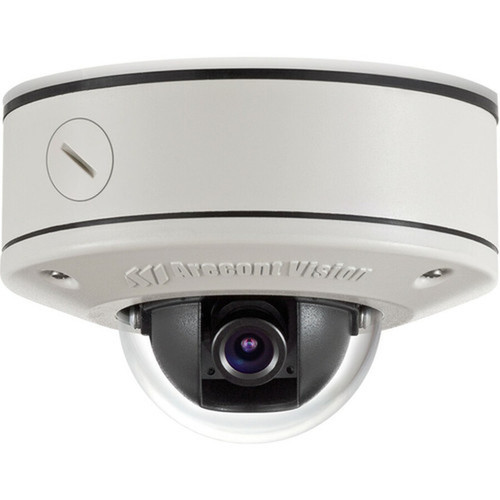

Arecont Vision AV3456DN-S MicroDome 3MP Network Camera - Color Dome - 2048 x 1536 - 41 fps - Outdoor - Vandal Resistant
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This network camera utilizes a 1/3.2" CMOS image sensor that balances power efficiency with high-definition video capture. The camera supports multiple video compression formats including H.264, MPEG-4, and MJPEG, allowing flexible integration with various video management systems.
Network connectivity is provided through Fast Ethernet with comprehensive protocol support including RTSP, RTP/TCP, RTP/UDP, HTTP, TFTP, and DHCP for straightforward deployment in existing network infrastructures.
This section brings together practical product details such as Image Sensor Type, Image Sensor Size, Color Supported, Video Formats, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The AV3456DN-S combines high-resolution imaging with robust physical protection, making it suitable for challenging surveillance environments where both image quality and durability are critical.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Enhanced Security Features, Environmental Resilience.
Enhanced Security Features
Advanced motion detection capabilities enable proactive monitoring, while ePTZ functionality provides digital pan/tilt/zoom control without mechanical movement.
- Motion Detection
- ePTZ Functionality
- Day/Night Operation
Environmental Resilience
With IP66 weatherproof rating and IK10 impact resistance, this camera maintains operation through various weather conditions and physical challenges.
- Weather Proof
- Vandal Resistant
- Tamper Resistant
Deployment / Use Cases
This outdoor-rated dome camera is ideal for perimeter security, parking lot monitoring, building entrances, and other exterior locations requiring reliable surveillance. The surface mount design facilitates installation on walls, ceilings, or other flat surfaces.
The camera's combination of high-resolution imaging, environmental protection, and network connectivity makes it suitable for commercial, industrial, and institutional security applications where 24/7 monitoring is essential.
This section brings together practical product details such as Image Sensor Type, Image Sensor Size, Color Supported, Video Formats, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Commercial Security
Deploy for retail storefronts, office building perimeters, and parking facilities where clear identification and environmental durability are priorities.
Industrial Monitoring
Use in manufacturing facilities, warehouses, and logistics centers where both image quality and physical protection against environmental factors are required.
Physical Profile
The compact dome design measures 4" in diameter and 3.10" in height, presenting a discreet profile while housing robust surveillance capabilities. Weighing approximately 11.20 ounces, the camera maintains a manageable footprint for various mounting scenarios. The included 3/8" NPT with 1/2" NPT adapter provides flexible installation options for different mounting requirements.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 3.10" (78.74 mm), 11.20 oz (317.51 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Height
- 3.10" (78.74 mm)
- Weight
- 11.20 oz (317.51 g)
- Length
- 4 mm (0.16")
What's in the Box
The package includes everything needed for immediate deployment of this surveillance solution.
Highlights
- 3-megapixel resolution delivers 2048x1536 video clarity
- 41 fps frame rate ensures smooth real-time monitoring
- Outdoor-rated with IP66 weatherproof protection
- Vandal-resistant IK10-rated dome housing
- Fixed 4mm lens with 63° field of view
- Supports H.264, MPEG-4, and MJPEG video formats
- Motion detection and ePTZ functionality
- Fast Ethernet connectivity with comprehensive protocol support
- Surface mount design for flexible installation
- 3-year limited warranty for peace of mind
Specifications
| Specifications | |
|---|---|
| Manufacturer | Arecont Vision |
| Manufacturer Part Number | AV3456DN-S |
| Brand Name | Arecont Vision |
| Product Line | MicroDome |
| Product Model | AV3456DN |
| Product Name | MicroDome AV3456DN Network Camera |
| Product Type | Network Camera |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/3.2" |
| Color Supported | Color |
| Field of View | 63° |
| Effective Camera Resolution | 3 Megapixel |
| Video | |
| Video Formats | H.264,MPEG-4,MJPEG |
| Maximum Video Resolution | 2048 x 1536 |
| Maximum Frame Rate | 41 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 4 mm (0.16") |
| Lens Included | Yes |
| Lens Mount Type | M12-mount |
| Maximum Aperture | f/1.6 |
| Network & Communication | |
| Connectivity Technology | Wired |
| Ethernet Technology | Fast Ethernet |
| Protocols | RTSP,RTP/TCP,RTP/UDP,HTTP,TFTP,DHCP |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Maximum Power Consumption | 5.59 W |
| Physical Characteristics | |
| Mount Type | Surface Mount |
| Form Factor | Dome |
| Durability | Vandal Resistant,Tamper Resistant,Weather Proof |
| Height | 3.10" (78.74 mm) |
| Diameter | 4" (101.60 mm) |
| Weight (Approximate) | 11.20 oz (317.51 g) |
| Miscellaneous | |
| Features | Motion Detection,ePTZ,Day/Night |
| Indoor/Outdoor | Outdoor |
| Package Contents | MicroDome AV3456DN Network Camera 3/8" NPT w/ 1/2" NPT Adapter |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What resolution does this network camera support?
The Arecont Vision AV3456DN-S captures video at 3-megapixel resolution, specifically 2048 x 1536 pixels. This high-definition resolution provides clear, detailed imagery suitable for identification and monitoring applications in surveillance environments.
Is this camera suitable for outdoor installation?
Yes, this camera is designed for outdoor use with an IP66 weatherproof rating that protects against dust and water ingress. The vandal-resistant IK10-rated dome housing provides additional protection against physical impacts, making it suitable for exposed exterior locations.
What type of lens does this camera have?
This camera features a fixed 4mm lens with an M12 mount, providing a 63° field of view. The fixed lens design ensures consistent focus and eliminates the need for manual adjustment, while the wide aperture of f/1.6 enables good low-light performance.
What video compression formats are supported?
The camera supports three industry-standard video compression formats: H.264, MPEG-4, and MJPEG. This multi-format support allows flexible integration with various video management systems and network video recorders, optimizing bandwidth usage while maintaining image quality.
What networking protocols does this camera use?
The camera utilizes Fast Ethernet connectivity and supports multiple networking protocols including RTSP for streaming, RTP/TCP and RTP/UDP for transport, HTTP for web interface access, TFTP for firmware updates, and DHCP for automatic IP address assignment. This comprehensive protocol support ensures compatibility with most network infrastructures.
What advanced features does this camera include?
Beyond basic video capture, this camera includes motion detection capabilities for event-triggered recording, ePTZ (electronic pan/tilt/zoom) functionality for digital adjustment of the viewing area, and day/night operation that adapts to changing lighting conditions. These features enhance monitoring effectiveness without requiring additional hardware.
What display size or resolution is listed?
It features a display specification of 3 Megapixel, giving you clear visuals for work and media use.
