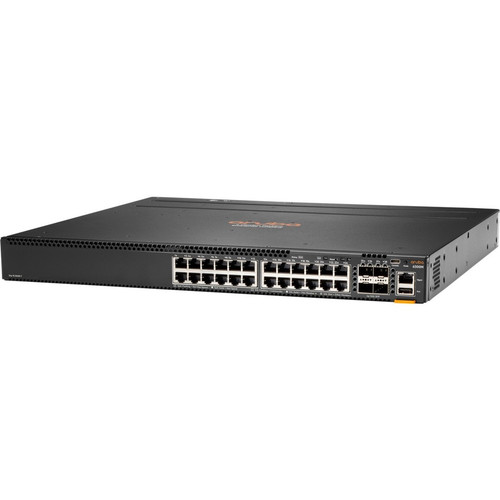

Aruba JL664AR 24-Port 1GbE Managed Switch with 4 SFP56 Uplinks - Layer 3 - 1U Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch operates at Layer 3, supporting advanced routing protocols for efficient traffic management across subnets. The 24 Gigabit Ethernet ports handle 10/100/1000Base-T connections, while the four 50 Gigabit Ethernet uplink ports use SFP56 slots for high-bandwidth backbone links. The switch supports modular expansion with four SFP slots, allowing for fiber optic or copper transceiver installations based on network requirements.
Power reliability is enhanced with a built-in power supply and support for redundant power configurations, minimizing downtime risks. The switch's manageable nature enables detailed network monitoring, configuration, and security policies through standard management interfaces. Its design ensures consistent performance in data-intensive environments, with robust hardware for sustained operation.
This section brings together practical product details such as Total Number of Network Ports, Network (RJ-45), Uplink Port, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This switch combines high port density with advanced features to support demanding network deployments. The inclusion of four SFP56 uplink ports provides substantial bandwidth for aggregation or backbone connections, reducing bottlenecks in high-traffic scenarios. Layer 3 capabilities allow for intelligent routing, improving network segmentation and security without external routers.
Scalable Connectivity
With 24 downlink ports and 4 uplink ports, the switch supports extensive device connections and network growth, ideal for office or data center expansions.
Management Flexibility
Full manageability enables tailored network policies, VLAN configurations, and performance monitoring, giving administrators precise control over network operations.
Rack-Optimized Design
The 1U rack-mountable form factor saves space and simplifies installation in standard racks, with dimensions designed for efficient airflow and cable routing.
Deployment / Use Cases
This switch is well-suited for medium to large business networks requiring reliable, high-speed connectivity and advanced management. Its port configuration and uplink capacity make it effective for access layer switching in office environments, connecting workstations, printers, and IP phones while aggregating traffic to core switches via the SFP56 uplinks.
In data center or server room deployments, the switch can serve as a top-of-rack unit, providing connectivity for servers and storage devices with the option for high-speed uplinks to distribution layers. The Layer 3 functionality supports inter-VLAN routing, making it useful for segmented networks in educational institutions, healthcare facilities, or corporate campuses where security and traffic isolation are priorities.
Physical Profile
The switch features a compact 1U rack-mountable design with dimensions of 1.73" (44 mm) height, 17.40" (442 mm) width, and 15.16" (385 mm) depth, fitting standard 19-inch racks. Its weight of approximately 11.97 lb (5430 g) ensures stable mounting without excessive load. The form factor includes ventilation for adequate cooling and front-facing ports for easy cable access, supporting efficient installation and maintenance in rack environments.
- Width
- 17.40" (442 mm)
- Depth
- 15.16" (385 mm)
- Height
- 1.73" (44 mm)
- Weight
- 11.97 lb (5430 g)
Highlights
- 24 Gigabit Ethernet ports for high-density device connections
- 4 SFP56 uplink ports supporting 50 Gigabit Ethernet for high-speed aggregation
- Layer 3 routing capabilities for scalable network design
- Fully manageable with advanced network control features
- Rack-mountable 1U form factor for space-efficient deployment
- Supports both twisted pair and optical fiber media types
- Redundant power supply support for enhanced reliability
- Stack port for easy network expansion and management
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | JL664AR |
| Brand Name | Aruba |
| Product Series | CX 6300 |
| Product Model | 6300M |
| Product Name | 24-port 1GbE and 4-port SFP56 Switch |
| Product Condition | Refurbished |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 24 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Modular | Yes |
| Stack Port | Yes |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet Network,4 x 50 Gigabit Ethernet Uplink |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet,50 Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,50GBase-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 4 |
| Network & Communication | |
| Layer Supported | 3 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.73" (44 mm) |
| Width | 17.40" (442 mm) |
| Depth | 15.16" (385 mm) |
| Weight (Approximate) | 11.97 lb (5430 g) |
FAQ
How many ports does this Aruba switch have?
This Aruba JL664AR switch has 24 Gigabit Ethernet ports for connecting devices like computers, printers, and IP phones, plus four SFP56 uplink ports for high-speed connections to other switches or network core equipment.
What are the uplink capabilities of this switch?
The switch includes four SFP56 uplink ports that support 50 Gigabit Ethernet, providing high-bandwidth links for aggregation or backbone connections. These uplinks use SFP slots, allowing for fiber optic or copper transceivers based on your network setup.
Does this switch support Layer 3 routing?
Yes, this switch operates at Layer 3, enabling advanced routing functions such as inter-VLAN routing and support for routing protocols. This allows for scalable network design and improved traffic management without needing a separate router.
Is this switch manageable?
Yes, it is a fully manageable switch, offering features like VLAN configuration, quality of service (QoS), security policies, and network monitoring through standard management interfaces. This provides administrators with precise control over network performance and security.
What is the form factor and rack compatibility?
The switch has a 1U rack-mountable form factor, designed to fit standard 19-inch server racks. Its dimensions are 1.73" height, 17.40" width, and 15.16" depth, making it space-efficient and easy to install in data center or office rack environments.
Does this switch support redundant power?
Yes, the switch supports redundant power supply configurations, enhancing reliability by allowing a backup power source to minimize downtime in case of a power supply failure. This feature is crucial for critical network deployments.
What uplink, SFP, fiber, or media support detail is listed?
The warranty or support detail listed is Yes, giving buyers a clearer picture of expected coverage after purchase.
