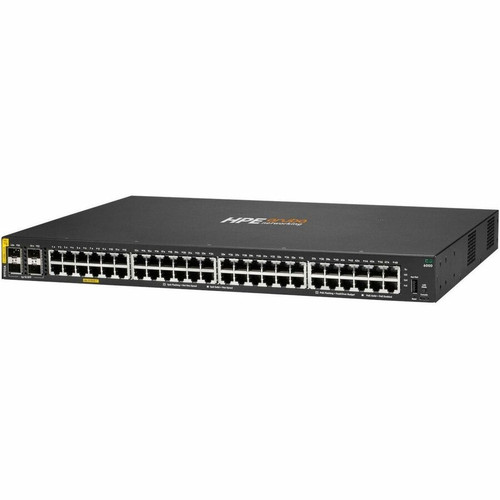

Aruba R9Y03A#ACD CX 6000 48G CL4 4SFP 740W Switch - 48-Port Gigabit PoE+ Managed Layer 3
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Aruba switch operates as a fully manageable Layer 3 device, enabling advanced routing, VLAN segmentation, and quality of service (QoS) features. The 48 Gigabit Ethernet ports auto-negotiate at 10/100/1000 Mbps, while the four SFP slots support 100/1000Base-X fiber connections for high-speed uplinks or long-distance runs. The switch achieves a maximum data transfer rate of 128 MB/s, facilitating efficient data flow across the network.
Power over Ethernet capabilities are central to its design, with a 740W budget that distributes up to 30W per port (IEEE 802.3at). The internal power supply accepts 120-230V AC input, with a typical power draw of 49.70W under load. Networking protocols include IEEE 802.1Q for VLAN tagging, IEEE 802.1x for port-based authentication, and IEEE 802.3az for energy-efficient Ethernet, ensuring compliance with modern network security and efficiency standards.
Key Product Advantages
The Aruba CX 6000 switch stands out with its high port density, substantial PoE budget, and flexible deployment options. The 48 PoE+ ports reduce the need for additional power injectors, simplifying cabling and lowering total cost of ownership. Layer 3 functionality allows for inter-VLAN routing and improved network segmentation, enhancing both performance and security in complex environments.
High-Density PoE+
With 48 PoE+ ports and a 740W budget, this switch can power numerous devices like IP cameras, VoIP phones, and Wi-Fi access points simultaneously, supporting converged network deployments.
- IEEE 802.3at compliance
- Up to 30W per port
- Reduces external power needs
Flexible Uplink Options
Four SFP slots provide fiber connectivity for high-bandwidth uplinks, backbone links, or connections to other switches, enabling scalable network expansion and longer distance runs.
- Supports 100/1000Base-X
- Optical fiber compatibility
- Modular expansion capability
Quiet and Reliable Operation
The fanless design eliminates moving parts, reducing noise and potential failure points, making it suitable for office environments where quiet operation is essential.
- Zero acoustic noise
- Enhanced reliability
- Ideal for open-plan spaces
Deployment / Use Cases
This switch is ideal for medium to large business networks, educational campuses, and retail environments where high-density connectivity and PoE are required. Its 48 ports accommodate growing device counts, while the Layer 3 capabilities support segmented networks for departments, guest access, or IoT device groups.
In office settings, the switch can power VoIP phone systems and wireless access points across multiple floors, with SFP uplinks connecting to core switches or internet gateways. For surveillance deployments, the PoE budget supports numerous IP cameras, with VLANs isolating video traffic for security. The 1U rack-mount form factor allows for tidy installation in server rooms or network closets, and wall or surface mounting options provide flexibility in space-constrained locations.
Enterprise Office Networks
Deploy as an access layer switch to connect workstations, printers, and phones, using Layer 3 features for inter-departmental routing and QoS for voice traffic.
Education and Campus Wi-Fi
Power Aruba or third-party wireless access points across classrooms and libraries, with SFP uplinks for high-speed backhaul to the network core.
Physical Profile
The switch features a compact, gray chassis designed for versatile mounting. Its 1U height (1.73") fits standard 19-inch racks, with additional support for cabinet, surface, or wall mounting. The dimensions of 17.40" wide by 12.70" deep provide a balanced footprint, while the weight of 10.36 lb ensures easy handling during installation. The robust construction supports reliable operation in controlled environments, with form factors that adapt to various deployment scenarios.
- Width
- 17.40" (441.96 mm)
- Depth
- 12.70" (322.58 mm)
- Height
- 1.73" (43.94 mm)
- Weight
- 10.36 lb (4700 g)
Highlights
- 48 Gigabit Ethernet PoE+ ports for high-density device connectivity
- 740W total PoE budget to power IP phones, cameras, and access points
- 4 SFP slots for fiber uplinks or expansion to other switches
- Layer 3 managed switching with advanced routing and VLAN support
- Fanless design for silent, reliable operation in office environments
- 1U rack-mountable form factor with versatile mounting options
- Supports comprehensive IEEE networking standards for interoperability
- Lifetime limited warranty for long-term peace of mind
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | R9Y03AACD |
| Brand Name | Aruba |
| Product Series | CX 6000 |
| Product Name | 6000 48G CL4 4SFP 740W Switch |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | Fanless |
| Interfaces/Ports | |
| Total Number of Network Ports | 48 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 48 x Gigabit Ethernet PoE+,4 x Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,100/1000Base-X |
| Maximum Data Transfer Rate | 128 MB/s |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 4 |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.3,IEEE 802.3at,IEEE 802.3az,IEEE 802.3ad,IEEE 802.1s,IEEE 802.1D,IEEE 802.1w,IEEE 802.1p,IEEE 802.1ab,IEEE 802.1Q,IEEE 802.1x,IEEE 802.3af,IEEE 802.3x,IEEE 802.3ab |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 740 W |
| Input Voltage | 120 V AC,230 V AC |
| Power Source | Power Supply |
| Number of Power Supplies Installed | 1 |
| Power Consumption | 49.70 W |
| Physical Characteristics | |
| Product Color | Gray |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable,Cabinet Mount,Surface Mount,Wall Mountable,Compact |
| Height | 1.73" (43.94 mm) |
| Width | 17.40" (441.96 mm) |
| Depth | 12.70" (322.58 mm) |
| Weight (Approximate) | 10.36 lb (4700 g) |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
How many devices can this switch power with PoE?
The switch has a 740W PoE budget and 48 PoE+ ports compliant with IEEE 802.3at. It can deliver up to 30W per port, allowing it to power multiple devices like IP phones, wireless access points, or security cameras simultaneously. The exact number depends on the power requirements of each connected device, but the high budget supports dense deployments typical in office or campus settings.
What are the SFP slots used for?
The four SFP slots support Gigabit Ethernet expansion via fiber optic or copper SFP modules. They are typically used for uplinks to core switches, connections to other network segments, or long-distance runs where twisted pair cables are insufficient. These slots provide flexibility to integrate fiber backbone links, enhancing network scalability and performance.
Does this switch support Layer 3 routing?
Yes, this is a Layer 3 managed switch. It supports advanced routing protocols, inter-VLAN routing, and quality of service (QoS) features. Layer 3 functionality improves network performance by enabling direct routing between subnets without relying on an external router, which is beneficial for segmented networks in enterprise environments.
Is the switch fanless, and what are the benefits?
Yes, the switch features a fanless design. This eliminates noise from cooling fans, making it suitable for quiet office spaces or open-plan environments. Fanless operation also reduces mechanical failure points, enhancing long-term reliability and minimizing maintenance needs compared to actively cooled switches.
What are the physical dimensions and mounting options?
The switch measures 1.73" H x 17.40" W x 12.70" D and weighs 10.36 lb. It is compatible with 1U rack mounts and also supports cabinet, surface, and wall mounting. This versatility allows installation in server racks, network closets, or other spaces where standard rack mounting may not be feasible.
What is the warranty coverage for this switch?
The switch comes with a lifetime limited warranty from the manufacturer. This warranty covers defects in materials and workmanship for the product's lifetime, providing long-term assurance and reducing total cost of ownership. It reflects the switch's durability and reliability in continuous operation.
What uplink, SFP, fiber, or media support detail is listed?
The warranty or support detail listed is Yes, giving buyers a clearer picture of expected coverage after purchase.
Does the product support PoE or wireless networking?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
