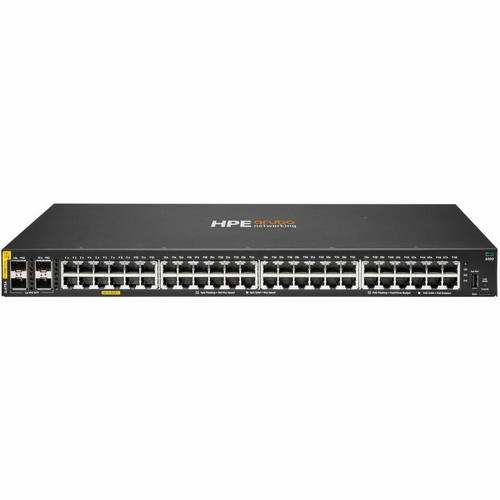

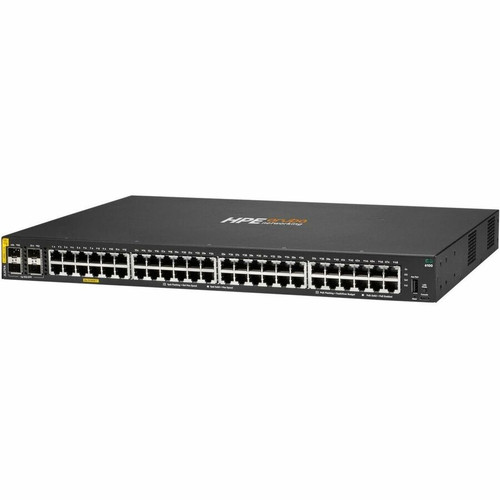

Aruba JL675A#ACD 6100 48G Class4 PoE Switch - 48 Ports - 4 SFP+ Uplinks - 370W PoE Budget - 1U Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch delivers a maximum data transfer rate of 1.25 GB/s, ensuring high-throughput performance for data-intensive applications and network traffic. It supports media types including twisted pair and optical fiber, with network technologies covering 10/100/1000Base-T and 10GBase-X, providing compatibility with existing infrastructure and future high-speed upgrades.
The integrated power supply supports one installed unit with a power consumption of 30.60 W under typical operation, contributing to energy-efficient network operations. Layer 2 switching capabilities enable efficient packet forwarding, VLAN segmentation, and basic network management features, supporting secure and organized business network environments.
This section brings together practical product details such as Total Number of Network Ports, Network (RJ-45), Uplink Port, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The Aruba 6100 switch stands out with its balanced combination of port density, PoE capacity, and uplink flexibility, making it a versatile choice for expanding network infrastructure without compromising on power or performance.
High-Density Connectivity
Forty-eight Gigabit Ethernet ports provide ample connections for workstations, servers, and networked devices, reducing the need for additional switches in crowded network closets.
- Supports up to 48 devices simultaneously
- Ideal for office and retail environments
Power over Ethernet Ready
A 370W PoE budget allows the switch to deliver power to compatible devices over Ethernet cables, streamlining deployments and reducing clutter from power adapters.
- Powers IP phones, WAPs, and cameras
- Simplifies installation and maintenance
Scalable Uplink Options
Four SFP+ slots enable high-speed 10 Gigabit uplinks to core switches or servers, supporting bandwidth-intensive applications and future network growth.
- Flexible fiber or copper uplinks
- Enhances backbone performance
Deployment / Use Cases
This switch is engineered for scenarios where reliable, high-density switching with PoE support is essential. Its feature set makes it suitable for both primary access layer duties and aggregation roles in small to medium-sized networks.
In office environments, it can connect numerous desktops, VoIP phones, and wireless access points while providing PoE to reduce power outlet demands. For retail or education settings, the switch supports point-of-sale systems, digital signage, and security cameras with consistent power delivery. In server rooms or data centers, the SFP+ uplinks facilitate high-speed connections to storage arrays or core networking gear, ensuring low-latency data transfer.
Business Office Networks
Deploy as the main switch for connecting employee workstations, IP telephony, and Wi-Fi access points with integrated PoE.
Surveillance and IoT Deployments
Use to power and connect multiple IP cameras and IoT sensors, leveraging PoE for simplified cabling and centralized management.
Physical Profile
The switch features a compact 1U design with dimensions of 1.73" (43.90 mm) height, 17.40" (442 mm) width, and 12" (304.80 mm) depth, making it easy to integrate into standard 19-inch racks. Its approximate weight of 11.07 lb (5020 g) ensures stable mounting without excessive load. The rack-mountable and wall-mountable options provide flexibility for installation in varied environments, from data centers to wiring closets, with a focus on efficient space utilization and professional cable organization.
- Width
- 17.40" (442 mm)
- Depth
- 12" (304.80 mm)
- Height
- 1.73" (43.90 mm)
- Weight
- 11.07 lb (5020 g)
Highlights
- 48 Gigabit Ethernet ports for high-density device connectivity
- 370W PoE budget to power IP phones, cameras, and wireless access points
- 4 SFP+ uplink slots for 10 Gigabit Ethernet expansion
- Layer 2 switching support for efficient network segmentation and management
- 1U rack-mountable form factor with wall-mount capability
- Maximum data transfer rate of 1.25 GB/s for high-throughput performance
- Supports twisted pair and optical fiber media types
- Power consumption of 30.60 W for energy-efficient operation
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | JL675A#ACD |
| Brand Name | Aruba |
| Product Series | CX 6100 |
| Product Name | 6100 48G Class4 PoE 4SFP+ 370W Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 48 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Modular | Yes |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,10GBase-X |
| Maximum Data Transfer Rate | 1.25 GB/s |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Network & Communication | |
| Layer Supported | 2 |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 370 W |
| Power Source | Power Supply |
| Number of Power Supplies Supported | 1 |
| Number of Power Supplies Installed | 1 |
| Power Consumption | 30.60 W |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable,Wall Mountable |
| Height | 1.73" (43.90 mm) |
| Width | 17.40" (442 mm) |
| Depth | 12" (304.80 mm) |
| Weight (Approximate) | 11.07 lb (5020 g) |
User Manual
FAQ
How many devices can this switch connect directly?
The Aruba 6100 switch provides 48 Gigabit Ethernet ports, allowing direct connections for up to 48 networked devices such as computers, printers, or VoIP phones. This high port count reduces the need for additional switches in many office or retail settings.
What is the PoE budget and what can it power?
This switch has a PoE budget of 370 watts, which can deliver power to multiple PoE-compatible devices simultaneously. It is suitable for powering IP phones, wireless access points, security cameras, and other networked equipment that supports IEEE 802.3af/at standards.
Can this switch support fiber optic connections?
Yes, the switch supports optical fiber connections through its four SFP+ uplink slots. These slots accommodate SFP+ transceivers for fiber optic cables, enabling high-speed 10 Gigabit Ethernet links to other switches or servers over longer distances.
Is this switch rack-mountable?
Yes, the switch is designed for 1U rack mounting in standard 19-inch racks, with dimensions of 1.73" height, 17.40" width, and 12" depth. It also supports wall mounting, offering flexibility for installation in data centers, server rooms, or office network closets.
What layer of switching does this switch support?
This switch supports Layer 2 switching, which includes features like VLANs, MAC address filtering, and basic traffic management. Layer 2 operation enables efficient local network segmentation and improved security for business environments.
What are the uplink options available on this switch?
The switch includes four SFP+ slots for uplink connections, supporting speeds up to 10 Gigabit Ethernet. These uplinks can be used to connect to core switches, servers, or other network segments, providing scalability and enhanced backbone performance.
What uplink, SFP, fiber, or media support detail is listed?
The warranty or support detail listed is Yes, giving buyers a clearer picture of expected coverage after purchase.
Does the product support PoE or wireless networking?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
