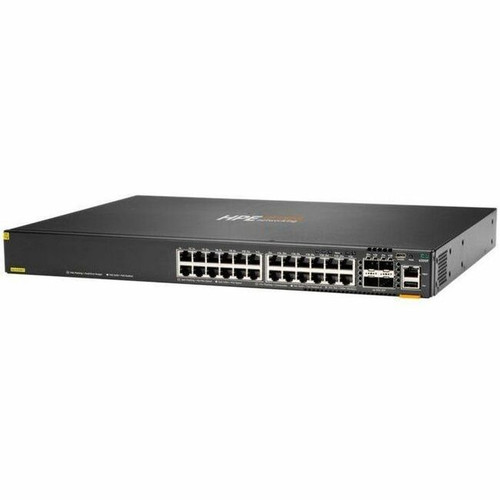

Aruba JL668AR 6300F 24-Port 1GbE + 4 SFP56 50GbE Uplink Managed Layer 3 Switch - 1U Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch features 24 Gigabit Ethernet ports with 10/100/1000Base-T compatibility, supporting both twisted pair and optical fiber media via the four integrated SFP56 uplink slots. The uplink ports operate at 50 Gigabit Ethernet speeds, providing high-bandwidth aggregation and backbone connectivity. The maximum data transfer rate reaches 6.25 GB/s, ensuring fast data movement across the network.
As a fully manageable Layer 3 switch, it offers granular control over routing, security policies, and quality of service (QoS) configurations. The stack port functionality allows multiple switches to be combined into a single logical unit with up to 200 Gbps stacking bandwidth, simplifying management and increasing redundancy.
This section brings together practical product details such as Total Number of Network Ports, Network (RJ-45), Uplink Port, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Aruba 6300F switch combines enterprise-grade performance with operational simplicity, making it an ideal choice for organizations seeking to modernize their network infrastructure. Its compact 1U design maximizes rack space efficiency while delivering full-featured switching capabilities.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Advanced Security and QoS, High-Speed Uplinks.
Advanced Security and QoS
Built-in robust security features and QoS policies ensure secure access and prioritized traffic handling for voice, video, and data applications.
- Dynamic Segmentation
- Network Analytics Engine
- Automated Configuration
High-Speed Uplinks
Four SFP56 uplink ports support 50 Gigabit Ethernet, providing ample bandwidth for aggregation and future network growth.
- 50GbE Speed
- Fiber and Copper Support
- Scalable Backbone
Deployment / Use Cases
This switch is well-suited for campus networks, branch offices, and medium-sized enterprise environments requiring reliable, high-performance switching with advanced management features. Its stackable design and high uplink capacity make it effective for core or distribution layer deployments where scalability and redundancy are priorities.
Use cases include supporting high-density user environments, connecting IoT devices with secure segmentation, and aggregating traffic from access switches. The Aruba CX Mobile App and NetEdit support enable quick deployment and automated configuration, reducing setup time and operational overhead.
This section brings together practical product details such as Total Number of Network Ports, Network (RJ-45), Uplink Port, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Campus Networking
Ideal for building wired networks with multiple floors or departments, providing consistent connectivity and easy management.
Branch Office Connectivity
Supports remote offices with reliable switching and high-speed uplinks back to headquarters or data centers.
Physical Profile
The switch measures 1.73 inches in height, 17.40 inches in width, and 12.87 inches in depth, fitting standard 1U rack spaces. Its approximate weight is 9.61 pounds, making it easy to install and maintain in rack environments. The rack-mountable form factor includes mounting hardware compatibility for secure installation in data centers or network closets.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.73" (43.90 mm), 17.40" (442 mm), 12.87" (327 mm), 9.61 lb (4360 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.40" (442 mm)
- Depth
- 12.87" (327 mm)
- Height
- 1.73" (43.90 mm)
- Weight
- 9.61 lb (4360 g)
Highlights
- 24 Gigabit Ethernet ports with 10/100/1000Base-T compatibility
- Four SFP56 uplink ports supporting 50 Gigabit Ethernet speeds
- 880 Gbps system switching capacity and 660 MPPS throughput
- Managed Layer 3 switching with BGP, EVPN, VXLAN, VRF, and OSPF support
- Stackable design with up to 200 Gbps stacking bandwidth
- Compact 1U rack-mountable form factor
- Aruba CX Mobile App for one-touch deployment
- Aruba Network Analytics Engine for intelligent monitoring and remediation
- Power consumption of 63 W for energy efficiency
- RoHS and WEEE environmental compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | JL668AR |
| Brand Name | Aruba |
| Product Series | CX 6300 |
| Product Model | 6300F |
| Product Name | 6300F 24-port 1GbE and 4 port SFP56 Switch |
| Product Condition | Refurbished |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 24 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Modular | Yes |
| Stack Port | Yes |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet Network,4 x 50 Gigabit Ethernet Uplink |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet,50 Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,50GBase-X |
| Maximum Data Transfer Rate | 6.25 GB/s |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP56 |
| Network & Communication | |
| Layer Supported | 3 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Power Source | Power Supply |
| Power Consumption | 63 W |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.73" (43.90 mm) |
| Width | 17.40" (442 mm) |
| Depth | 12.87" (327 mm) |
| Weight (Approximate) | 9.61 lb (4360 g) |
| Miscellaneous | |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
User Manual
FAQ
How many ports does this Aruba switch have?
This Aruba 6300F switch has 24 Gigabit Ethernet ports for network connections, plus four SFP56 uplink ports that support 50 Gigabit Ethernet speeds. The uplink ports are used for high-bandwidth aggregation or backbone links, providing a total of 28 physical ports for flexible network design.
What is the switching capacity and throughput of this switch?
The switch offers a system switching capacity of 880 Gbps and a throughput of 660 million packets per second (MPPS). This high performance ensures it can handle dense traffic loads in campus or branch networks without bottlenecks, supporting smooth operation for business applications and services.
Is this a managed switch, and what management features does it include?
Yes, this is a fully manageable Layer 3 switch. It includes advanced management features such as support for BGP, EVPN, VXLAN, VRF, and OSPF protocols. Additionally, it offers Aruba NetEdit for automated configuration, the Aruba CX Mobile App for easy deployment, and the Aruba Network Analytics Engine for monitoring and troubleshooting.
Can this switch be stacked with other units?
Yes, this switch is stackable and includes a stack port that allows multiple units to be combined into a single logical switch. Stacking provides up to 200 Gbps of bandwidth between switches, simplifying management, increasing redundancy, and enabling scalable network expansion without complex configuration.
What are the physical dimensions and rack compatibility?
The switch measures 1.73 inches high, 17.40 inches wide, and 12.87 inches deep, with an approximate weight of 9.61 pounds. It is designed for 1U rack mounting, making it suitable for standard data center racks or network closets where space efficiency is important.
What type of uplink ports are available on this switch?
This switch includes four SFP56 uplink ports that support 50 Gigabit Ethernet. These ports can be used with SFP56 transceivers for optical fiber or direct-attach copper cables, providing high-speed connectivity for aggregation, backbone links, or connections to core switches and servers.
What uplink, SFP, fiber, or media support detail is listed?
The warranty or support detail listed is Yes, giving buyers a clearer picture of expected coverage after purchase.
