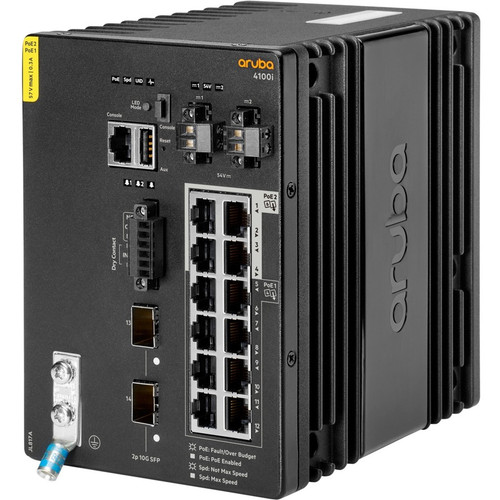

Aruba CX 4100i Ethernet Switch - 12 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X - - 3 - (JL817AR)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Total Number of Network Ports: 12
Network (RJ-45): Yes
Uplink Port: Yes
Modular: Yes
Port/Expansion Slot Details: 4 x Gigabit Ethernet PoE++,8 x Gigabit Ethernet PoE+,2 x 10 Gigabit Ethernet Expansion Slot
Media Type Supported: Twisted Pair,Optical Fiber
Ethernet Technology: Gigabit Ethernet,10 Gigabit Ethernet
Network Technology: 10/100/1000Base-T,10GBase-X
Total Number of Expansion Slots: 2
Expansion Slot Type: SFP+
Number of SFP+ Slots: 2
Layer Supported: 3
Networking Standards: IEEE 802.1x,IEEE 802.3bt,IEEE 802.3az,IEEE 802.3ad,IEEE 802.1s,IEEE 802.1D,IEEE 802.1w,IEEE 802.1p,IEEE 802.1ab,IEEE 802.1Q,IEEE 802.3af,IEEE 802.3at,IEEE 802.3,IEEE 802.3ab,IEEE 802.3x
Manageable: Yes
PoE (RJ-45) Port: Yes
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Number of Power Supplies Supported: 2
Compatible Rack Unit: 4U
Form Factor: DIN Rail Mountable,Rack-mountable
Height: 6.30" (160 mm)
Width: 4.45" (113 mm)
Depth: 6.41" (162.90 mm)
Weight (Approximate): 8.47 lb (3840 g)
- Cascade to other network devices through the uplink port to expand your local area network
- Features 12 networking ports to easily establish a local network or expand your existing one
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Can work as layer 3 routing for scalable network design
- Managed switch provides a reliable foundation for your network
- Gigabit Ethernet port for ultra-fast network speeds
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
[custom-specifications]
| Specifications | |
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | JL817AR |
| Manufacturer Website Address | http://www.hpe.com |
| Brand Name | Aruba |
| Product Series | CX 4100i |
| Product Name | CX 4100i Ethernet Switch |
| Product Condition | Refurbished |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 12 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet PoE++,8 x Gigabit Ethernet PoE+,2 x 10 Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,10GBase-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 2 |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1x,IEEE 802.3bt,IEEE 802.3az,IEEE 802.3ad,IEEE 802.1s,IEEE 802.1D,IEEE 802.1w,IEEE 802.1p,IEEE 802.1ab,IEEE 802.1Q,IEEE 802.3af,IEEE 802.3at,IEEE 802.3,IEEE 802.3ab,IEEE 802.3x |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
| Number of Power Supplies Supported | 2 |
| Physical Characteristics | |
| Compatible Rack Unit | 4U |
| Form Factor | DIN Rail Mountable,Rack-mountable |
| Height | 6.30" (160 mm) |
| Width | 4.45" (113 mm) |
| Depth | 6.41" (162.90 mm) |
| Weight (Approximate) | 8.47 lb (3840 g) |
[/custom-specifications]
[custom-options]
| Product | HPE DIN Rail 3RU 19 in Rack Mount Kit - 3U Rack Height x 19" (482.60 mm) Rack Width - Rack-mountable |
| SKU | JL822A |
| Sale Price | $512.95 |
| Product | HPE SFP+ Module - For Optical Network, Data Networking - 1 x LC 10GBase-LR Network - Optical Fiber - Single-mode - 10 Gigabit Ethernet - 10GBase-LR |
| SKU | JL783A |
| Sale Price | $4710.95 |
| Product | HPE SFP Module - For Optical Network, Data Networking - 1 x LC 1000Base-LX Network - Optical Fiber - Single-mode - Gigabit Ethernet - 1000Base-LX |
| SKU | JL781A |
| Sale Price | $1364.95 |
| Product | HPE SFP+ Module - For Optical Network, Data Networking - 1 x LC 10GBase-SR Network - Optical Fiber - Multi-mode - 10 Gigabit Ethernet - 10GBase-SR |
| SKU | JL782A |
| Sale Price | $1895.95 |
[/custom-options]
