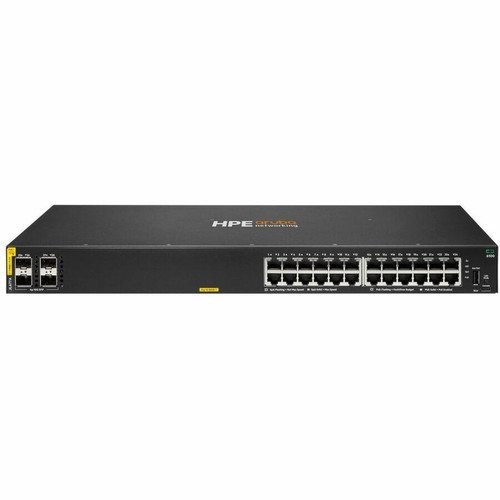

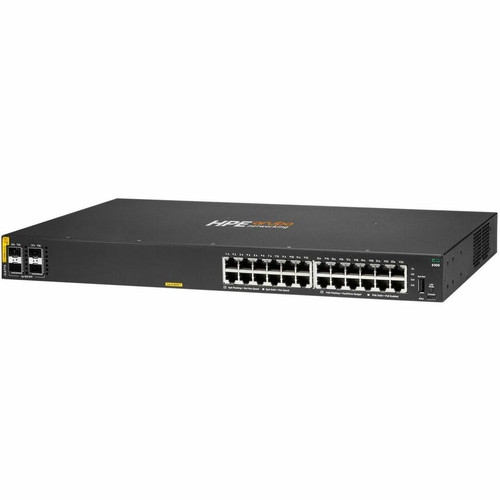

Aruba JL677A#B2C CX 6100 24G Class4 PoE 4SFP+ 370W Switch - 24 Ports - Manageable - Layer 3 - Fanless - 1U Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Built on the Aruba CX 6100 series architecture, this switch delivers a maximum data transfer rate of 1.25 GB/s, supporting both Gigabit Ethernet and 10 Gigabit Ethernet technologies. The 24 RJ-45 ports provide 10/100/1000Base-T connectivity with PoE capability, while the four SFP+ expansion slots enable high-speed 10GBase-X fiber or copper uplinks for backbone connections.
Layer 3 switching functionality allows for advanced routing, VLAN management, and improved network segmentation, enhancing overall performance and control. The switch is fully manageable, offering granular configuration through a suite of protocols including IEEE 802.1Q, 802.1D, 802.1w, and 802.3ad for link aggregation.
This section brings together practical product details such as Features, Total Number of Network Ports, Network (RJ-45), Uplink Port, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
This Aruba switch stands out with its balanced combination of port density, PoE power, and uplink flexibility, making it a versatile choice for modern network infrastructures.
High-Density PoE Deployment
With 24 PoE ports and a 370W budget, the switch can power a range of devices such as IP phones, wireless access points, and security cameras, simplifying cabling and reducing the need for additional power sources.
- Supports IEEE 802.3af/at PoE standards
- Ideal for VoIP and WLAN deployments
Scalable Uplink Connectivity
The four SFP+ slots provide flexible 10 Gigabit Ethernet uplinks, allowing for high-bandwidth connections to core switches or servers using cost-effective twisted pair or optical fiber media.
- Enables 10GBase-X fiber or DAC connections
- Supports media types: Twisted Pair, Optical Fiber
Quiet, Flexible Installation
The fanless operation ensures silent performance, while the 1U form factor supports rack, wall, cabinet, or surface mounting, adapting to various installation environments without noise disruption.
- Zero moving parts for reliability
- Compact dimensions: 1.73" H x 17.40" W x 10.56" D
Deployment / Use Cases
The Aruba CX 6100 24G Class4 PoE 4SFP+ 370W Switch is designed for scenarios requiring reliable, managed switching with PoE support and high-speed uplinks. Its feature set makes it suitable for mid-sized networks where performance, scalability, and power efficiency are critical.
In office or campus environments, it can serve as an access layer switch, connecting end-user devices and providing PoE to IP phones and wireless access points. The SFP+ uplinks enable seamless integration into larger network backbones, ensuring sufficient bandwidth for aggregated traffic.
Enterprise Access Layer
Deploy as a managed access switch in business offices, schools, or healthcare facilities, offering PoE for connected devices and Layer 3 features for network segmentation and routing.
Small to Medium Data Center
Use in server rooms or data closets to connect servers and storage, with SFP+ uplinks providing high-speed connectivity to core infrastructure while maintaining a compact 1U footprint.
Physical Profile
The switch features a robust, compact chassis with dimensions of 1.73 inches in height, 17.40 inches in width, and 10.56 inches in depth, making it ideal for standard 1U rack installations. Its weight of approximately 9.24 pounds ensures stability while remaining easy to handle during deployment.
Multiple mounting options—including rack, wall, cabinet, and surface—provide installation flexibility for diverse environments. The fanless design not only reduces noise but also minimizes dust intake, contributing to long-term reliability in demanding conditions.
- Width
- 17.40" (442 mm)
- Depth
- 10.56" (268.20 mm)
- Height
- 1.73" (43.90 mm)
- Weight
- 9.24 lb (4190 g)
What's in the Box
The package includes all necessary components for immediate deployment and installation.
Highlights
- 24 Gigabit Ethernet PoE ports for high-density device connectivity
- 4 SFP+ uplink slots supporting 10 Gigabit Ethernet for high-speed backbone links
- 370W PoE budget to power IP phones, cameras, and wireless access points
- Layer 3 managed switching with advanced routing and VLAN capabilities
- Fanless design for silent operation in office or quiet environments
- 1U rack-mountable form factor with multiple mounting options
- Supports stacking for easy network expansion and management
- Comprehensive networking standards including IEEE 802.3af/at, 802.1Q, and 802.3ad
- Maximum data transfer rate of 1.25 GB/s for efficient network performance
- Lifetime limited warranty for long-term reliability and support
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | JL677A#B2C |
| Brand Name | Aruba |
| Product Series | CX 6100 |
| Product Name | CX 6100 24G Class4 PoE 4SFP+ 370W Switch |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | Fanless |
| Interfaces/Ports | |
| Total Number of Network Ports | 24 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Modular | Yes |
| Stack Port | Yes |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet PoE,4 x 10 Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,10GBase-X |
| Maximum Data Transfer Rate | 1.25 GB/s |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.3af,IEEE 802.3at,IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3az,IEEE 802.3x |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 370 W |
| Input Voltage | 120 V AC,230 V AC |
| Power Source | Power Supply,AC |
| Power Consumption | 455 W |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable,Wall Mountable,Cabinet Mount,Surface Mount,Compact |
| Height | 1.73" (43.90 mm) |
| Width | 17.40" (442 mm) |
| Depth | 10.56" (268.20 mm) |
| Weight (Approximate) | 9.24 lb (4190 g) |
| Miscellaneous | |
| Package Contents | CX 6100 24G Class4 PoE 4SFP+ 370W Switch Non-Pluggable, Internal PSU behind sheetmetal Chassis Frame Non-Pluggable, Internal Fans behind sheetmetal Chassis Frame Mounting Brackets |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
How many PoE ports does this Aruba switch have, and what is the total PoE budget?
This Aruba CX 6100 switch includes 24 Gigabit Ethernet ports that all support Power over Ethernet (PoE). The total PoE budget is 370 watts, which allows it to simultaneously power multiple PoE devices such as IP phones, wireless access points, and security cameras without requiring separate power adapters.
What types of uplink connections are supported by the SFP+ slots?
The four SFP+ expansion slots support 10 Gigabit Ethernet connections using either optical fiber (10GBase-X) or direct-attach copper cables. This provides flexible high-speed uplink options to connect to core switches, servers, or network storage, enhancing backbone bandwidth and network scalability.
Is this switch manageable, and what Layer does it support?
Yes, this is a fully manageable switch that supports Layer 3 switching. Layer 3 functionality includes advanced features like routing between VLANs, IP routing, and improved network segmentation, offering greater control and performance compared to basic Layer 2 switches.
Can this switch be used in a rack-mount installation?
Absolutely. The switch is designed for 1U rack mounting and includes mounting brackets in the package. It also supports wall, cabinet, and surface mounting, providing versatile installation options to fit various network environments, from data centers to office wiring closets.
Does the switch have a fan, and how does that affect operation?
This switch features a fanless design, meaning it operates silently with no moving parts. This reduces noise pollution, minimizes dust accumulation, and enhances reliability, making it ideal for deployment in quiet areas like offices, classrooms, or healthcare settings where noise reduction is important.
What is the maximum data transfer rate of this Aruba switch?
The Aruba CX 6100 24G Class4 PoE 4SFP+ 370W Switch has a maximum data transfer rate of 1.25 gigabytes per second. This high throughput ensures efficient handling of network traffic, supporting smooth data flow for connected devices and uplink connections without bottlenecks.
What uplink, SFP, fiber, or media support detail is listed?
The warranty or support detail listed is Yes, giving buyers a clearer picture of expected coverage after purchase.
Does the product support PoE or wireless networking?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
