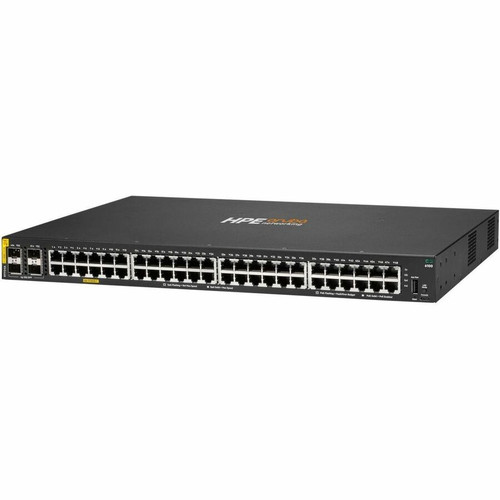

Aruba R9Y04A#ACD CX 6100 Ethernet Switch - 48 Port Gigabit PoE - 4x SFP+ Uplinks - 740W PoE Budget - Layer 2 Managed - 1U Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Aruba switch operates at Layer 2 of the OSI model, supporting essential switching functions like VLAN segmentation, Quality of Service (QoS) prioritization, and Access Control Lists (ACLs) for traffic management and security. It achieves a maximum data transfer rate of 1.25 GB/s, ensuring efficient handling of high-bandwidth applications and reducing network bottlenecks. The switch supports a comprehensive set of networking standards, including IEEE 802.3af/at for PoE, IEEE 802.1Q for VLANs, and IEEE 802.3ad for link aggregation.
The 48 RJ-45 ports support 10/100/1000Base-T connections over twisted pair cabling, while the four SFP+ slots accommodate 10GBase-X optical fiber or copper transceivers for uplinks. This dual-media capability allows integration into mixed cabling environments. The switch's built-in power supply accepts 120V AC or 230V AC input, providing global voltage compatibility for international deployments.
Key Product Advantages
The Aruba CX 6100 switch offers several distinct advantages for network administrators seeking reliability, scalability, and ease of management. Its high port density and PoE budget eliminate the need for additional PoE switches or injectors, simplifying infrastructure and reducing total cost of ownership. The four SFP+ uplink slots provide future-proof scalability, allowing seamless integration into 10 Gigabit Ethernet core networks or aggregation layers.
Silent Operation
The fanless design ensures zero acoustic noise, making this switch ideal for noise-sensitive environments like open offices, classrooms, or healthcare settings where quiet operation is essential.
- No moving parts
- Reduced maintenance
- Enhanced reliability
Flexible Deployment
With 1U rack-mount, wall-mount, and compact form factor options, this switch adapts to various installation scenarios, from standard data center racks to space-constrained wiring closets.
- 1U rack space
- Wall-mount brackets compatible
- Compact footprint
Comprehensive Management
Full manageability via CLI, web interface, or network management software enables granular control over configuration, monitoring, and troubleshooting, supporting advanced features like QoS and ACLs.
- CLI and web access
- SNMP support
- Remote management capabilities
Deployment / Use Cases
The Aruba CX 6100 switch is well-suited for medium to large business networks requiring high-density PoE and reliable switching performance. Its 48 PoE ports make it an excellent choice for powering and connecting IP phones, wireless access points, and IP surveillance cameras in office buildings, campuses, or retail environments. The switch's Layer 2 features support segmented network designs, enhancing security and traffic management across departments or tenant spaces.
In branch office or remote site deployments, the switch's compact size and dual voltage input simplify installation and reduce infrastructure complexity. The SFP+ uplinks enable high-speed connections back to a central data center or core switch, ensuring adequate bandwidth for cloud applications and inter-site communication. For IT teams managing growing networks, this switch provides a scalable foundation that supports future expansion without immediate hardware upgrades.
Highlights
- 48 Gigabit Ethernet ports with Class 4 PoE support across all ports
- 740W total PoE budget for powering PoE+ and PoE devices simultaneously
- Four 10 Gigabit Ethernet SFP+ uplink slots for high-speed backbone connections
- Layer 2 managed switch with QoS, ACLs, and VLAN support
- Fanless design for silent operation in noise-sensitive environments
- 1U rack-mountable, compact, and wall-mountable form factor
- Supports twisted pair and optical fiber media types
- Dual voltage input (120V AC / 230V AC) for global deployment
- Comprehensive IEEE networking standards compliance
- Built-in power supply with 890W power consumption
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | R9Y04A#ACD |
| Brand Name | Aruba |
| Product Series | CX 6100 |
| Product Name | CX 6100 Ethernet Switch |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | Fanless,Quality of Service (QoS),Access Control List |
| Interfaces/Ports | |
| Total Number of Network Ports | 48 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 48 x Gigabit Ethernet Class4 PoE,4 x 10 Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,10GBase-X |
| Maximum Data Transfer Rate | 1.25 GB/s |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3af,IEEE 802.3at,IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3az,IEEE 802.3x |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 740 W |
| Input Voltage | 120 V AC,230 V AC |
| Power Source | Power Supply,AC |
| Power Consumption | 890 W |
| Physical Characteristics | |
| Product Color | Gray |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable,Compact,Wall Mountable |
User Manual
FAQ
How many PoE devices can this switch power simultaneously?
The Aruba CX 6100 switch features a 740W PoE budget, allowing it to power multiple PoE+ (802.3at) and PoE (802.3af) devices across all 48 ports. The exact number depends on the power requirements of each connected device, but the substantial budget supports typical deployments of IP phones, wireless access points, and security cameras without overloading the switch.
What types of uplink connections are supported?
This switch includes four SFP+ slots that support 10 Gigabit Ethernet uplinks using 10GBase-X transceivers. These slots accommodate both optical fiber and copper SFP+ modules, providing flexibility for connecting to core switches, servers, or other network aggregation points over short or long distances.
Is this switch manageable, and what management features does it offer?
Yes, the Aruba CX 6100 is a fully manageable Layer 2 switch. It supports management via CLI, web interface, and SNMP, enabling configuration of VLANs, Quality of Service (QoS), Access Control Lists (ACLs), and link aggregation. These features provide granular control over network traffic, security policies, and performance optimization.
What is the maximum data transfer rate of this switch?
The switch achieves a maximum data transfer rate of 1.25 GB/s. This throughput ensures efficient handling of high-bandwidth applications, such as video conferencing, large file transfers, and real-time data streaming, across its 48 Gigabit Ethernet ports and 10 Gigabit Ethernet uplinks.
Can this switch be mounted in a standard server rack?
Yes, the switch is designed for 1U rack mounting in standard 19-inch server racks. Its compact form factor also supports wall mounting, making it versatile for installations in data centers, wiring closets, or locations where rack space is limited. The gray chassis blends well with typical rack equipment.
Does the switch support both copper and fiber connections?
Yes, the switch supports both media types. The 48 RJ-45 ports use twisted pair copper cabling (10/100/1000Base-T), while the four SFP+ slots support optical fiber or copper connections via appropriate transceivers (10GBase-X). This dual-media capability allows integration into diverse cabling infrastructures.
What uplink, SFP, fiber, or media support detail is listed?
The warranty or support detail listed is Yes, giving buyers a clearer picture of expected coverage after purchase.
Does the product support PoE or wireless networking?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
