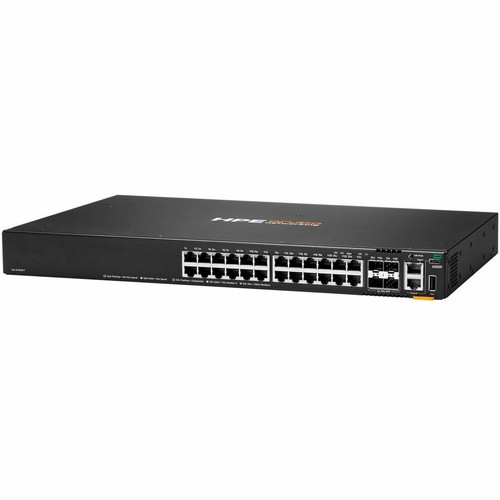

Aruba CX 6200F 24G 4SFP+ Switch - 24 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X, - 3 - (JL724B#B2B)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Features: VSF Stacking,Intelligent monitoring,Hot-swappable
Total Number of Network Ports: 24
Network (RJ-45): Yes
Uplink Port: Yes
Modular: Yes
Stack Port: Yes
Port/Expansion Slot Details: 24 x 10/100/1000BASE-T Gigabit Ethernet RJ-45 Network Port,4 x 1/10 Gigabit Ethernet SFP+ Expansion Slot,1 x USB-C Console Port,1 x RJ-45 Console Port,1 x OOBM Port,1 x USB Type-A Host port
Media Type Supported: Twisted Pair,Optical Fiber
Ethernet Technology: Gigabit Ethernet,10 Gigabit Ethernet
Network Technology: 10/100/1000Base-T,10GBase-X,1000Base-X
Maximum Data Transfer Rate: 128 MB/s
Total Number of Expansion Slots: 4
Expansion Slot Type: SFP,SFP+
Number of SFP+ Slots: 4
Layer Supported: 3
Networking Standards: IEEE 802.3,IEEE 802.1D,IEEE 802.1Q,IEEE 802.3ab,IEEE 802.1p,IEEE 802.1w,IEEE 802.1s,IEEE 802.1t,IEEE 802.1v,IEEE 802.1ab,IEEE 802.1ak,IEEE 802.1AX
Manageable: Yes
Input Voltage: 120 V AC,230 V AC
Power Source: Power Supply,AC
Power Consumption: 59 W
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.73" (43.90 mm)
Width: 17.40" (442 mm)
Depth: 12.87" (327 mm)
Weight (Approximate): 11.24 lb (5100 g)
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: Lifetime
- Cascade to other network devices through the uplink port to expand your local area network
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 24 ports
- Can work as layer 3 routing for scalable network design
- Rack mounting enables you to organize wires & secure cables for professional installation
- Management capability provides control over setup and configuration of your network
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
[custom-specifications]
| Specifications | |
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | JL724B#B2B |
| Manufacturer Website Address | http://www.hpe.com |
| Brand Name | Aruba |
| Product Series | CX 6200 |
| Product Model | CX6200F |
| Product Name | CX 6200F 24G 4SFP+ Switch |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | VSF Stacking,Intelligent monitoring,Hot-swappable |
| Interfaces/Ports | |
| Total Number of Network Ports | 24 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Modular | Yes |
| Stack Port | Yes |
| Port/Expansion Slot Details | 24 x 10/100/1000BASE-T Gigabit Ethernet RJ-45 Network Port,4 x 1/10 Gigabit Ethernet SFP+ Expansion Slot,1 x USB-C Console Port,1 x RJ-45 Console Port,1 x OOBM Port,1 x USB Type-A Host port |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,10GBase-X,1000Base-X |
| Maximum Data Transfer Rate | 128 MB/s |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP,SFP+ |
| Number of SFP+ Slots | 4 |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.3,IEEE 802.1D,IEEE 802.1Q,IEEE 802.3ab,IEEE 802.1p,IEEE 802.1w,IEEE 802.1s,IEEE 802.1t,IEEE 802.1v,IEEE 802.1ab,IEEE 802.1ak,IEEE 802.1AX |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Power Source | Power Supply,AC |
| Power Consumption | 59 W |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.73" (43.90 mm) |
| Width | 17.40" (442 mm) |
| Depth | 12.87" (327 mm) |
| Weight (Approximate) | 11.24 lb (5100 g) |
| Miscellaneous | |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
[/custom-specifications]
