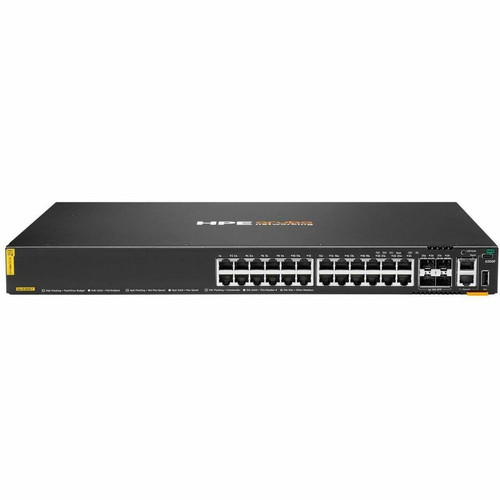

Aruba JL725B#AKL CX 6200F 24-Port Gigabit PoE+ Managed Switch - 24x Class 4 PoE - 4x SFP+ - 370W Budget - Layer 3 - 1U Rackmount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Engineered for high throughput, the switch supports a maximum data transfer rate of 1.25 GB/s across its 24 Gigabit RJ-45 ports and four 10 Gigabit SFP+ uplink slots. The SFP+ expansion slots enable flexible connectivity using optical fiber or copper DAC cables for high-speed backbone links, aggregation, or connections to servers and storage.
Layer 3 switching capabilities provide enhanced routing performance, supporting protocols like static routing and policy-based routing for efficient traffic management across subnets. The switch is manageable via HTTP and supports a comprehensive suite of networking standards including IEEE 802.3bt for high-power PoE, IEEE 802.3ad for link aggregation, and IEEE 802.1Q for VLAN segmentation.
Power over Ethernet
All 24 Gigabit ports deliver Class 4 PoE, compliant with IEEE 802.3bt, 802.3at, and 802.3af standards. The 370W total budget supports power-hungry devices such as PTZ cameras, multi-radio Wi-Fi 6 access points, and digital signage.
Key Product Advantages
The Aruba CX 6200F combines high-density PoE, scalable uplinks, and advanced management in a compact 1U design, reducing infrastructure complexity and total cost of ownership.
Scalable Uplink Flexibility
Four SFP+ slots provide 10 Gigabit uplink options, allowing seamless integration into high-speed core networks or connections to servers and network-attached storage without bottlenecking aggregated edge traffic.
Advanced Management & Monitoring
Full manageability includes features like Remote Monitoring (RMON), DHCP relay, port mirroring for traffic analysis, and link aggregation for increased bandwidth and redundancy. The stack port simplifies expansion by allowing multiple switches to operate as a single logical unit.
Deployment / Use Cases
This switch is engineered for environments requiring reliable, high-power PoE and scalable connectivity. Its 24-port PoE configuration makes it suitable for powering and connecting a dense array of networked devices in a single rack unit.
Common deployment scenarios include modern office networks, educational campuses, retail environments, and healthcare facilities where a mix of IP telephony, wireless networking, and security surveillance systems must be supported from a centralized switching point.
Unified Access Layer
Deploy as an access layer switch in medium to large networks, providing PoE to end-user devices and uplinking via SFP+ to distribution or core switches. The Layer 3 functionality allows for inter-VLAN routing at the edge, reducing latency and core switch load.
Branch Office & Edge Networking
Ideal for branch offices requiring a compact, full-featured switch. The surface-mount capability offers flexibility for wall or shelf installation in telecom rooms, while the 1U rackmount design ensures easy integration into standard server racks for centralized management.
Physical Profile
The switch features a durable, compact chassis measuring 1.72" (43.70 mm) in height, 17.42" (442.50 mm) in width, and 11.98" (304.30 mm) in depth, with an approximate weight of 9.68 lb (4390 g). Its 1U form factor is compatible with standard 19-inch server racks, and it supports cabinet mounting, rack-mounting, or surface mounting for versatile installation in various IT environments.
- Width
- 17.42" (442.50 mm)
- Depth
- 11.98" (304.30 mm)
- Height
- 1.72" (43.70 mm)
- Weight
- 9.68 lb (4390 g)
Highlights
- 24 Gigabit Ethernet ports with Class 4 PoE (802.3bt/at/af) support.
- 4 x SFP+ uplink slots for 10 Gigabit fiber or copper connections.
- 370W total PoE budget to power high-demand devices like Wi-Fi 6 APs and PTZ cameras.
- Layer 3 managed switching with advanced routing and traffic management.
- 1U rackmount design for efficient use of cabinet space.
- Stack port for easy expansion and simplified management of multiple switches.
- Dual voltage input (120V/230V AC) with low 65W power consumption.
- TAA compliant for use in U.S. government and regulated procurement.
- Comprehensive feature set including RMON, DHCP relay, port mirroring, and link aggregation.
- Supports twisted pair and optical fiber media for flexible cabling.
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | JL725B#AKL |
| Brand Name | Aruba |
| Product Series | CX 6200 |
| Product Model | 6200F |
| Product Name | CX 6200F 24G Class 4 PoE 4SFP+ 370W Switch |
| Product Type | Ethernet Switch |
| Technical Information | |
| Data Link Protocols | HTTP |
| Features | Remote Monitoring (RMON),Energy Efficient,DHCP Relay,Port Mirroring,Link Aggregation |
| Interfaces/Ports | |
| Total Number of Network Ports | 24 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Modular | Yes |
| Stack Port | Yes |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet Class4 PoE,4 x 10Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,10GBase-X |
| Maximum Data Transfer Rate | 1.25 GB/s |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.3,IEEE 802.3bt,IEEE 802.3at,IEEE 802.3az,IEEE 802.3ad,IEEE 802.1s,IEEE 802.1D,IEEE 802.1w,IEEE 802.1ab,IEEE 802.1Q,IEEE 802.1v,IEEE 802.1x,IEEE 802.1ae,IEEE 802.3af,IEEE 802.1ak,IEEE 802.1AX,IEEE 802.1t,IEEE 802.3z |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 370 W |
| Input Voltage | 120 V AC,230 V AC |
| Power Source | Power Supply,AC |
| Power Consumption | 65 W |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Cabinet Mount,Rack-mountable,Surface Mount |
| Height | 1.72" (43.70 mm) |
| Width | 17.42" (442.50 mm) |
| Depth | 11.98" (304.30 mm) |
| Weight (Approximate) | 9.68 lb (4390 g) |
| Miscellaneous | |
| TAA Compliant | Yes |
FAQ
How many PoE devices can this switch power with its 370W budget?
The 370W total PoE budget supports multiple high-power devices. For example, it could power approximately 24 Class 1 PoE devices (like basic IP phones at 3.84W each), or a mix of devices such as several Wi-Fi 6 access points (typically 30-60W each under 802.3bt) along with IP cameras and phones. The actual number depends on the specific power draw of each connected device, as the switch dynamically allocates power per port up to the 370W system limit.
What are the benefits of the four SFP+ uplink slots?
The four SFP+ slots provide 10 Gigabit uplink connectivity, enabling high-speed backbone links to core switches, servers, or storage arrays. This prevents bottlenecks when aggregating traffic from the 24 Gigabit access ports. You can use optical SFP+ modules for long-distance fiber runs or DAC cables for short-reach copper connections, offering flexibility in network design and future scalability.
Does this switch support stacking?
Yes, the switch includes a dedicated stack port, allowing you to connect multiple Aruba CX 6200 series switches to operate as a single logical unit. Stacking simplifies management by providing a unified configuration interface, improves resiliency through inter-switch link redundancy, and enables easier scalability as network needs grow without complex standalone switch management.
What does Layer 3 switching capability provide?
Layer 3 switching enables the switch to perform IP routing between VLANs at wire speed, reducing the need for an external router for inter-VLAN traffic. This improves network performance by keeping local traffic off the core network, supports advanced features like static routing and access control lists (ACLs), and allows for more efficient network segmentation and policy enforcement directly at the access layer.
What are the physical dimensions and mounting options?
The switch measures 1.72" high, 17.42" wide, and 11.98" deep, weighing approximately 9.68 lb. It is designed for 1U rack mounting in standard 19-inch server cabinets. Additionally, it supports surface mounting for wall or shelf installation and cabinet mounting, providing flexibility for deployment in various environments like telecom closets, server rooms, or branch offices.
Is this switch energy efficient?
Yes, the switch incorporates energy-efficient technologies compliant with IEEE 802.3az (Energy Efficient Ethernet). It adjusts power usage based on link activity and cable length, and its typical power consumption is only 65W. This reduces operational costs and heat output, contributing to a greener IT infrastructure while maintaining full performance across all ports and PoE loads.
What uplink, SFP, fiber, or media support detail is listed?
The warranty or support detail listed is Yes, giving buyers a clearer picture of expected coverage after purchase.
Does the product support PoE or wireless networking?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
