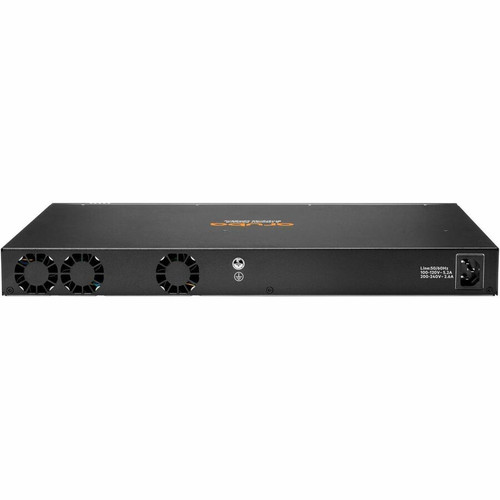

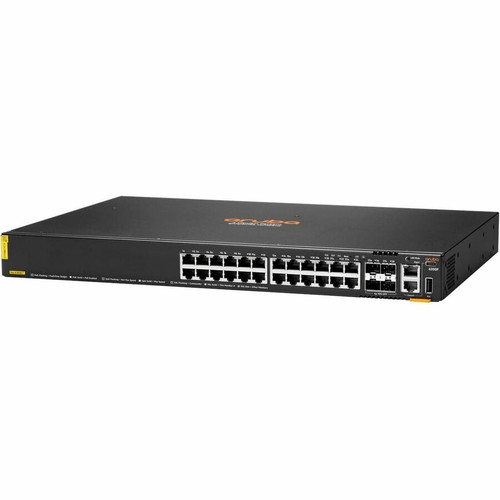

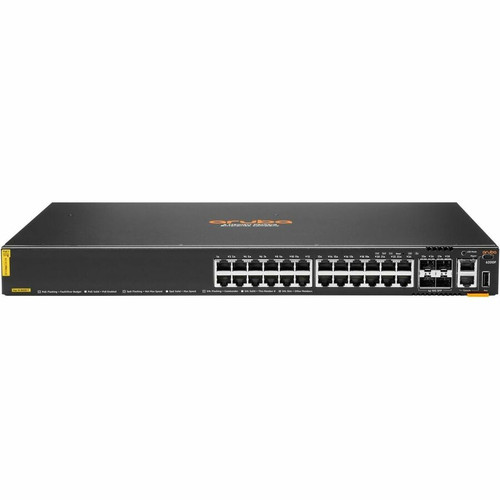

Aruba JL725B CX 6200F 24G Class 4 PoE 4SFP+ 370W Switch - 24 Port Gigabit Ethernet - 10Gb Uplinks - Layer 3 Managed
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch features 24 Gigabit Ethernet ports that support 10/100/1000Base-T connections over twisted pair cabling, along with four dedicated 10Gb SFP+ expansion slots for high-speed uplinks or fiber connectivity. The 370W PoE budget supports IEEE 802.3af, 802.3at, and 802.3bt standards, enabling power delivery to a range of devices including IP phones, wireless access points, and security cameras.
Layer 3 switching capabilities provide advanced routing, VLAN support, and quality of service (QoS) features, while the manageable interface offers granular control over network configuration and security. The switch operates on a 65W power supply with dual-voltage input (120/230V AC) and includes comprehensive networking standards compliance for interoperability.
This section brings together practical product details such as Total Number of Network Ports, Network (RJ-45), Uplink Port, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Aruba CX 6200F switch stands out with its balanced combination of port density, PoE capacity, and uplink flexibility. The 370W PoE budget allows for simultaneous power delivery to multiple devices, reducing the need for additional power injectors and simplifying cable management.
High-Speed Uplinks
Four 10Gb SFP+ ports provide ample bandwidth for connecting to core switches, servers, or storage arrays, preventing bottlenecks in growing networks.
- 10GBase-X support
- Fiber or copper SFP+ modules
- Aggregation-ready
Enterprise Management
Full manageability with support for advanced features like VLANs, QoS, and security protocols ensures optimal network performance and control.
- Layer 3 routing
- IEEE 802.1Q VLAN
- 802.1x authentication
Flexible Deployment
The 1U form factor supports rack, cabinet, or surface mounting, making it suitable for data centers, wiring closets, or edge locations.
- Rack-mountable
- Cabinet mount options
- Compact footprint
Deployment / Use Cases
This switch is engineered for medium to large business environments where reliable, high-performance networking is critical. Its substantial PoE budget makes it particularly valuable for deployments involving power-hungry devices like PTZ cameras, multi-radio access points, or digital signage.
In educational institutions, the switch can support classroom technology, wireless networks, and security systems. For office buildings, it provides the connectivity backbone for workstations, VoIP phones, and conference room AV equipment while maintaining efficient power management.
This section brings together practical product details such as Total Number of Network Ports, Network (RJ-45), Uplink Port, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Unified Communications
Power and connect IP phones, video conferencing systems, and collaboration tools with consistent quality of service and PoE support.
Surveillance & Security
Deploy multiple high-resolution IP cameras with PoE, using the 10Gb uplinks to handle high-bandwidth video streams back to recording servers.
Physical Profile
The switch features a compact 1U rack-mountable design with dimensions of 1.72 inches high, 17.42 inches wide, and 11.98 inches deep. This standard form factor ensures compatibility with most rack enclosures while providing adequate ventilation for stable operation. The 9.68-pound weight and robust construction make it suitable for secure installation in data centers or network closets.
- Width
- 17.42" (442.50 mm)
- Depth
- 11.98" (304.30 mm)
- Height
- 1.72" (43.70 mm)
- Weight
- 9.68 lb (4390 g)
Highlights
- 24 Gigabit Ethernet ports for high-density connectivity
- 370W total PoE budget supports Class 4 devices
- 4 x 10Gb SFP+ uplink ports for high-speed aggregation
- Layer 3 managed switching with advanced routing features
- 1U rack-mountable form factor for standard enclosures
- Supports twisted pair and fiber optic media types
- Dual voltage input (120/230V AC) for global deployment
- Comprehensive IEEE networking standards compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | JL725B |
| Brand Name | Aruba |
| Product Series | CX 6200 |
| Product Name | CX 6200F 24G Class 4 PoE 4SFP+ 370W Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 24 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet Network,4 x 10Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,10GBase-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP |
| Shared SFP Slot | Yes |
| Number of SFP Slots | 4 |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.3,IEEE 802.3bt,IEEE 802.3at,IEEE 802.3az,IEEE 802.3ad,IEEE 802.1s,IEEE 802.1D,IEEE 802.1w,IEEE 802.1ab,IEEE 802.1Q,IEEE 802.1v,IEEE 802.1x,IEEE 802.1ae,IEEE 802.3af,IEEE 802.1ak,IEEE 802.1AX,IEEE 802.1t,IEEE 802.3z |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE Budget | 370 W |
| Input Voltage | 120 V AC,230 V AC |
| Power Source | Power Supply |
| Power Consumption | 65 W |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Cabinet Mount,Rack-mountable,Surface Mount |
| Height | 1.72" (43.70 mm) |
| Width | 17.42" (442.50 mm) |
| Depth | 11.98" (304.30 mm) |
| Weight (Approximate) | 9.68 lb (4390 g) |
FAQ
How many devices can this switch power with PoE?
The switch provides a 370W PoE budget, which can support multiple PoE devices simultaneously. The exact number depends on the power class of each connected device. For example, it could power approximately 24 Class 1 devices (up to 3.84W each), 12 Class 2 devices (up to 6.49W each), 6 Class 3 devices (up to 15.4W each), or a mix of Class 4 devices (up to 30W each) within the total budget.
What types of SFP+ modules are compatible with the uplink ports?
The four SFP+ ports support both copper and fiber optic transceivers for 10Gb Ethernet connections. You can use 10GBase-SR, LR, or ER fiber modules for distances up to 10km, or 10GBase-T copper modules for shorter runs over CAT6a/CAT7 cabling. The switch also supports 1Gb SFP modules for backward compatibility with existing fiber infrastructure.
Does this switch support VLANs and quality of service?
Yes, as a Layer 3 managed switch, it fully supports IEEE 802.1Q VLAN tagging for network segmentation and IEEE 802.1p priority levels for quality of service. This allows you to prioritize voice, video, or critical application traffic while isolating different departments or device types on separate VLANs for security and performance.
What is the power consumption of this switch?
The switch consumes approximately 65W of power under typical operating conditions. This includes the power supply overhead and base switching operations. When delivering PoE to connected devices, the total power draw will increase based on the actual PoE load, but the internal electronics remain within the 65W consumption range.
Can this switch be mounted in a standard rack?
Yes, the switch is designed for standard 19-inch rack mounting with a 1U height. It includes appropriate mounting hardware and follows standard rack dimensions. The 17.42-inch width ensures proper fit in most rack enclosures, while the 11.98-inch depth accommodates standard rack depths with adequate clearance for cabling and airflow.
What management interfaces are available?
The switch offers multiple management options including a web-based graphical interface, command-line interface (CLI), and support for SNMP monitoring. It also supports network management protocols like LLDP for automatic topology discovery and can be integrated into Aruba's Central management platform for unified control across larger deployments.
What uplink, SFP, fiber, or media support detail is listed?
The warranty or support detail listed is Yes, giving buyers a clearer picture of expected coverage after purchase.
Does the product support PoE or wireless networking?
Connectivity options include 370 W, helping the product integrate into common office or home setups.
