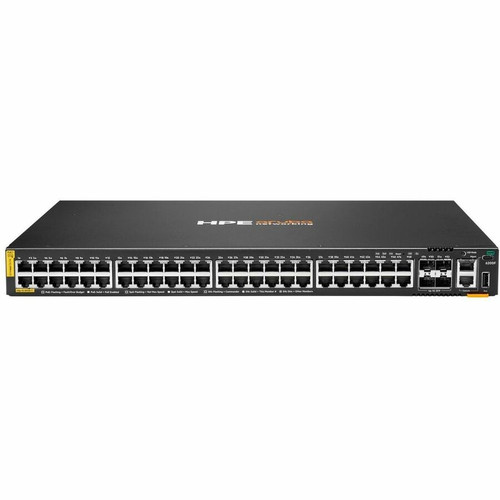

Aruba S0M85A#B2B CX 6200F 48-Port Gigabit PoE+ Managed Switch - 4 SFP - 740W PoE Budget - Layer 3 - 1U Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch delivers enterprise-grade networking with 48 10/100/1000BASE-T Gigabit Ethernet PoE RJ-45 ports, each capable of delivering up to 30W per port under the IEEE 802.3at (PoE+) standard. The four Gigabit Ethernet SFP expansion slots support 1000Base-X fiber or copper SFP transceivers, enabling high-speed uplinks to core switches or long-distance connections. Switching capacity supports a maximum data transfer rate of 128 MB/s, with Layer 3 functionality for inter-VLAN routing, dynamic routing protocols, and access control lists.
Power efficiency is highlighted by a 76W typical power consumption and support for 120V AC or 230V AC input voltages. The switch is compliant with key networking standards including IEEE 802.3af/at for PoE, IEEE 802.1Q for VLANs, IEEE 802.1x for network access control, and IEEE 802.3az for Energy Efficient Ethernet. Hot-swappable components and a modular design facilitate maintenance without network downtime.
Key Product Advantages
The Aruba CX 6200F stands out with its high PoE budget and dense port count, making it an ideal choice for deployments requiring simultaneous power to multiple devices. Its Layer 3 capabilities provide routing flexibility and enhanced network management, while the four SFP slots offer future-proof connectivity options.
High-Density PoE+
With 48 PoE+ ports and a 740W budget, this switch can power a large array of devices such as VoIP phones, wireless APs, and IP cameras, simplifying cabling and reducing the need for separate power injectors.
- IEEE 802.3af/at compliance
- Up to 30W per port
- Centralized power management
Advanced Management & Security
Full manageability includes features like Access Control Lists, Intelligent Monitoring, and Virtual Extensible LAN (VXLAN) support, enabling precise control over network traffic and segmentation for improved security and performance.
- ACL for traffic filtering
- VXLAN for network virtualization
- Out-of-band management port
Scalable Uplink Options
Four SFP slots allow for fiber or copper uplinks, supporting distances up to kilometers with fiber transceivers. This flexibility ensures reliable connections to network cores or other switches in distributed environments.
- Gigabit Ethernet SFP support
- Compatible with optical fiber or twisted pair
- Stack port for easy expansion
Deployment / Use Cases
The Aruba CX 6200F is engineered for medium to large business environments where reliable, high-performance networking is critical. Its combination of PoE+ power, Layer 3 routing, and manageable features makes it suitable for a variety of professional applications.
In office buildings or campuses, this switch can serve as an access layer device, connecting end-user devices while providing power to VoIP phones and Wi-Fi access points. For retail or hospitality settings, it supports IP surveillance systems with PoE cameras and point-of-sale terminals, leveraging its high port density and PoE budget. In educational institutions or healthcare facilities, the Layer 3 capabilities enable segmented networks for different departments or security zones, ensuring compliance and efficient traffic management.
Physical Profile
Designed for standard rack installations, the switch measures 1.73 inches in height (1U), 17.40 inches in width, and 12.87 inches in depth, with an approximate weight of 11.24 pounds. Its rack-mountable form factor includes mounting brackets for secure placement in data centers or network closets, helping organize cables and maintain a professional setup. The compact 1U design maximizes space efficiency while providing full front-to-back airflow for cooling.
- Width
- 17.40" (442 mm)
- Depth
- 12.87" (327 mm)
- Height
- 1.73" (43.90 mm)
- Weight
- 11.24 lb (5100 g)
Highlights
- 48 Gigabit Ethernet PoE+ ports for high-density connectivity and device powering.
- 740W total PoE budget supports multiple PoE+ devices simultaneously.
- 4 SFP uplink slots for flexible fiber or copper expansion and long-distance links.
- Layer 3 switching enables advanced routing, VLANs, and network segmentation.
- Fully manageable with features like ACL, VXLAN, and intelligent monitoring.
- 1U rack-mountable design fits standard racks for space-efficient deployment.
- Supports redundant power supply for increased reliability in critical environments.
- Hot-swappable components allow maintenance without network downtime.
- Compliant with RoHS environmental standards for reduced hazardous substances.
- Includes USB-C, RJ-45 console, and out-of-band management ports for versatile administration.
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | S0M85A#B2B |
| Brand Name | Aruba |
| Product Series | CX 6200 |
| Product Model | CX 6200F |
| Product Name | CX 6200F 48G Class-4 PoE 4SFP 740W Switch |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | Access Control List,Intelligent monitoring,Hot-swappable,Virtual Extensible LAN (VXLAN) |
| Interfaces/Ports | |
| Total Number of Network Ports | 48 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Modular | Yes |
| Stack Port | Yes |
| Port/Expansion Slot Details | 48 x 10/100/1000BASE-T Gigabit Ethernet PoE RJ-45 Network Port,4 x Gigabit Ethernet SFP Expansion Slot,1 x USB-C Console Port,1 x RJ-45 Console Port,1 x USB Type-A Host Port,1 x Out-of-Band Management Port |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,1000Base-X |
| Maximum Data Transfer Rate | 128 MB/s |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 4 |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.3af,IEEE 802.3at,IEEE 802.1AX,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1ak,IEEE 802.1p,IEEE 802.1s,IEEE 802.1t,IEEE 802.1v,IEEE 802.1w,IEEE 802.1x,IEEE 802.3az,IEEE 802.3x,IEEE 802.3z |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 740 W |
| Input Voltage | 120 V AC,230 V AC |
| Power Source | Power Supply,AC |
| Redundant Power Supply Supported | Yes |
| Power Consumption | 76 W |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.73" (43.90 mm) |
| Width | 17.40" (442 mm) |
| Depth | 12.87" (327 mm) |
| Weight (Approximate) | 11.24 lb (5100 g) |
| Miscellaneous | |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
User Manual
FAQ
How many devices can this switch power with PoE?
The Aruba CX 6200F has a 740W PoE budget and 48 PoE+ ports compliant with IEEE 802.3af/at. It can power up to 48 devices simultaneously, with each port delivering up to 30W under PoE+. The exact number of powered devices depends on their individual power requirements, but the high budget supports dense deployments of IP phones, wireless access points, and cameras.
What are the benefits of Layer 3 switching on this switch?
Layer 3 switching provides routing capabilities between VLANs, allowing for inter-VLAN communication without an external router. This enhances network performance by reducing latency, supports dynamic routing protocols for scalable networks, and enables advanced features like access control lists for security. It's ideal for segmenting network traffic in business environments.
Can I use fiber connections with this switch?
Yes, the switch includes four SFP slots that support Gigabit Ethernet SFP transceivers. You can use fiber SFP modules for optical fiber connections, enabling long-distance links up to kilometers, or copper SFP modules for twisted-pair connections. This flexibility allows for uplinks to core switches or connections in distributed networks.
Is this switch rack-mountable and what are its dimensions?
The switch is designed for 1U rack mounting, with dimensions of 1.73 inches in height, 17.40 inches in width, and 12.87 inches in depth. It weighs approximately 11.24 pounds. This compact form factor fits standard 19-inch racks, making it suitable for data centers, wiring closets, or server rooms where space optimization is important.
Does the switch support redundant power supplies?
Yes, the Aruba CX 6200F supports redundant power supplies, allowing for increased reliability in critical network environments. By adding a second power supply, you can ensure continuous operation if one power source fails, minimizing downtime and enhancing network availability for business applications.
What management features are available on this switch?
This fully manageable switch includes features such as Access Control Lists for traffic filtering, Intelligent Monitoring for network diagnostics, Virtual Extensible LAN (VXLAN) for network virtualization, and support for IEEE 802.1x for secure network access. Management interfaces include a USB-C console port, RJ-45 console port, USB Type-A host port, and an out-of-band management port for versatile configuration and control.
What uplink, SFP, fiber, or media support detail is listed?
The warranty or support detail listed is Yes, giving buyers a clearer picture of expected coverage after purchase.
Does the product support PoE or wireless networking?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
