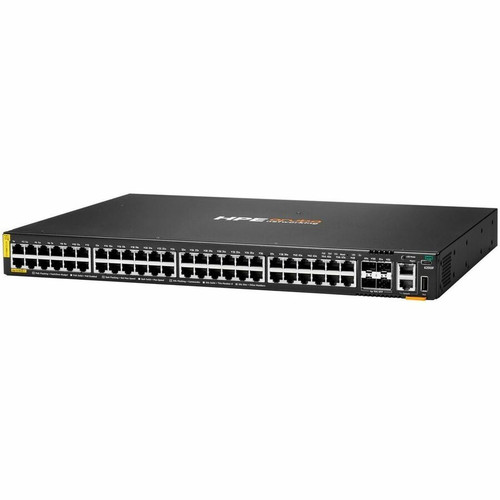

Aruba JL728B#ACD CX 6200F 48-Port Gigabit PoE+ Managed Switch - 4 SFP+ Uplinks - 740W PoE Budget - Layer 3 - 1U Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch delivers enterprise-grade switching performance with a maximum data transfer rate of 1.25 GB/s, facilitating high-speed data flow across all ports. The 48 Gigabit Ethernet ports operate at 10/100/1000Base-T speeds over twisted-pair cabling, while the four dedicated 10 Gigabit SFP+ expansion slots provide high-bandwidth uplinks for connecting to core switches, servers, or fiber backbones. These SFP+ slots support both optical fiber and copper transceivers, offering flexibility in media selection based on distance and infrastructure requirements.
Layer 3 switching capabilities enable advanced routing functions, VLAN segmentation, and policy-based traffic management directly at the switch level, reducing reliance on external routers for intra-network communication. The switch is fully manageable via a comprehensive set of protocols, including SNMP, CLI, and web-based interfaces, allowing granular control over network configuration, monitoring, and security policies.
This section brings together practical product details such as Total Number of Network Ports, Network (RJ-45), Uplink Port, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Aruba CX 6200F combines high port density with substantial PoE power, making it an ideal solution for environments where both connectivity and device power are critical. Its 740W PoE budget supports Class 4 PoE+ devices across all 48 ports, enabling simultaneous operation of power-hungry equipment without external power injectors. The integrated stack port simplifies network expansion by allowing multiple switches to be logically grouped into a single managed unit, enhancing scalability and simplifying administration.
High-Density Connectivity
With 48 Gigabit ports, this switch accommodates large workgroups, classrooms, or office floors, reducing the need for additional switches and minimizing network complexity.
- 48 x Gigabit RJ-45 ports
- 4 x 10G SFP+ uplink slots
- Stack port for easy expansion
Advanced Power Management
The 740W PoE budget ensures reliable power delivery to connected devices, with support for IEEE 802.3bt standards for high-power endpoints like PTZ cameras and advanced access points.
- 740W total PoE budget
- IEEE 802.3bt/at/af compliance
- Efficient 76W power consumption
Deployment / Use Cases
This switch is well-suited for medium to large business networks, educational campuses, healthcare facilities, and retail environments where reliable, high-speed connectivity and PoE are essential. Its 48-port configuration makes it ideal for wiring closets or distribution layers, aggregating connections from multiple devices while providing uplinks to core network infrastructure via the SFP+ slots.
In VoIP deployments, the switch can power dozens of IP phones and wireless access points simultaneously, simplifying cabling and reducing installation costs. For security installations, it supports multiple high-definition IP cameras with PoE, ensuring continuous operation without separate power sources. The Layer 3 functionality allows it to serve as a routing switch in branch offices or departmental networks, handling inter-VLAN routing and access control locally for improved performance.
Enterprise Office Networks
Deploy in office buildings to connect workstations, printers, and collaboration devices, with PoE for phones and Wi-Fi access points, and SFP+ uplinks for high-speed backbone connections.
Education and Campus Environments
Ideal for classrooms and labs, providing connectivity for student devices, interactive displays, and AV equipment, with robust management features for IT control.
Physical Profile
The switch features a compact, rack-optimized design with a height of 1.72 inches (1U), width of 17.42 inches, and depth of 12.86 inches, fitting standard 19-inch server racks. Its weight of 11.31 pounds ensures stable mounting without excessive load. The form factor supports rack-mounting, surface mounting, and cabinet installation, offering flexibility for various deployment scenarios. The built-in power supply and efficient cooling design contribute to reliable operation in enclosed spaces.
- Width
- 17.42" (442.50 mm)
- Depth
- 12.86" (326.60 mm)
- Height
- 1.72" (43.70 mm)
- Weight
- 11.31 lb (5130 g)
Highlights
- 48 Gigabit Ethernet ports with PoE+ support
- 740W total PoE budget for powering multiple devices
- 4 x 10 Gigabit SFP+ uplink slots for high-speed connectivity
- Layer 3 switching for advanced routing and VLAN management
- 1U rack-mountable design with flexible mounting options
- Stack port for easy network expansion and simplified management
- Supports twisted-pair and optical fiber media types
- Comprehensive IEEE networking standards compliance
- Manageable via SNMP, CLI, and web interfaces
- Dual voltage input (120/230V AC) for global deployment
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | JL728B#ACD |
| Brand Name | Aruba |
| Product Series | CX 6200 |
| Product Model | 6200F |
| Product Name | CX 6200F 48G Class 4 PoE 4SFP+ 740W Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 48 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Stack Port | Yes |
| Port/Expansion Slot Details | 48 x Gigabit Ethernet Network,4 x 10 Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,10GBase-X |
| Maximum Data Transfer Rate | 1.25 GB/s |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP+ |
| Shared SFP Slot | Yes |
| Number of SFP+ Slots | 4 |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.3,IEEE 802.3bt,IEEE 802.3at,IEEE 802.3az,IEEE 802.3ad,IEEE 802.1s,IEEE 802.1D,IEEE 802.1w,IEEE 802.1ab,IEEE 802.1Q,IEEE 802.1v,IEEE 802.1x,IEEE 802.1ae,IEEE 802.3af,IEEE 802.1ak,IEEE 802.1AX,IEEE 802.1t,IEEE 802.3z |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 740 W |
| Input Voltage | 120 V AC,230 V AC |
| Power Source | Power Supply |
| Power Consumption | 76 W |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable,Surface Mount,Cabinet Mount |
| Height | 1.72" (43.70 mm) |
| Width | 17.42" (442.50 mm) |
| Depth | 12.86" (326.60 mm) |
| Weight (Approximate) | 11.31 lb (5130 g) |
User Manual
FAQ
How many devices can this switch power with PoE?
The switch has a total PoE budget of 740 watts, which can power multiple PoE+ devices simultaneously across its 48 ports. The exact number of devices depends on the power requirements of each connected device, but it supports IEEE 802.3bt, 802.3at, and 802.3af standards, making it compatible with a wide range of IP phones, wireless access points, and security cameras.
What are the uplink options on this switch?
This switch includes four 10 Gigabit SFP+ uplink slots. These slots support SFP+ transceivers for either optical fiber or copper connections, providing high-speed links to core switches, servers, or network backbones. The uplinks operate at 10GBase-X speeds, ensuring sufficient bandwidth for aggregated traffic from the 48 Gigabit ports.
Does this switch support Layer 3 routing?
Yes, this is a Layer 3 managed switch, meaning it supports advanced routing functions such as inter-VLAN routing, static routing, and access control lists. This allows it to handle routing tasks locally, reducing the load on core routers and improving network performance for traffic within the same subnet or across VLANs.
What rack size is required for installation?
The switch is designed for standard 19-inch server racks and occupies 1 rack unit (1U) of vertical space. Its dimensions are 1.72 inches in height, 17.42 inches in width, and 12.86 inches in depth, making it compatible with most rack cabinets. It also supports surface and cabinet mounting for non-rack deployments.
How is this switch managed?
This is a fully manageable switch with support for multiple management protocols, including SNMP for monitoring, CLI for detailed configuration, and web-based interfaces for graphical administration. It complies with IEEE standards like 802.1Q for VLANs and 802.1x for network access control, providing granular control over network setup and security.
What types of cables are supported?
The switch supports both twisted-pair copper cables (for the 48 Gigabit RJ-45 ports) and optical fiber cables (via SFP+ transceivers in the uplink slots). The copper ports use 10/100/1000Base-T technology for distances up to 100 meters, while the SFP+ slots accommodate fiber or DAC cables for longer-distance or high-speed connections.
What uplink, SFP, fiber, or media support detail is listed?
The warranty or support detail listed is Yes, giving buyers a clearer picture of expected coverage after purchase.
Does the product support PoE or wireless networking?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
