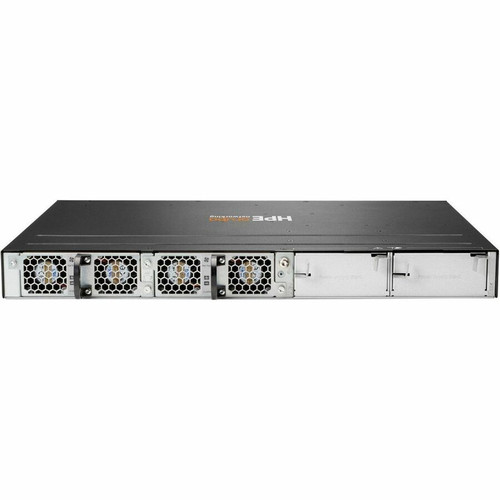

Aruba JL665A#ARB CX 6300F 48-Port 1GbE Class 4 PoE Switch with 4 SFP56 Uplinks - Layer 3 Managed - Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch operates at Layer 3, enabling advanced routing protocols and scalable network design beyond basic switching. The four SFP56 expansion slots support flexible uplink options with 1GbE, 10GbE, 25GbE, or 50GbE optical or copper transceivers, allowing for high-bandwidth backbone connections or aggregation links.
Network technologies include 10/100/1000Base-T over twisted pair and 10GBase-X, 25GBase-X, and 50GBase-X over optical fiber. Management interfaces include a USB-C console port, an out-of-band management (OOBM) port, and a USB Type A host port for local configuration and firmware updates. The built-in power supply accepts 120V or 230V AC input and maintains a typical power draw of 86 watts.
This section brings together practical product details such as Features, Total Number of Network Ports, Network (RJ-45), Uplink Port, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
High-Density PoE+ Deployment
With 48 PoE+ ports and a 740-watt budget, this switch can power and connect a large number of PoE devices simultaneously, reducing cable clutter and simplifying infrastructure for VoIP systems, wireless networks, and IoT deployments.
Future-Ready Uplink Flexibility
The four SFP56 slots provide investment protection by supporting speeds from 1GbE to 50GbE, allowing network architects to choose the right uplink technology for current needs and scale to higher bandwidth as requirements evolve.
Enterprise-Grade Management
Full Layer 3 manageability, VXLAN for network virtualization, and intelligent monitoring tools give administrators precise control over network performance, security policies, and traffic segmentation in complex environments.
Deployment / Use Cases
The Aruba CX 6300F is engineered for scenarios requiring reliable, high-performance switching with integrated power delivery and advanced routing capabilities. Its combination of port density, PoE budget, and uplink flexibility makes it suitable for aggregating access-layer traffic in medium to large office buildings, educational campuses, or retail locations.
Typical deployments include serving as a distribution switch in a multi-tier network topology, where it routes traffic between VLANs and provides high-speed uplinks to core switches or routers. The PoE+ functionality supports powering Aruba or third-party wireless access points, IP surveillance cameras, and digital signage, creating a consolidated network and power infrastructure. In smaller environments, it can act as a core switch for branch offices, delivering both connectivity and advanced features like VXLAN for secure multi-tenancy.
Physical Profile
Designed for standard 19-inch rack installation, this switch occupies 1 rack unit (1U) with a height of 1.73 inches (44 mm). Its dimensions are 17.40 inches (442 mm) wide and 12.87 inches (327 mm) deep, providing a compact footprint that maximizes rack space efficiency. The approximate weight is 11.24 pounds (5100 g), and the unit complies with RoHS environmental standards. The rack-mountable form factor includes appropriate mounting hardware for secure placement in data closets or server rooms, facilitating organized cable management through front and rear access.
- Width
- 17.40" (442 mm)
- Depth
- 12.87" (327 mm)
- Height
- 1.73" (44 mm)
- Weight
- 11.24 lb (5100 g)
Highlights
- 48 Gigabit Ethernet PoE+ ports with 740W total PoE budget
- Four SFP56 uplink slots supporting 1/10/25/50 Gigabit Ethernet
- Layer 3 managed switching with VXLAN and intelligent monitoring
- 6.25 GB/s maximum switching capacity for high-throughput networks
- Rack-mountable 1U form factor with compact dimensions
- Stack port for easy expansion and simplified management
- Dual voltage input (120V/230V AC) and 86W typical power consumption
- USB-C console, OOBM port, and USB Type A host for management
- Supports twisted pair and optical fiber media types
- RoHS compliant for environmental safety
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | JL665A#ARB |
| Brand Name | Aruba |
| Product Series | CX 6300 |
| Product Model | CX 6300F |
| Product Name | CX 6300F 48-port 1GbE Class 4 PoE and 4-port SFP56 Switch |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | Virtual Extensible LAN (VXLAN),Intelligent monitoring,Remote Monitoring (RMON) |
| Interfaces/Ports | |
| Total Number of Network Ports | 48 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Stack Port | Yes |
| Port/Expansion Slot Details | 48 x 10/100/1000Base-T Gigabit Ethernet PoE+ RJ-45 Network Port,4 x 1/10/25/50 Gigabit Ethernet SFP Expansion Slot,1 x USB-C Console Port,1 x OOBM Port;,1 x USB Type A Host Port |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet,25 Gigabit Ethernet,50 Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,10GBase-X,25GBase-X,50GBase-X |
| Maximum Data Transfer Rate | 6.25 GB/s |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP,SFP56 |
| Number of SFP Slots | 4 |
| Network & Communication | |
| Layer Supported | 3 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 740 W |
| Input Voltage | 120 V AC,230 V AC |
| Power Source | Power Supply |
| Power Consumption | 86 W |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 1.73" (44 mm) |
| Width | 17.40" (442 mm) |
| Depth | 12.87" (327 mm) |
| Weight (Approximate) | 11.24 lb (5100 g) |
| Miscellaneous | |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
User Manual
FAQ
How many devices can this switch power with PoE?
The switch has 48 PoE+ (802.3at) ports and a total PoE budget of 740 watts. The actual number of powered devices depends on the power requirements of each connected device. For example, it could support up to 48 lower-power devices like IP phones or a mix of higher-power devices like wireless access points and cameras, as long as the total does not exceed 740W.
What speeds are supported on the SFP56 uplink ports?
The four SFP56 slots support 1 Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet, and 50 Gigabit Ethernet. You can use compatible SFP, SFP+, or SFP56 optical or direct-attach copper transceivers to achieve the desired uplink speed, providing flexibility for connecting to core switches, routers, or servers.
Is this switch manageable, and what features does it support?
Yes, this is a fully managed Layer 3 switch. It supports advanced features including Virtual Extensible LAN (VXLAN) for network virtualization, intelligent monitoring, Remote Monitoring (RMON), and Layer 3 routing protocols. Management can be performed via the USB-C console port, out-of-band management port, or network-based interfaces.
Can I stack this switch with other Aruba switches?
Yes, the switch includes a stack port, allowing you to connect multiple Aruba switches together to form a single logical unit. This simplifies management, increases redundancy, and enables flexible expansion of port count and capabilities across your network.
What are the physical dimensions and rack requirements?
The switch measures 1.73 inches (44 mm) in height, 17.40 inches (442 mm) in width, and 12.87 inches (327 mm) in depth. It is designed for standard 19-inch rack mounting and occupies 1 rack unit (1U). The approximate weight is 11.24 pounds (5100 g).
What is the switching capacity and how does it affect performance?
The switch offers a maximum data transfer rate of 6.25 GB/s. This switching capacity determines the total bandwidth available for simultaneous data forwarding across all ports, ensuring high performance for traffic-intensive applications and preventing bottlenecks in aggregated network scenarios.
What uplink, SFP, fiber, or media support detail is listed?
The warranty or support detail listed is Yes, giving buyers a clearer picture of expected coverage after purchase.
Does the product support PoE or wireless networking?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
