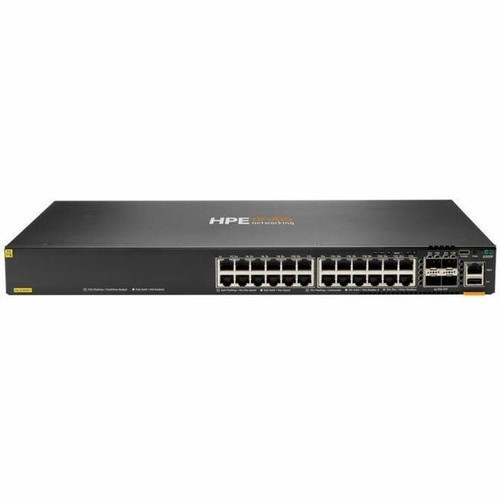

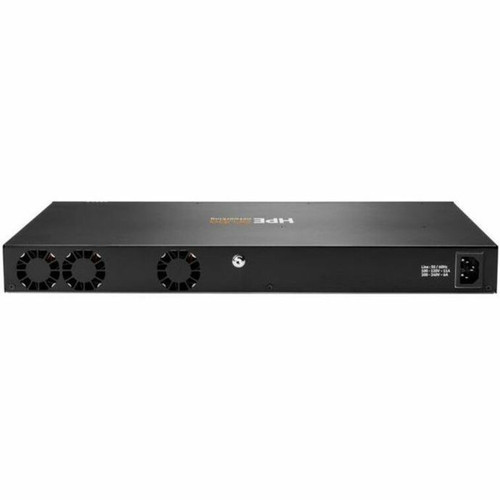

Aruba JL666AR#ABG CX 6300F Layer 3 Switch - 24 Port Gigabit PoE - 4x SFP56 Slots - 370W PoE Budget - 1U Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The Aruba CX 6300F operates at Layer 3 with a switching capacity of 6.25 GB/s, supporting Gigabit, 10G, 25G, and 50G Ethernet technologies across both twisted pair and optical fiber media. The switch features 24 RJ-45 ports with PoE capability, plus four SFP56 expansion slots for high-speed uplinks or fiber connectivity.
Power management includes support for 120V/230V AC input, redundant power supply capability, and a 950W total power consumption rating. The switch is compliant with IEEE 802.3bt, 802.3bz, 802.3at, 802.3af, and multiple 802.1 standards for quality of service, VLANs, and network security.
This section brings together practical product details such as Features, AI-powered, Total Number of Network Ports, Network (RJ-45), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The Aruba CX 6300F combines high-density PoE connectivity with advanced Layer 3 routing in a space-efficient 1U design. AI-powered management and comprehensive protocol support simplify network deployment while maintaining enterprise-grade performance and security.
High-Density PoE
All 24 Gigabit Ethernet ports deliver PoE with a 370W total budget, supporting IP phones, wireless access points, and security cameras without separate power supplies.
- 24 PoE ports
- 370W total budget
- IEEE 802.3bt/at/af compliant
Flexible Uplink Options
Four SFP56 expansion slots support multi-rate connectivity from 1G to 50G, enabling high-speed backbone connections and fiber uplinks for campus or data center deployments.
- 4x SFP56 slots
- 1G to 50G support
- Twisted pair or fiber media
Enterprise Management
Full Layer 3 routing capabilities with Aruba CX modular OS provide advanced features including dynamic routing, QoS, security policies, and centralized management.
- Layer 3 routing
- Aruba CX OS
- Centralized management
Deployment / Use Cases
The Aruba CX 6300F is engineered for medium to large enterprise networks requiring high-density PoE and advanced routing capabilities. Its 1U form factor and comprehensive feature set make it suitable for wiring closets, branch offices, and campus aggregation layers.
Typical deployments include powering and connecting IP telephony systems, wireless access points, and security cameras while providing Layer 3 routing between network segments. The switch's multi-gigabit uplink options support high-bandwidth connections to core switches or data center infrastructure.
Enterprise Wiring Closet
Deploy as an access layer switch in office buildings, providing PoE to connected devices and routing between VLANs with 24 ports of Gigabit connectivity.
Branch Office Aggregation
Serve as the primary switch for branch locations, combining local device connectivity with high-speed WAN uplinks through SFP56 fiber modules.
Physical Profile
The Aruba CX 6300F features a compact 1U rack-mountable design measuring 1.73" (43.9mm) high, 17.40" (442mm) wide, and 12.87" (327mm) deep. Weighing approximately 10.91 lb (4.95 kg), the switch includes front-accessible ports and expansion slots for easy installation in standard 19" racks or cabinets.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.73" (43.90 mm), 17.40" (442 mm), 12.87" (327 mm), 10.91 lb (4950 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.40" (442 mm)
- Depth
- 12.87" (327 mm)
- Height
- 1.73" (43.90 mm)
- Weight
- 10.91 lb (4950 g)
Highlights
- 24 Gigabit Ethernet PoE ports with 370W total budget
- Four SFP56 expansion slots for 1G to 50G uplinks
- Layer 3 switching with 6.25 GB/s throughput
- 1U rack-mountable form factor for space-efficient deployment
- Hot-swappable power supplies with redundant support
- Aruba CX modular operating system with AI-powered management
- Comprehensive IEEE standards compliance including 802.3bt PoE++
- TAA compliant for government and education deployments
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | JL666AR#ABG |
| Brand Name | Aruba |
| Product Series | CX 6300 |
| Product Model | 6300F |
| Product Name | CX 6300F Layer 3 Switch |
| Product Condition | Remanufactured |
| Product Type | Layer 3 Switch |
| Technical Information | |
| Features | Hot-swappable |
| AI-powered | Yes |
| Interfaces/Ports | |
| Total Number of Network Ports | 24 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet PoE,4 x 50 Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet,25 Gigabit Ethernet,50 Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,10GBase-X,25GBase-X,50GBase-X |
| Maximum Data Transfer Rate | 6.25 GB/s |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP56 |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.3bt,IEEE 802.3bz,IEEE 802.3at,IEEE 802.3af,IEEE 802.3az,IEEE 802.1p,IEEE 802.1ab,IEEE 802.1Q,IEEE 802.1v,IEEE 802.1x,IEEE 802.1ae |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 370 W |
| Input Voltage | 120 V AC,230 V AC |
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
| Power Consumption | 950 W |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable,Compact,Cabinet Mount |
| Height | 1.73" (43.90 mm) |
| Width | 17.40" (442 mm) |
| Depth | 12.87" (327 mm) |
| Weight (Approximate) | 10.91 lb (4950 g) |
| Miscellaneous | |
| TAA Compliant | Yes |
User Manual
FAQ
How many PoE ports does this switch have and what is the total PoE budget?
The Aruba CX 6300F has 24 Gigabit Ethernet ports that all support Power over Ethernet, with a total PoE budget of 370 watts. This budget can power multiple connected devices such as IP phones, wireless access points, and security cameras simultaneously without requiring separate power supplies.
What types of expansion slots are available for uplink connections?
This switch includes four SFP56 expansion slots that support multi-rate connectivity from 1 Gigabit to 50 Gigabit Ethernet. These slots accept SFP56 transceivers for either twisted pair copper or optical fiber connections, providing flexible uplink options for connecting to core switches or data center infrastructure.
What is the switching capacity and what Layer does this switch operate at?
The Aruba CX 6300F operates at Layer 3 with a switching capacity of 6.25 gigabytes per second. Layer 3 operation enables advanced routing capabilities including inter-VLAN routing, dynamic routing protocols, and policy-based routing for enterprise network deployments.
What rack size is required for mounting this switch?
This switch has a 1U form factor designed for standard 19-inch racks. It measures 1.73 inches (43.9mm) in height, 17.40 inches (442mm) in width, and 12.87 inches (327mm) in depth, making it suitable for space-constrained wiring closets and data center environments.
Does this switch support redundant power supplies?
Yes, the Aruba CX 6300F supports redundant power supplies with hot-swappable capability. This feature allows for continuous operation during power supply maintenance or failure, ensuring high availability for critical network infrastructure.
What management features are included with this switch?
The switch runs Aruba's CX modular operating system with AI-powered management capabilities. It includes comprehensive Layer 3 routing features, quality of service controls, security policies, and centralized management options through Aruba's network management platforms.
What uplink, SFP, fiber, or media support detail is listed?
The warranty or support detail listed is Yes, giving buyers a clearer picture of expected coverage after purchase.
Does the product support PoE or wireless networking?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
