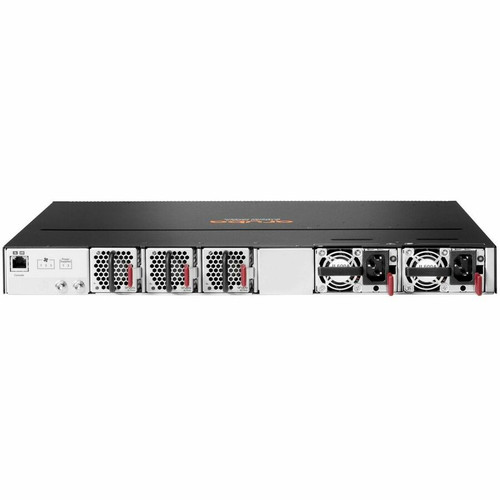

Aruba R9W86A#ACF CX 8100 24XF4C Managed Ethernet Switch - 24 x 1/10GbE + 4 x 40/100GbE SFP+/QSFP28 - Layer 3 - 1U Rackmount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch offers a maximum aggregate switching capacity of 12.50 GB/s, ensuring low-latency forwarding for high-bandwidth applications. The port configuration provides significant flexibility, with 24 slots dedicated to 1/10GbE connections and 4 high-speed slots for 40/100GbE uplinks or spine connectivity, enabling efficient network segmentation and high-speed backbone links.
The fully managed feature set includes support for a comprehensive suite of networking protocols such as IEEE 802.1Q (VLAN), 802.3ad (Link Aggregation), 802.1D/w/s (Spanning Tree), and 802.1ab (LLDP) for automated topology discovery. Layer 3 functionality supports static routing and policy-based routing for intelligent traffic management across complex network segments.
This section brings together practical product details such as Uplink Port, Modular, Port/Expansion Slot Details, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The Aruba CX 8100 24XF4C combines high port density with future-ready speed tiers, allowing network architects to design for current 10GbE access needs while预留ing capacity for 40GbE and 100GbE spine connections. The integrated Layer 3 capabilities eliminate the need for external routers in many scenarios, simplifying network architecture and reducing latency.
High-Speed Uplink Ready
Four dedicated 40/100GbE slots provide ample bandwidth for aggregation or connecting to core switches, supporting high-throughput data flows between server racks and network cores.
- Supports 40GBase-X and 100GBase-X
- Ideal for spine-leaf architectures
- Reduces uplink congestion
Resilient Power Design
Dual, hot-swappable power supplies with auto-failover ensure continuous operation, while support for 120V and 230V inputs offers deployment flexibility in different power environments.
- N+1 power redundancy
- 375W typical consumption
- AC power supply included
Centralized Management
Full manageability via CLI, web interface, or Aruba Central cloud management provides granular control over VLANs, QoS, security policies, and monitoring, streamlining network administration.
- Supports SNMP and RMON
- Role-based access control
- Configuration backup and restore
Deployment / Use Cases
This switch is engineered for roles requiring high throughput and advanced routing, such as data center top-of-rack (ToR) deployments, enterprise network cores, or aggregation layers in large campus networks. Its mix of 1/10GbE and 40/100GbE ports makes it suitable for connecting high-density server racks while providing high-speed uplinks to the network core.
In virtualized environments, the switch can handle east-west traffic between hypervisors and storage arrays. For enterprises, it can serve as a core switch for a medium-sized network, performing inter-VLAN routing and connecting multiple access switches. The 1U form factor and rack-mountable design allow for efficient use of standard 19-inch equipment racks in data centers or wiring closets.
Physical Profile
The switch features a compact 1U rack-mountable chassis with dimensions of 1.73" (H) x 17.42" (W) x 16" (D), designed for standard 19-inch equipment racks. It also supports surface and cabinet mounting for flexible installation in telecom closets or industrial settings. The robust metal construction and RoHS compliance ensure durability and environmental responsibility.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.73" (44 mm), 17.42" (442.50 mm), 16" (406.40 mm), 17.99 lb (8160 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.42" (442.50 mm)
- Depth
- 16" (406.40 mm)
- Height
- 1.73" (44 mm)
- Weight
- 17.99 lb (8160 g)
Highlights
- 24 x 1/10 Gigabit Ethernet expansion slots for high-density server connectivity.
- 4 x 40/100 Gigabit Ethernet slots for high-speed uplinks or spine connections.
- Layer 3 switching support for advanced routing and network segmentation.
- Dual hot-swappable power supplies (2 installed) for power redundancy.
- 1U rack-mountable form factor with surface and cabinet mounting options.
- Maximum data transfer rate of 12.50 GB/s for high-throughput applications.
- Supports optical fiber media (SFP+, QSFP28, SFP, QSFP+) for long-distance runs.
- Comprehensive IEEE standards compliance for interoperability.
- Fully manageable via multiple interfaces for granular network control.
- RoHS compliant for environmental safety.
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | R9W86A#ACF |
| Brand Name | Aruba |
| Product Series | CX 8100 |
| Product Model | 24XF4C |
| Product Name | CX 8100 24XF4C Ethernet Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Uplink Port | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 24 x 1/10 Gigabit Expansion Slot,4 x 40/100 Gigabit Expansion Slot |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Ethernet Technology | 10 Gigabit Ethernet,100 Gigabit Ethernet,40 Gigabit Ethernet,Gigabit Ethernet |
| Network Technology | 10GBase-X,100GBase-X,40GBase-X,1000Base-X |
| Maximum Data Transfer Rate | 12.50 GB/s |
| I/O Expansions | |
| Total Number of Expansion Slots | 28 |
| Expansion Slot Type | SFP+,QSFP28,SFP,QSFP+ |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.3ad,IEEE 802.1ab,IEEE 802.1Q,IEEE 802.1D,IEEE 802.1w,IEEE 802.1s,IEEE 802.1ak,IEEE 802.1AX,IEEE 802.1p,IEEE 802.1t,IEEE 802.1v,IEEE 802.3ab,IEEE 802.3ae,IEEE 802.3an,IEEE 802.3by,IEEE 802.3bz,IEEE 802.3cc,IEEE 802.3ba,IEEE 802.3cd,IEEE 802.3bj,IEEE 802.3x,IEEE 802.3z |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Power Source | AC,Power Supply |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 2 |
| Power Consumption | 375 W |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Surface Mount,Cabinet Mount,Rack-mountable |
| Height | 1.73" (44 mm) |
| Width | 17.42" (442.50 mm) |
| Depth | 16" (406.40 mm) |
| Weight (Approximate) | 17.99 lb (8160 g) |
| Miscellaneous | |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
User Manual
FAQ
What are the main port types on this Aruba switch?
The Aruba CX 8100 24XF4C provides 28 total expansion slots: 24 slots support 1 Gigabit or 10 Gigabit Ethernet via SFP or SFP+ transceivers, and 4 slots support 40 Gigabit or 100 Gigabit Ethernet via QSFP+ or QSFP28 transceivers. This allows flexible connectivity for both access-layer devices and high-speed uplinks.
Does this switch support Layer 3 routing?
Yes, this is a Layer 3 managed switch. It supports static routing and dynamic routing protocols, enabling inter-VLAN routing and more advanced network segmentation without requiring a separate router, which simplifies network design and improves performance for routed traffic.
What is the power supply configuration?
The switch comes with two hot-swappable power supplies installed, supporting both 120V and 230V AC input. This N+1 redundant design ensures continuous operation if one power supply fails, and the hot-swappable feature allows for replacement without downtime.
Is this switch rack-mountable?
Yes, it is designed for standard 19-inch equipment racks and occupies 1 rack unit (1U) of vertical space. It also supports surface mount and cabinet mount installations, providing flexibility for various deployment environments like data centers, wiring closets, or industrial settings.
What management options are available?
The switch is fully manageable via command-line interface (CLI), web-based graphical interface, and supports integration with Aruba Central for cloud management. It also supports SNMP for monitoring and offers features like VLAN configuration, QoS, link aggregation, and comprehensive security policies.
What type of cabling does this switch support?
This switch supports optical fiber cabling through its SFP+, QSFP28, SFP, and QSFP+ expansion slots. It is compatible with various fiber transceivers for 1GbE, 10GbE, 40GbE, and 100GbE connections, enabling long-distance, high-bandwidth links ideal for data center and backbone applications.
What uplink, SFP, fiber, or media support detail is listed?
The warranty or support detail listed is Optical Fiber, giving buyers a clearer picture of expected coverage after purchase.
What management, monitoring, or control option is listed?
10 Gigabit Ethernet,100 Gigabit Ethernet,40 Gigabit Ethernet,Gigabit Ethernet.
