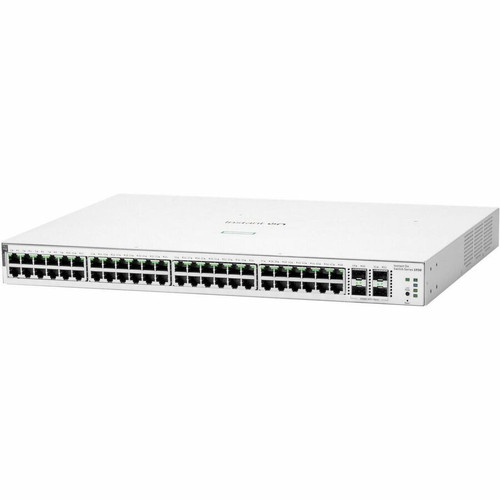

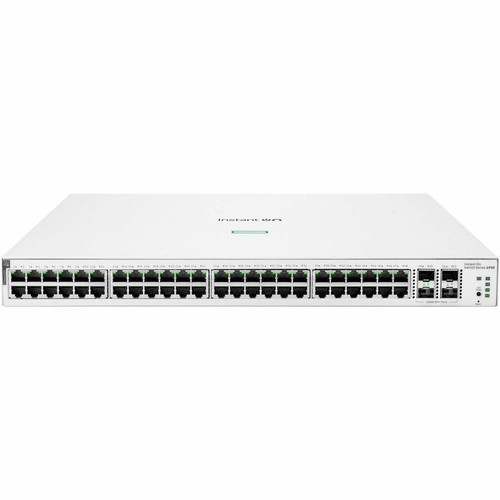

Aruba JL686B#ACD Instant On 1930 48G Class4 PoE Switch - 48 Ports - 4 SFP+ - 370W PoE - Smart Managed - 1U Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch operates as a Layer 2 smart managed switch, supporting essential networking standards including IEEE 802.3af/at for PoE, IEEE 802.1Q for VLANs, IEEE 802.1p for quality of service, and IEEE 802.1x for network access control. It features a maximum data transfer rate of 1.25 GB/s, facilitating high-throughput data movement across the network. The switch supports both twisted pair (copper) and optical fiber media types, with the SFP+ slots enabling fiber connectivity for longer-distance runs or higher bandwidth requirements.
Key technical attributes include auto Denial of Service (DoS) prevention for enhanced security, link aggregation for combining multiple ports into a single logical link to increase bandwidth and redundancy, and energy-efficient Ethernet (IEEE 802.3az) to reduce power consumption during periods of low data activity. The built-in power supply accepts input voltages of 120 V AC or 230 V AC, making it suitable for use in various regional electrical environments.
Key Product Advantages
The Aruba Instant On 1930 switch stands out by offering a high port density with substantial PoE power in a managed, rack-optimized package. Its smart management capabilities provide greater control over network traffic, security, and quality of service compared to unmanaged switches, while remaining accessible for IT administrators without requiring deep expertise in enterprise CLI management.
High-Density PoE+ Connectivity
With 48 Gigabit PoE+ ports and a 370W budget, this switch can power and connect a large array of PoE devices simultaneously, simplifying cabling and reducing the need for additional power outlets near edge devices.
- Powers IP phones, wireless APs, and cameras
- Eliminates separate power injectors
- Supports PoE (802.3af) and PoE+ (802.3at)
Flexible Uplink Options
The four SFP+ slots provide 10 Gigabit uplink capacity, allowing for high-speed connections to network cores, servers, or other switches. This ensures the switch does not become a bottleneck as network demands grow.
- 10GBase-X support for fiber or DAC cables
- Future-proofs network backbone
- Enables longer-distance fiber runs
Versatile Deployment Form Factors
Beyond standard 1U rack mounting, the switch can be wall-mounted, placed on a tabletop, installed in a cabinet, or mounted under a table, offering flexibility for different IT environments and space constraints.
- 1U rack-mountable for data centers
- Wall-mountable for wiring closets
- Table-top for small office use
Deployment / Use Cases
This switch is ideally suited for environments requiring a centralized, powered connectivity hub with management features. Its combination of port count, PoE budget, and uplink flexibility makes it a practical choice for modern business networks where both data and power need to be distributed efficiently.
Common deployment scenarios include small to medium-sized business office networks, where it can serve as the main access switch connecting workstations, printers, and VoIP phones while providing uplinks to a firewall or core switch. In retail or hospitality settings, it can power and connect point-of-sale systems, digital signage, and surveillance cameras. For educational institutions or clinics, it supports classrooms or patient rooms with connected devices, wireless access points, and IP phones, all managed through a single interface.
Office Network Aggregation
Acts as the primary switch in an office, connecting dozens of workstations and peripherals, powering VoIP phones and wireless access points, and linking to the wider network via high-speed SFP+ uplinks.
Power-Over-Ethernet Infrastructure
Deploys as the power source for a suite of PoE devices such as security cameras, access points, and IP phones in environments like warehouses, schools, or hotels, centralizing power management and reducing electrical wiring complexity.
Physical Profile
The switch has a compact, standard 1U rack-mountable design with dimensions of 1.73" (43.90 mm) in height, 17.42" (442.50 mm) in width, and 12.70" (322.60 mm) in depth. It weighs approximately 10.12 lb (4590 g). This form factor allows it to fit seamlessly into standard 19-inch equipment racks alongside other networking gear. The versatile mounting options—including wall, tabletop, cabinet, and under-table—provide installation flexibility for spaces where a full rack may not be available or practical.
- Width
- 17.42" (442.50 mm)
- Depth
- 12.70" (322.60 mm)
- Height
- 1.73" (43.90 mm)
- Weight
- 10.12 lb (4590 g)
Highlights
- 48 Gigabit Ethernet ports with PoE+ support for connecting and powering network devices.
- 4 SFP+ slots provide 10 Gigabit uplink options for high-speed backbone or server connections.
- 370-watt PoE budget delivers ample power for IP phones, wireless APs, and cameras.
- Smart managed Layer 2 switch with features like VLANs, QoS, and link aggregation.
- 1U rack-mountable design with versatile wall, tabletop, and cabinet mounting options.
- Supports a wide range of IEEE networking standards including 802.3af/at for PoE and 802.1Q for VLANs.
- Energy-efficient design with IEEE 802.3az compliance to reduce power consumption.
- Auto Denial of Service (DoS) prevention enhances network security.
- Plug-and-play setup simplifies initial deployment and configuration.
- Accepts 120 V AC or 230 V AC input for global voltage compatibility.
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | JL686B#ACD |
| Brand Name | Aruba |
| Product Line | Instant On |
| Product Series | 1930 |
| Product Name | Instant On 1930 48G Class4 PoE 4SFP/SFP+ 370W Switch |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | Plug and Play,Energy Efficient,Auto Denial of Service (DoS) Prevention,Link Aggregation |
| Interfaces/Ports | |
| Total Number of Network Ports | 48 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 48 x Gigabit Ethernet PoE+,4 x 10 Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,10GBase-X |
| Maximum Data Transfer Rate | 1.25 GB/s |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3af,IEEE 802.3at,IEEE 802.3x,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1x,IEEE 802.3az,IEEE 802.1D,IEEE 802.1w,IEEE 802.1s,IEEE 802.1ab |
| Management & Protocols | |
| Manageable | Yes |
| Switch Management Type | Smart Managed |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 370 W |
| Input Voltage | 120 V AC,230 V AC |
| Power Source | Power Supply,AC |
| Power Consumption | 520 W |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable,Wall Mountable,Table Top,Cabinet Mount,Under Table |
| Height | 1.73" (43.90 mm) |
| Width | 17.42" (442.50 mm) |
| Depth | 12.70" (322.60 mm) |
| Weight (Approximate) | 10.12 lb (4590 g) |
User Manual
FAQ
How many devices can this switch power with PoE?
The switch has a total PoE budget of 370 watts, which it can allocate across its 48 Gigabit Ethernet ports. The exact number of devices it can power depends on the power requirements of each connected PoE or PoE+ device. For example, it could power numerous lower-power devices like IP phones (typically 3-7W each) or a mix of higher-power devices like wireless access points (often 15-30W each). The switch supports both IEEE 802.3af (PoE) and 802.3at (PoE+) standards.
What are the uplink options on this Aruba switch?
This switch includes four SFP+ expansion slots that support 10 Gigabit Ethernet connections (10GBase-X). These slots can be used with compatible SFP+ transceivers for optical fiber connections or with direct-attach copper cables. These uplinks are designed for connecting to core switches, servers, or other high-bandwidth network segments, providing increased throughput and reducing potential bottlenecks in your network architecture.
Is this switch manageable, and what management features does it offer?
Yes, this is a smart managed switch. It offers Layer 2 management features through a web-based interface or mobile app, allowing for configuration of VLANs (IEEE 802.1Q), quality of service (IEEE 802.1p), link aggregation, and port-based access control (IEEE 802.1x). It also includes auto Denial of Service prevention and supports various networking protocols for a controlled and secure network environment, making it more capable than an unmanaged switch but less complex than a fully enterprise-managed switch.
Can this switch be mounted in a standard equipment rack?
Yes, the switch is designed for 1U rack mounting in a standard 19-inch equipment rack. Its dimensions are 1.73" (43.90 mm) high, 17.42" (442.50 mm) wide, and 12.70" (322.60 mm) deep, which fits the 1U space specification. It also offers alternative mounting options including wall mounting, tabletop placement, cabinet mounting, or under-table installation, providing flexibility for various deployment environments.
What is the maximum data transfer rate of this switch?
The switch has a maximum data transfer rate of 1.25 gigabytes per second (GB/s). This throughput capacity supports the aggregate traffic across its 48 Gigabit Ethernet ports and four 10 Gigabit SFP+ uplinks, ensuring efficient data handling for business applications, file transfers, and multimedia traffic without performance degradation under typical loads.
Does this switch support fiber optic connections?
Yes, the switch supports optical fiber connections through its four SFP+ slots. By installing compatible SFP+ fiber transceivers, you can connect the switch to other fiber-enabled network devices using fiber optic cables. This allows for longer distance connections (beyond the 100-meter limit of copper Ethernet) and can provide immunity to electromagnetic interference, making it suitable for connections between buildings or across large facilities.
What uplink, SFP, fiber, or media support detail is listed?
The warranty or support detail listed is Yes, giving buyers a clearer picture of expected coverage after purchase.
Does the product support PoE or wireless networking?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
