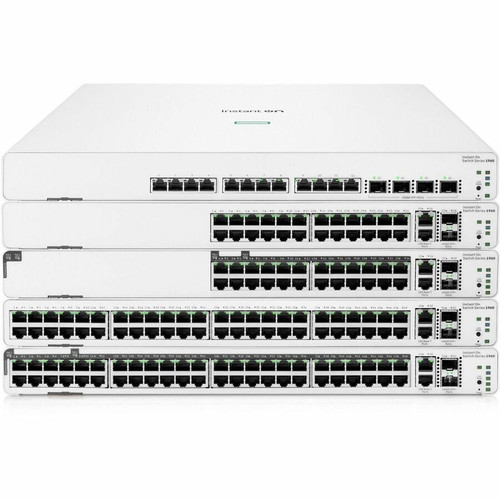

Aruba JL805A#B2C Instant On 1960 12XGT 4SFP+ Switch - 12-Port Managed 10GbE Layer 2
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch operates at Layer 2, supporting a comprehensive set of networking standards including IEEE 802.1Q for VLANs, IEEE 802.3ad for link aggregation, and IEEE 802.1x for network access control. The 10 Gigabit Ethernet technology ensures data transfer rates up to 10 Gbps per port, compatible with both 10GBase-T over twisted pair and 10GBase-X over optical fiber via the SFP+ slots.
Management is facilitated through HTTP and HTTPS protocols, allowing for web-based configuration and monitoring. The switch includes features like DHCP snooping for security, loop protection for network stability, and access control lists for traffic filtering. Its energy-efficient design minimizes power draw without compromising performance.
This section brings together practical product details such as Data Link Protocols, Features, Total Number of Network Ports, Network (RJ-45), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Aruba Instant On 1960 switch combines high-density 10GbE connectivity with managed features in a versatile form factor, ideal for businesses upgrading to faster network backbones.
High-Speed Port Density
12 10GbE ports provide ample connectivity for servers, storage, and high-performance workstations, reducing bottlenecks in data-intensive environments.
- 10GBase-T support for copper cabling
- 4 SFP+ slots for fiber uplinks or long-distance connections
Advanced Management & Security
Layer 2 management capabilities include VLANs, QoS, and ACLs, enabling precise control over network traffic and enhanced security policies.
- Web-based management via HTTP/HTTPS
- DHCP snooping and loop protection features
Flexible Deployment Options
Designed for multiple mounting styles, this switch can be installed in racks, on walls, or placed on tabletops, adapting to various office layouts and space constraints.
- Rack-mountable with 1U height
- Wall and under-table mounting support
Deployment / Use Cases
This switch is well-suited for environments where reliable, high-speed networking is critical, such as small business server rooms, educational institutions, and professional offices. Its 10GbE ports make it ideal for connecting NAS devices, virtualization hosts, and editing workstations that require fast data transfer.
The SFP+ uplinks allow for fiber connections to core switches or between buildings, extending network reach without signal degradation. In retail settings, it can support POS systems, surveillance cameras, and inventory management terminals, with managed features ensuring network segmentation and security.
Server Room Aggregation
Use as a top-of-rack switch to aggregate traffic from multiple servers, providing 10GbE connectivity to each device and uplinking to core infrastructure via SFP+.
Branch Office Backbone
Deploy in remote offices to handle local network traffic, with fiber uplinks connecting back to headquarters for seamless integration into the corporate WAN.
Physical Profile
The switch features a compact, 1U rack-mountable design with dimensions of 1.73 inches in height, 17.42 inches in width, and 13.80 inches in depth, making it easy to integrate into standard server racks or network cabinets. Its weight of 9.60 pounds ensures stability while remaining manageable for installation. The fanless construction reduces noise, making it suitable for office environments where quiet operation is preferred. Multiple mounting options include tabletop, wall, under-table, and cabinet mounts, offering flexibility for various installation scenarios.
- Width
- 17.42" (442.50 mm)
- Depth
- 13.80" (350.50 mm)
- Height
- 1.73" (43.95 mm)
- Weight
- 9.60 lb (4354.49 g)
Highlights
- 12 10 Gigabit Ethernet ports for high-speed network connectivity
- 4 SFP+ uplink slots supporting fiber or copper transceivers
- Layer 2 managed switch with VLAN, QoS, and ACL support
- Fanless design for silent operation in office environments
- Versatile mounting options: rack, wall, tabletop, and under-table
- Web-based management via HTTP and HTTPS protocols
- Energy-efficient with 80W power consumption
- Supports stacking for easy network expansion
- Compatible with optical fiber and twisted pair media
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | JL805A#B2C |
| Brand Name | Aruba |
| Product Line | Instant On |
| Product Series | 1960 |
| Product Name | Instant On 1960 12XGT 4SFP+ Switch |
| Product Type | Ethernet Switch |
| Technical Information | |
| Data Link Protocols | HTTP,HTTPS |
| Features | Energy Efficient,Fanless,DHCP Snooping,Loop Protection,Access Control List |
| Interfaces/Ports | |
| Total Number of Network Ports | 12 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Modular | Yes |
| Stack Port | Yes |
| Port/Expansion Slot Details | 12 x 10 Gigabit Ethernet Network,4 x 10 Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10GBase-T,10GBase-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.1x,IEEE 802.1p,IEEE 802.1D,IEEE 802.1w,IEEE 802.1s,IEEE 802.3az,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3an,IEEE 802.3i,IEEE 802.3z,IEEE 802.3ae,IEEE 802.3x,IEEE 802.1Q,IEEE 802.3ad,IEEE 802.3ac,IEEE 802.1t |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Power Source | Power Supply |
| Number of Power Supplies Installed | 1 |
| Power Consumption | 80 W |
| Physical Characteristics | |
| Form Factor | Rack-mountable,Table Top,Wall Mountable,Under Table,Cabinet Mount |
| Height | 1.73" (43.95 mm) |
| Width | 17.42" (442.50 mm) |
| Depth | 13.80" (350.50 mm) |
| Weight (Approximate) | 9.60 lb (4354.49 g) |
User Manual
FAQ
What is the total number of ports on this Aruba switch?
The Aruba Instant On 1960 switch has 12 10 Gigabit Ethernet ports for network devices, plus 4 SFP+ uplink slots for expansion or fiber connections, providing a total of 16 physical ports for connectivity.
Does this switch support Power over Ethernet (PoE)?
No, this switch does not support Power over Ethernet. It is a non-PoE 10GbE switch designed for data connectivity, requiring separate power sources for connected devices like phones or cameras.
What are the SFP+ slots used for?
The 4 SFP+ slots are uplink ports that support 10 Gigabit Ethernet connections using SFP+ transceivers. They allow for fiber optic or direct-attach copper cabling to connect to other switches, servers, or network infrastructure over longer distances.
Is this switch manageable, and how is it configured?
Yes, this is a fully manageable Layer 2 switch. Configuration and monitoring are done through a web-based interface accessible via HTTP or HTTPS, providing control over VLANs, security settings, and network performance features.
Can this switch be mounted in a server rack?
Yes, the switch is rack-mountable with a 1U height profile. It includes mounting hardware for standard 19-inch racks, and its compact dimensions make it suitable for data center or network closet installations.
What networking standards does this switch support?
The switch supports a range of IEEE standards including 802.1Q for VLANs, 802.3ad for link aggregation, 802.1x for authentication, and 802.3az for energy efficiency, ensuring compatibility with modern network environments and protocols.
What uplink, SFP, fiber, or media support detail is listed?
The warranty or support detail listed is Yes, giving buyers a clearer picture of expected coverage after purchase.
