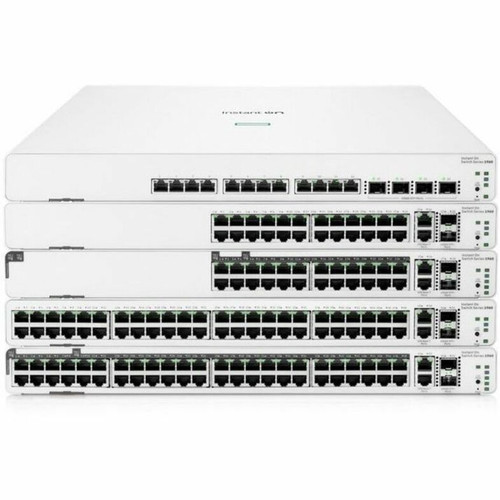

Aruba S0F35A Instant On 1960 Managed Ethernet Switch - 14 Ports - 8x PoE - 4 x 2. 5G PoE+ - 2 x 10G - 480W PoE Budget - 1U Rack/Wall Mount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Layer 2 switch provides a total of 14 network ports, configured as eight Gigabit Ethernet PoE ports, four 2.5 Gigabit Ethernet PoE+ ports, and two 10 Gigabit Ethernet uplink ports. The integrated 480-watt PoE budget supports high-power devices across the PoE and PoE+ ports, delivering both data and up to 25.5 watts per port where needed.
Two SFP+ expansion slots allow for fiber optic or high-speed copper uplinks, extending network reach and bandwidth. The switch operates on standard 120V or 230V AC power and consumes 635 watts under full load. It supports twisted pair and optical fiber media, adhering to key IEEE standards including 802.3bz for 2.5G/5G BASE-T and 802.3an for 10GBASE-T.
This section brings together practical product details such as Features, Total Number of Network Ports, Network (RJ-45), Uplink Port, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Aruba Instant On 1960 switch stands out with its balanced port configuration and substantial PoE budget, designed to grow with your network demands. Its smart management interface simplifies setup and monitoring while maintaining enterprise-grade security and reliability.
Versatile Port Mix
Combines Gigabit PoE, 2.5G PoE+, and 10G uplinks in a single compact unit, accommodating diverse device types and future bandwidth needs without requiring multiple switches.
- 8x Gigabit PoE for standard devices
- 4x 2.5G PoE+ for higher-speed endpoints
- 2x 10G uplinks for backbone connectivity
Substantial PoE Power
With a 480-watt PoE budget, this switch can power multiple high-demand devices simultaneously, such as VoIP phones, security cameras, and wireless access points, reducing cable clutter and installation costs.
- Supports PoE+ (802.3at) standards
- Delivers up to 25.5W per PoE+ port
- Eliminates need for separate power injectors
Flexible Deployment Options
The 1U form factor is equally suited for standard rack mounting or wall mounting, offering installation flexibility in space-constrained environments like wiring closets, retail spaces, or classrooms.
- Rack-mountable in standard 19" racks
- Wall-mountable with optional kit
- Compact depth for shallow enclosures
Deployment / Use Cases
This switch is engineered for small to medium business networks, branch offices, and retail environments where reliable, managed connectivity and PoE are essential. Its mix of port speeds and PoE capabilities makes it ideal for converged networks that carry data, voice, and video traffic.
Typical deployments include supporting VoIP phone systems with powered handsets, connecting multiple wireless access points for seamless Wi-Fi coverage, and linking surveillance cameras in security systems. The 10G uplinks ensure smooth backbone connectivity to core switches or servers, while the 2.5G ports are ready for emerging devices like high-performance Wi-Fi 6 access points.
Unified Office Network
Deploy as the core switch in an office to connect computers, printers, IP phones, and access points, using PoE to simplify installation and reduce power outlets.
Retail or Hospitality Backbone
Use in retail stores or hotels to support point-of-sale systems, digital signage, guest Wi-Fi, and security cameras, with wall mounting to keep floors clear.
Physical Profile
The switch measures 1.73 inches high, 17.42 inches wide, and 15.86 inches deep, fitting a standard 1U rack space with a footprint designed for typical server cabinets. Its weight of 10.80 pounds ensures stability when rack-mounted, while the wall-mount capability offers an alternative for locations without rack infrastructure. The compact depth allows installation in shallow network enclosures, and the robust metal construction supports reliable operation in varied environments.
- Width
- 17.42" (442.50 mm)
- Depth
- 15.86" (402.80 mm)
- Height
- 1.73" (44 mm)
- Weight
- 10.80 lb (4900 g)
Highlights
- 14 total network ports with 8 Gigabit PoE, 4 2.5G PoE+, and 2 10G uplinks
- 480-watt PoE budget to power IP phones, cameras, and access points
- Smart managed with Layer 2 switching and Auto DoS prevention
- Two SFP+ expansion slots for fiber or high-speed copper uplinks
- 1U rack-mountable or wall-mountable form factor
- Supports 10/100/1000BASE-T, 2.5GBASE-T, and 10GBASE-T networking
- Stack port for cascading with other switches to expand networks
- Operates on 120V or 230V AC power with 635W consumption
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | S0F35A |
| Brand Name | Aruba |
| Product Line | Instant On |
| Product Series | 1960 |
| Product Name | Instant On 1960 Ethernet Switch |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | Auto Denial of Service (DoS) Prevention |
| Interfaces/Ports | |
| Total Number of Network Ports | 14 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Stack Port | Yes |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet PoE,4 x 2.5 Gigabit Ethernet PoE+,2 x 10 Gigabit Ethernet Network,2 x Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet,2.5 Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,1000Base-X,10GBase-T,2.5GBase-T |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 2 |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.1x,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3bz,IEEE 802.3an |
| Management & Protocols | |
| Manageable | Yes |
| Switch Management Type | Smart Managed |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 480 W |
| Input Voltage | 120 V AC,230 V AC |
| Power Source | Power Supply,AC,PoE+ |
| Power Consumption | 635 W |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable,Wall Mountable |
| Height | 1.73" (44 mm) |
| Width | 17.42" (442.50 mm) |
| Depth | 15.86" (402.80 mm) |
| Weight (Approximate) | 10.80 lb (4900 g) |
User Manual
FAQ
How many PoE ports does this Aruba switch have, and what is the total PoE budget?
This switch includes 8 Gigabit Ethernet PoE ports and 4 2.5 Gigabit Ethernet PoE+ ports, providing PoE capability across 12 of its 14 total ports. The total PoE budget is 480 watts, which can deliver up to 25.5 watts per port on the PoE+ ports, sufficient to power multiple devices like VoIP phones, wireless access points, or security cameras simultaneously without additional power sources.
What are the uplink options on the Aruba Instant On 1960 switch?
The switch features two built-in 10 Gigabit Ethernet uplink ports for high-speed backbone connections. Additionally, it includes two SFP+ expansion slots that support fiber optic or copper SFP+ modules, allowing flexible uplink configurations to connect to core switches, servers, or wider network infrastructure. This combination ensures ample bandwidth for aggregating traffic from the lower-speed access ports.
Is this switch manageable, and what management features does it offer?
Yes, this is a smart managed switch. It provides a web-based management interface for configuration, monitoring, and troubleshooting. Key management features include VLAN support, Quality of Service (QoS) settings, port configuration, and Auto Denial of Service (DoS) prevention for enhanced network security. The smart managed approach balances advanced control with user-friendly operation, suitable for IT administrators in small to medium businesses.
Can this switch be mounted in a rack or on a wall?
Yes, the switch is designed for both rack mounting and wall mounting. It fits a standard 1U rack space in a 19-inch rack, with dimensions of 1.73 inches high, 17.42 inches wide, and 15.86 inches deep. For wall mounting, it can be installed using optional mounting brackets, making it versatile for environments like server rooms, closets, or offices where rack space may be limited.
What networking standards does this switch support?
The switch complies with key IEEE standards, including IEEE 802.3u for Fast Ethernet, IEEE 802.3ab for Gigabit Ethernet over copper, IEEE 802.3bz for 2.5G/5G BASE-T, IEEE 802.3an for 10GBASE-T, and IEEE 802.1x for network access control. It supports media types of twisted pair and optical fiber, ensuring compatibility with a wide range of network cables and devices from legacy to modern equipment.
What is the power consumption and input voltage for this switch?
The switch has a power consumption of 635 watts under full load, which includes both the switch's operational power and the PoE budget. It accepts input voltages of 120V AC or 230V AC, making it suitable for use in North America and international regions. The power source is AC via an internal power supply, and it also supports PoE+ for delivering power to connected devices.
What uplink, SFP, fiber, or media support detail is listed?
The warranty or support detail listed is Yes, giving buyers a clearer picture of expected coverage after purchase.
Does the product support PoE or wireless networking?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
