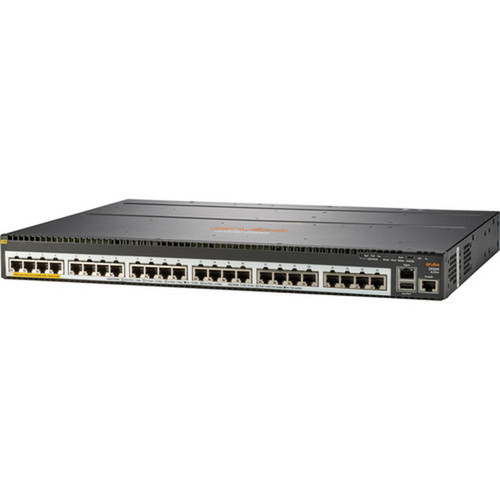

Aruba JL324A 2930M 24-Port 5GbE Smart Rate PoE+ Layer 3 Switch - Modular - Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch operates at Layer 3, enabling advanced routing capabilities for scalable network segmentation and efficient traffic management across subnets. It supports 5 Gigabit Ethernet technology (5GBase-T) over twisted-pair cabling, delivering high data throughput for bandwidth-intensive applications like video streaming, large file transfers, and virtualized environments.
The modular design includes two expansion slots that accept uplink modules for fiber connectivity or stacking modules to combine multiple switches into a single logical unit. This modularity allows network administrators to tailor uplink speeds and stacking configurations based on evolving needs without replacing the entire switch.
Relevant factors for this section include Total Number of Network Ports, Uplink Port, Modular, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Aruba 2930M switch offers distinct advantages for modern network deployments, starting with its 24-port 5GbE architecture that future-proofs connectivity beyond traditional Gigabit speeds. HPE Smart Rate PoE+ support ensures efficient power delivery to connected devices like access points, IP cameras, and VoIP phones, simplifying cabling and reducing power infrastructure costs.
Scalable Design
Layer 3 capabilities and stacking support enable network growth without performance bottlenecks, ideal for expanding office networks or campus environments.
- Inter-VLAN routing
- Logical stacking of multiple units
- Modular uplink options
Reliability Features
Built-in power supply with redundant power support and a lifetime warranty ensures continuous operation and long-term investment protection.
- Redundant power ready
- Lifetime warranty coverage
- Rack-mount stability
Deployment / Use Cases
This switch is well-suited for medium to large business networks where high-speed access and power over Ethernet are critical. Its 24-port count and 5GbE speed make it ideal for connecting workstations, servers, and PoE devices in office buildings, educational campuses, or retail environments requiring robust wired infrastructure.
The modular uplink slots allow integration with fiber backbones for long-distance connections between buildings or to core switches, while stacking support simplifies management of multiple switches in distributed deployments. IT teams can deploy it in wiring closets, server rooms, or network racks to consolidate connectivity and power delivery into a single, manageable unit.
Office Network Core
Serve as an access or distribution layer switch for departments with high bandwidth needs, supporting VoIP, video conferencing, and data-intensive applications.
PoE Deployment Hub
Power and connect IP cameras, wireless access points, and other PoE devices across floors or buildings, reducing separate power adapters and cabling.
Physical Profile
The switch features a compact 1U rack-mountable form factor with dimensions of 1.73" height, 17.42" width, and 12.77" depth, fitting standard 19-inch racks for organized installation. Its approximate weight of 9.92 lb ensures easy handling during deployment, and the standalone capability allows flexibility for temporary or desktop use where rack space is limited.
- Width
- 17.42" (442.50 mm)
- Depth
- 12.77" (324.30 mm)
- Height
- 1.73" (43.90 mm)
- Weight
- 9.92 lb (4499.64 g)
Highlights
- 24-port 5 Gigabit Ethernet switch for high-speed network access
- HPE Smart Rate PoE+ support powers connected devices efficiently
- Layer 3 routing capabilities for scalable network design
- Two modular expansion slots for uplink or stacking modules
- Stack port enables easy expansion to multiple switch units
- Rack-mountable 1U form factor with standalone flexibility
- Built-in power supply with redundant power support
- Lifetime warranty for long-term reliability and value
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | JL324A |
| Brand Name | HPE |
| Product Series | 2930M |
| Product Name | 2930M 24 HPE Smart Rate PoE+ 1-slot Switch |
| Product Type | Layer 3 Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 24 |
| Uplink Port | Yes |
| Modular | Yes |
| Stack Port | Yes |
| Port/Expansion Slot Details | 24 x 5 Gigabit Ethernet Network,2 x Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | 5 Gigabit Ethernet |
| Network Technology | 5GBase-T |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | Uplink Module,Stacking Module |
| Network & Communication | |
| Layer Supported | 3 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
| Physical Characteristics | |
| Form Factor | Rack-mountable,Standalone |
| Height | 1.73" (43.90 mm) |
| Width | 17.42" (442.50 mm) |
| Depth | 12.77" (324.30 mm) |
| Weight (Approximate) | 9.92 lb (4499.64 g) |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What is the port speed and count on this Aruba switch?
This switch provides 24 network ports, each operating at 5 Gigabit Ethernet (5GbE) speed using 5GBase-T technology over twisted-pair cabling. This offers five times the bandwidth of standard Gigabit Ethernet ports, supporting high-throughput applications like video streaming, large file transfers, and virtual desktop infrastructure without bottlenecks.
Does this switch support Power over Ethernet (PoE)?
Yes, it supports HPE Smart Rate PoE+, which delivers power efficiently to connected devices such as wireless access points, IP cameras, and VoIP phones. This simplifies installation by eliminating the need for separate power adapters at each device location, reducing cabling clutter and power infrastructure costs in office or campus environments.
What are the expansion capabilities of the Aruba 2930M switch?
The switch includes two modular expansion slots that accept uplink modules for fiber connectivity or stacking modules to combine multiple switches into a single logical unit. This modularity allows network administrators to customize uplink speeds (e.g., 10GbE fiber) or enable stacking for simplified management and increased port density as the network grows.
Is this a Layer 2 or Layer 3 switch?
This is a Layer 3 switch, meaning it supports advanced routing functions like inter-VLAN routing and static routing. Layer 3 capabilities enable scalable network design by allowing traffic to be routed between different subnets without relying on an external router, improving performance and reducing latency in medium to large business networks.
Can this switch be rack-mounted, and what are its dimensions?
Yes, it is designed for rack-mounting in a standard 19-inch rack with a 1U height (1.73 inches). The dimensions are 17.42 inches wide and 12.77 inches deep, making it compact for wiring closets or server rooms. It also supports standalone use for temporary deployments or locations where rack space is not available.
What warranty is included with the Aruba JL324A switch?
The switch comes with a lifetime warranty, providing long-term coverage for hardware defects and ensuring reliability over its operational life. This warranty supports business continuity by minimizing downtime risks and protecting your investment in network infrastructure, which is crucial for maintaining seamless connectivity in critical environments.
