Aruba JL728A#B2B 6200F 48G Class4 PoE 4SFP+ 740W Switch - 48 Port Gigabit PoE+ Managed Layer 3 - 4 x 10G SFP+ Uplinks - 1U Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Aruba switch operates at Layer 3, enabling advanced routing functions for scalable network segmentation and efficient inter-VLAN traffic management. It supports key networking standards including IEEE 802.3af and 802.3at for PoE and PoE+ device compatibility. The 48 RJ-45 ports deliver Gigabit Ethernet speeds with auto-negotiation and auto-MDI/MDIX for plug-and-play connectivity.
The four SFP+ expansion slots accept 10GBase-X transceivers for high-performance fiber or copper uplinks, offering up to 10x the throughput of standard Gigabit Ethernet. The integrated stack port allows multiple switches to be logically combined into a single managed entity, simplifying configuration and monitoring. With a power consumption of 76 watts under typical load, the switch balances performance with energy efficiency.
Relevant factors for this section include Total Number of Network Ports, Network (RJ-45), Uplink Port, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Aruba 6200F switch stands out with its high-density PoE+ design and flexible uplink options, making it ideal for powering and connecting modern network endpoints. Its 740-watt PoE budget ensures reliable power delivery to multiple devices simultaneously, reducing the need for additional power injectors or midspan equipment.
High-Density PoE+
With 48 PoE+ ports and 740W total budget, this switch can power numerous IP phones, wireless APs, and IoT devices across an entire floor or department.
- Supports IEEE 802.3at PoE+
- Backward compatible with 802.3af
- Distributes power intelligently across ports
Scalable Uplink Capacity
Four SFP+ slots provide 10 Gigabit uplink connectivity for aggregating traffic to core switches or servers, preventing bottlenecks in high-traffic scenarios.
- 10GBase-X support
- Fiber or copper SFP+ options
- Future-proofs network backbone
Unified Management
Stacking capability lets you manage multiple switches as one logical unit, streamlining configuration, monitoring, and troubleshooting across the network.
- Single management interface
- Simplified firmware updates
- Consistent policy application
Deployment / Use Cases
This switch is engineered for environments requiring reliable, high-capacity wired connectivity with power-over-Ethernet support. Its 48-port density makes it suitable for wiring closets in medium to large offices, where it can connect workstations, printers, and powered devices while providing uplinks to the network core.
In retail settings, the switch can support point-of-sale systems, digital signage, inventory scanners, and security cameras—all powered through PoE. Educational institutions benefit from its ability to handle classroom computers, projectors, and wireless access points across multiple rooms or floors. The Layer 3 capabilities enable network segmentation for different departments or security zones, while the rack-mount form factor ensures neat installation in server rooms or network cabinets.
Office Network Aggregation
Deploy as a distribution switch to connect multiple workgroups, providing PoE to IP phones and wireless APs while routing traffic between VLANs.
Unified Communications Ready
Ideal for VoIP deployments, powering IP phones and conference systems while ensuring quality of service for voice and video traffic.
Physical Profile

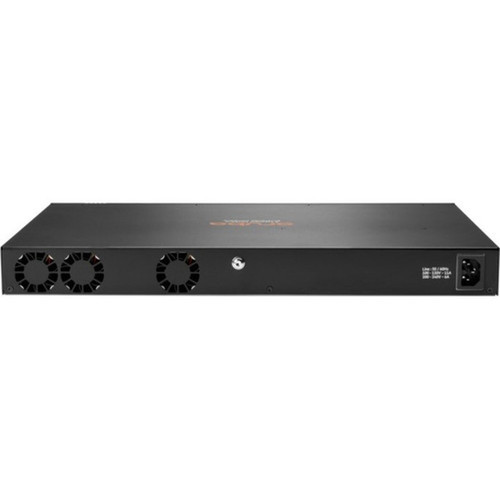

The switch features a compact 1U rack-mountable chassis with dimensions of 1.73" (44 mm) height, 17.40" (442 mm) width, and 12.90" (328 mm) depth. Its steel construction ensures durability in rack environments, while the included two-post rack kit simplifies installation. The internal power supply and fans are non-pluggable and housed behind the chassis frame, maintaining a clean exterior. Weighing 11.24 pounds, the switch is manageable for one person to install in standard 19-inch racks, cabinets, or even surface-mount locations where rack space is limited.
- Width
- 17.40" (441.96 mm)
- Depth
- 12.90" (327.66 mm)
- Height
- 1.73" (43.94 mm)
- Weight
- 11.24 lb (5098.378239 g)
What's in the Box
The package includes the Aruba 6200F 48G Class4 PoE 4SFP+ 740W Switch and a two-post rack mounting kit for immediate deployment. The switch comes with non-pluggable internal power supply and fans integrated behind the sheetmetal chassis frame.
Highlights
- 48 Gigabit Ethernet PoE+ ports with 740W total power budget
- Four 10 Gigabit SFP+ uplink slots for high-speed backbone connectivity
- Layer 3 managed switch with advanced routing and QoS capabilities
- Stack port for simplified management of multiple switch units
- 1U rack-mountable design with included two-post rack kit
- Supports IEEE 802.3af and 802.3at PoE standards
- Compatible with both twisted pair and optical fiber media
- Lifetime limited warranty for long-term reliability
- TAA compliant for government and regulated deployments
- RoHS and WEEE environmental compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | JL728A#B2B |
| Brand Name | HPE |
| Product Series | CX 6200 |
| Product Name | 6200F 48G Class4 PoE 4SFP+ 740W Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 48 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Modular | Yes |
| Stack Port | Yes |
| Port/Expansion Slot Details | 48 x Gigabit Ethernet PoE+,4 x 10 Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,10GBase-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 4.0 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.3af,IEEE 802.3at |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 740 W |
| Power Source | Power Supply |
| Power Consumption | 76 W |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable,Cabinet Mount,Surface Mount |
| Height | 1.73" (43.94 mm) |
| Width | 17.40" (441.96 mm) |
| Depth | 12.90" (327.66 mm) |
| Weight (Approximate) | 11.24 lb (5098.378239 g) |
| Miscellaneous | |
| Package Contents | 6200F 48G Class4 PoE 4SFP+ 740W Switch 2-post Rack Kit Included Non-Pluggable, Internal PSU Behind Sheetmetal Chassis Frame Non-Pluggable, Internal Fans Behind Sheetmetal Chassis Frame |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What is the total PoE power budget of this Aruba switch?
The Aruba JL728A#B2B switch provides a 740-watt PoE budget across its 48 Gigabit Ethernet ports. This substantial power allocation allows the switch to simultaneously support multiple PoE+ devices like wireless access points, IP phones, and security cameras without requiring additional power sources. The budget is managed intelligently to distribute power where needed while maintaining overall system stability.
How many SFP+ uplink slots does this switch have?
This switch includes four SFP+ expansion slots that support 10 Gigabit Ethernet connections. These slots accept standard SFP+ transceivers for either fiber optic or copper cabling, providing flexible uplink options to core switches, servers, or network storage. The 10G uplinks help prevent bottlenecks in high-traffic environments and future-proof your network backbone.
Is this a Layer 2 or Layer 3 switch?
The Aruba 6200F operates as a Layer 3 managed switch, meaning it can perform basic routing functions between VLANs and subnets. This capability allows for more scalable network designs, efficient traffic management, and improved security through inter-VLAN routing policies. Layer 3 functionality makes this switch suitable for distribution layer deployments in segmented networks.
What rack space does this switch require for installation?
The switch occupies 1U (one rack unit) of vertical space in a standard 19-inch rack. Its dimensions are 1.73 inches (44 mm) in height, 17.40 inches (442 mm) in width, and 12.90 inches (328 mm) in depth. The package includes a two-post rack mounting kit for immediate installation in server rooms or network cabinets.
Does this switch support stacking for simplified management?
Yes, this Aruba switch includes a stack port that allows multiple units to be connected and managed as a single logical entity. Stacking simplifies configuration, monitoring, and firmware updates across multiple switches, reducing administrative overhead. This feature is particularly valuable in larger deployments where consistency and centralized management are important.
What warranty comes with this Aruba network switch?
Aruba provides a lifetime limited warranty for this switch, covering defects in materials and workmanship for the product's usable life. This warranty reflects the switch's enterprise-grade build quality and reliability. The switch is also TAA compliant for government deployments and meets RoHS and WEEE environmental standards.
