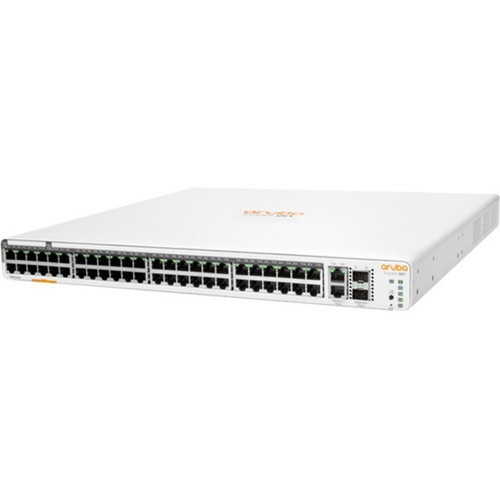

Aruba JL809A#ABA Instant On 1960 48G 40p Class4 8p Class6 PoE+ 2XGT 2SFP+ 600W Switch - 48-Port Managed Layer 2 Gigabit/10G Ethernet
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch provides 48 Gigabit Ethernet ports, with 40 supporting PoE+ (IEEE 802.3at) and 8 supporting higher-power PoE++ (IEEE 802.3bt) for devices like pan-tilt-zoom cameras or advanced access points. The 600W total PoE budget ensures ample power for connected devices without overloading the system.
For network aggregation, it includes two 10 Gigabit Ethernet ports and two SFP+ slots, supporting 10GBase-T and 10GBase-X for copper or fiber uplinks. As a Layer 2 managed switch, it supports essential protocols like IEEE 802.1Q VLANs, IEEE 802.3ad Link Aggregation, and IEEE 802.1x for network security and control.
Relevant factors for this section include Total Number of Network Ports, Network (RJ-45), Uplink Port, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Aruba Instant On 1960 switch offers a stack port for easy network expansion, allowing multiple switches to be managed as a single unit. Its comprehensive suite of Layer 2 features—including IGMP snooping for multicast traffic optimization, port mirroring for network analysis, and spanning tree protocols for loop prevention—ensures reliable and efficient network operation.
High-Density PoE+ Design
With 48 ports and a 600W budget, this switch can power and connect numerous PoE devices simultaneously, reducing the need for additional power injectors and simplifying cable management.
- 40 PoE+ ports (Class 4)
- 8 PoE++ ports (Class 6)
- Supports high-power devices like PTZ cameras
Scalable Uplink Connectivity
Dual 10 Gigabit Ethernet ports and SFP+ slots provide flexible, high-speed uplink options to core switches or servers, preventing bottlenecks in growing networks.
- 2x10G copper ports
- 2xSFP+ slots for fiber
- Supports 10GBase-T and 10GBase-X
Deployment / Use Cases
This switch is well-suited for environments demanding both high port density and PoE capabilities. Its manageable nature allows IT administrators to configure VLANs, quality of service (QoS), and security settings, making it adaptable to various network policies.
The flexible mounting options—rack, wall, tabletop, or under-table—enable installation in space-constrained areas like network closets or retail counters, supporting professional cable management and tidy deployments.
Unified Office Network
Deploy as the central switching hub in small to medium-sized offices, connecting computers, printers, and VoIP phones while powering Wi-Fi access points and security systems through PoE.
Retail or Education Environments
Ideal for retail stores or classrooms where multiple PoE devices like point-of-sale systems, digital signage, IP cameras, and wireless access points require reliable power and connectivity.
Physical Profile
The switch features a compact 1U form factor, measuring 1.73" (43.95 mm) in height, 17.42" (442.50 mm) in width, and 15.86" (402.75 mm) in depth, with a weight of 10.80 lb (4.9 kg). This design allows for efficient use of rack space while providing sturdy construction for various mounting scenarios. The included 2-post rack kit brackets facilitate secure installation in standard server racks, ensuring stability and proper ventilation.
- Width
- 17.42" (442.50 mm)
- Depth
- 15.86" (402.75 mm)
- Height
- 1.73" (43.95 mm)
- Weight
- 10.80 lb (4898.80 g)
What's in the Box
The package includes the Aruba Instant On 1960 48G 40p Class4 8p Class6 PoE 2XGT 2SFP+ 600W Switch and the necessary 2-post rack kit brackets for immediate installation.
Highlights
- 48 total Gigabit Ethernet ports with PoE support
- 600W total PoE budget for high-power devices
- 40 PoE+ (Class 4) and 8 PoE++ (Class 6) ports
- 2x10 Gigabit Ethernet uplink ports
- 2xSFP+ slots for fiber expansion
- Layer 2 managed switch with advanced features
- 1U rack-mountable design with versatile mounting options
- Stack port for easy network expansion
- Supports optical fiber and twisted pair cabling
- Lifetime limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | JL809A#ABA |
| Brand Name | HPE |
| Product Line | Instant On |
| Product Series | 1960 |
| Product Name | Instant On 1960 48G 40p Class4 8p Class6 PoE 2XGT 2SFP+ 600W Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 48 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Modular | Yes |
| Stack Port | Yes |
| Port/Expansion Slot Details | 40 x Gigabit Ethernet PoE+,8 x Gigabit Ethernet PoE++,2 x 10 Gigabit Ethernet Expansion Slot,2 x 10 Gigabit Ethernet Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Ethernet Technology | 10 Gigabit Ethernet,Gigabit Ethernet |
| Network Technology | 10GBase-T,10GBase-X,10/100/1000Base-T |
| I/O Expansions | |
| Total Number of Expansion Slots | 2.0 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 2 |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.1x,IEEE 802.1p,IEEE 802.1D,IEEE 802.1w,IEEE 802.1s,IEEE 802.3az,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3an,IEEE 802.3i,IEEE 802.3z,IEEE 802.3ae,IEEE 802.3x,IEEE 802.1Q,IEEE 802.3ad,IEEE 802.3ac,IEEE 802.3bt,IEEE 802.3af,IEEE 802.3at,IEEE 802.1t |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 600 W |
| Power Source | Power Supply |
| Number of Power Supplies Installed | 1 |
| Power Consumption | 100 W |
| Physical Characteristics | |
| Form Factor | Rack-mountable,Table Top,Wall Mountable,Under Table,Cabinet Mount |
| Height | 1.73" (43.95 mm) |
| Width | 17.42" (442.50 mm) |
| Depth | 15.86" (402.75 mm) |
| Weight (Approximate) | 10.80 lb (4898.80 g) |
| Miscellaneous | |
| Package Contents | Instant On 1960 48G 40p Class4 8p Class6 PoE 2XGT 2SFP+ 600W Switch 2-post Rack Kit Brackets |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What is the total PoE budget of this Aruba Instant On switch?
The switch has a total PoE budget of 600 watts. This budget is allocated across its 48 ports, with 40 ports supporting PoE+ (up to 30W per port) and 8 ports supporting PoE++ (up to 60W per port), allowing it to power a mix of devices like IP phones, wireless access points, and high-power cameras simultaneously.
How many uplink ports does this switch have, and what types are they?
This switch includes two 10 Gigabit Ethernet uplink ports and two SFP+ expansion slots. The 10G ports support 10GBase-T for copper connections, while the SFP+ slots support 10GBase-X for fiber optic connections, providing flexible options for high-speed backbone links to other switches or servers.
Is this a managed switch, and what Layer 2 features does it support?
Yes, this is a fully manageable Layer 2 switch. It supports key networking standards such as IEEE 802.1Q for VLANs, IEEE 802.3ad for link aggregation, IEEE 802.1x for port-based authentication, and spanning tree protocols for network redundancy. Additional features include IGMP snooping for multicast traffic and port mirroring for monitoring.
Can this switch be mounted in a standard server rack?
Yes, the switch is designed for 1U rack mounting and includes 2-post rack kit brackets in the package. Its dimensions are 1.73" high, 17.42" wide, and 15.86" deep, making it compatible with standard 19-inch server racks. It also supports tabletop, wall, under-table, and cabinet mounting for flexible deployment.
What types of cables are supported by this switch?
The switch supports both optical fiber and twisted pair cabling. For copper connections, it works with standard Ethernet cables (Cat5e/Cat6/Cat6a) for distances up to 100 meters. The SFP+ slots allow for fiber optic connections using compatible SFP+ transceivers, enabling longer-distance links or connections in electrically noisy environments.
Does this switch support stacking for network expansion?
Yes, it includes a stack port that allows multiple Aruba Instant On 1960 switches to be connected and managed as a single logical unit. This simplifies network expansion by enabling centralized management and configuration across stacked switches, improving scalability and reducing administrative overhead.
