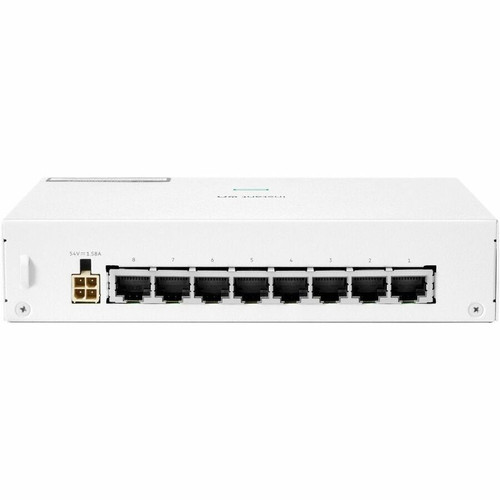

Aruba Networking Instant On Switch 8p Gigabit CL4 PoE 64W 1430 - 8 Ports - Gigabit Ethernet - 10/100/1000Base-T - 2 Layer Supported - (R8R46A#ACD)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Features: Fanless,Plug and Play,Energy Efficient,Quality of Service (QoS),Auto-negotiation
Total Number of Network Ports: 8
Network (RJ-45): Yes
Uplink Port: Yes
Stack Port: No
Port/Expansion Slot Details: 8 x Gigabit Ethernet PoE
Media Type Supported: Twisted Pair
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T
Maximum Data Transfer Rate: 128 MB/s
Layer Supported: 2
Networking Standards: IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3i,IEEE 802.3z,IEEE 802.3x,IEEE 802.3az
Manageable: No
PoE (RJ-45) Port: Yes
PoE Budget: 64 W
Input Voltage: 120 V AC,230 V AC
Power Source: AC,Power Adapter
Form Factor: Table Top,Wall Mountable,Surface Mount,Under Table,Desktop,Rack-mountable
Height: 1.45" (36.83 mm)
Width: 6.96" (176.78 mm)
Depth: 5.91" (150.11 mm)
Weight (Approximate): 1.70 lb (770 g)
Limited Warranty: 5 Year
- Cascade to other network devices through the uplink port to expand your local area network
- Features 8 networking ports to easily establish a local network or expand your existing one
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Gigabit Ethernet port for ultra-fast network speeds
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
[custom-specifications]
| Specifications | |
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | R8R46A#ACD |
| Manufacturer Website Address | http://www.hpe.com |
| Brand Name | Aruba |
| Product Line | Instant On |
| Product Series | 1430 |
| Product Name | Networking Instant On Switch 8p Gigabit CL4 PoE 64W 1430 |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | Fanless,Plug and Play,Energy Efficient,Quality of Service (QoS),Auto-negotiation |
| Interfaces/Ports | |
| Total Number of Network Ports | 8 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Stack Port | No |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet PoE |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Maximum Data Transfer Rate | 128 MB/s |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3i,IEEE 802.3z,IEEE 802.3x,IEEE 802.3az |
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 64 W |
| Input Voltage | 120 V AC,230 V AC |
| Power Source | AC,Power Adapter |
| Physical Characteristics | |
| Form Factor | Table Top,Wall Mountable,Surface Mount,Under Table,Desktop,Rack-mountable |
| Height | 1.45" (36.83 mm) |
| Width | 6.96" (176.78 mm) |
| Depth | 5.91" (150.11 mm) |
| Weight (Approximate) | 1.70 lb (770 g) |
| Warranty | |
| Limited Warranty | 5 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
[/custom-user-manual]
