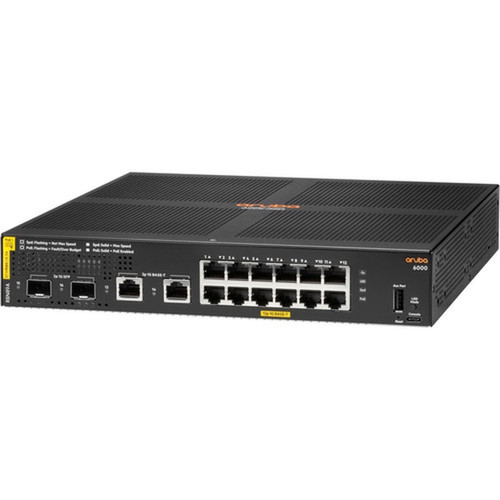

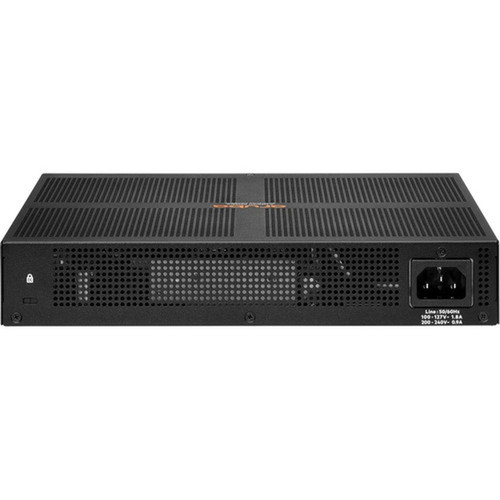

Aruba R8N89A#ABA 6000 Series Managed 12-Port Gigabit PoE Switch with 4 SFP Uplinks - Layer 3139W PoE Budget
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch supports Layer 3 routing for scalable network design, enabling efficient traffic management and network segmentation. It includes 12 Gigabit Ethernet ports for ultra-fast network speeds, with 4 SFP uplink ports for fiber or copper expansion, allowing cascading to other network devices to extend your local area network.
The switch is manageable via Web GUI, CLI, cloud-based Aruba Central, or on-premise management, offering flexible control over setup and configuration. It adheres to a comprehensive set of networking standards, including IEEE 802.3, 802.3at, 802.3az, 802.3ad, 802.1s, 802.1D, 802.1w, 802.1p, 802.1ab, 802.1Q, 802.1x, 802.3af, 802.3x, and 802.3ab, ensuring compatibility and robust performance.
Relevant factors for this section include Network Technology, Layer Supported, Networking Standards, Management & Protocols Manageable. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Aruba CX 6000 series simplifies network ownership with no switch software licensing and includes a Limited Lifetime Warranty, providing peace of mind for long-term deployments. Its compact and fanless design makes it ideal for quiet, small workspaces, reducing noise and space requirements.
AOS-CX Operating System
Based on AOS-CX, a modern, database-driven operating system built on a modular Linux architecture, this switch offers enhanced access security, traffic prioritization, and IPv6 support for a more efficient network management experience.
Enhanced Security and Management
Delivering Layer 2 capabilities with advanced features, the switch supports secure access control and flexible management options, allowing businesses to choose the best fit for their network environment.
Deployment / Use Cases
This switch is ideal for branch offices, midsize businesses, and small enterprises seeking a reliable wired access solution. Its PoE+ capability supports IoT devices such as security cameras and wireless access points, making it suitable for modern network environments that require power over Ethernet.
Use cases include expanding existing local networks, setting up new network infrastructures, and deploying in environments where quiet operation is essential due to its fanless design. The switch's Layer 3 routing and management features enable scalable network designs for growing businesses.
IoT and Mobile Support
With up to 370W of PoE+, this switch powers IoT devices and supports mobile applications, providing a convenient and cost-effective access solution for diverse network needs.
Quiet Workspace Deployment
The compact and fanless model is perfect for deployment in offices, classrooms, or other quiet areas where minimal noise and small footprint are priorities.
Physical Profile
This switch features a compact design with dimensions of 1.73" in height, 10" in width, and 10.04" in depth, making it suitable for rack mounting or desktop use in space-constrained environments. It weighs approximately 2.78 kg, ensuring easy handling and installation.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.73" (43.94 mm), 10" (254 mm), 10.04" (255.02 mm), 2.78 kg. This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 10" (254 mm)
- Depth
- 10.04" (255.02 mm)
- Height
- 1.73" (43.94 mm)
- Weight
- 2.78 kg
What's in the Box
The package includes the Aruba 6000 48G Class4 PoE 4SFP 370W Switch and mounting brackets, providing everything needed for immediate deployment in your network setup.
Highlights
- 12 Gigabit Ethernet ports for high-speed network connectivity
- 4 SFP uplink ports for fiber or copper network expansion
- Layer 3 routing support for scalable network design
- 139W PoE budget to power IoT devices like cameras and APs
- Fully managed with Web GUI, CLI, and Aruba Central options
- Compact and fanless design for quiet operation in small spaces
- AOS-CX operating system for modern, efficient network management
- No switch software licensing and Limited Lifetime Warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | R8N89A#ABA |
| Brand Name | Aruba Product Series : CX 6000 |
| Product Name | 6000 48G Class4 PoE 4SFP 370W Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Network Technology | 10/100/1000Base-T 100/1000Base-X I/O Expansions Number of Total Expansion Slots : 2 Expansion Slot Type : SFP (mini-GBIC) Number of SFP Slots : 2 |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.3 IEEE 802.3at IEEE 802.3az IEEE 802.3ad IEEE 802.1s IEEE 802.1D IEEE 802.1w IEEE 802.1p IEEE 802.1ab IEEE 802.1Q IEEE 802.1x IEEE 802.3af IEEE 802.3x IEEE 802.3ab |
| Management & Protocols Manageable | Yes |
| Power Description PoE (RJ-45) Port | Yes |
| PoE Budget | 139 |
| W Power Source | Power |
| Supply Number of Power Supplies Installed | 1 |
| Power Consumption | 21.90 W |
| Physical Characteristics | |
| Height | 1.73" (43.94 mm) |
| Width | 10" (254 mm) |
| Depth | 10.04" (255.02 mm) |
| Weight (Approximate) | 2.78 kg |
| Miscellaneous | |
| Package Contents | 6000 48G Class4 PoE 4SFP 370W Switch Mounting Brackets Environmentally Friendly : Yes |
FAQ
How many ports does this Aruba switch have, and what types are included?
This Aruba switch features 12 Gigabit Ethernet ports for connecting devices like computers and printers, along with 4 SFP uplink ports for expanding your network with fiber or copper connections. The SFP ports allow cascading to other switches or network devices, providing flexibility in network design and scalability.
What is the PoE budget of this switch, and what devices can it power?
The PoE budget is 139W, supporting PoE+ (IEEE 802.3at) to deliver power over Ethernet. This enables the switch to power IoT devices such as security cameras, wireless access points, and VoIP phones, reducing the need for separate power supplies and simplifying installation in network deployments.
Does this switch support Layer 3 routing, and what are the benefits?
Yes, this switch supports Layer 3 routing, allowing for advanced network segmentation, traffic management, and scalable design. Layer 3 capabilities enable routing between different subnets, improving network efficiency and performance in environments that require complex networking, such as branch offices or small enterprises.
How is this switch managed, and what management options are available?
This fully managed switch offers multiple management options, including Web GUI for browser-based configuration, CLI for command-line control, and cloud-based or on-premise Aruba Central management. This flexibility allows network administrators to choose the best method for their business needs, ensuring easy deployment and ongoing network oversight.
What are the physical dimensions and weight of this switch?
The switch measures 1.73" in height, 10" in width, and 10.04" in depth, with an approximate weight of 2.78 kg. Its compact and lightweight design makes it suitable for rack mounting or desktop use in space-constrained environments, and the fanless operation ensures quiet performance in office settings.
What is included in the package with this Aruba switch?
The package includes the Aruba 6000 48G Class4 PoE 4SFP 370W Switch and mounting brackets. These components provide everything necessary for immediate installation, whether you're setting up a new network or expanding an existing one, with the brackets facilitating secure rack mounting.
