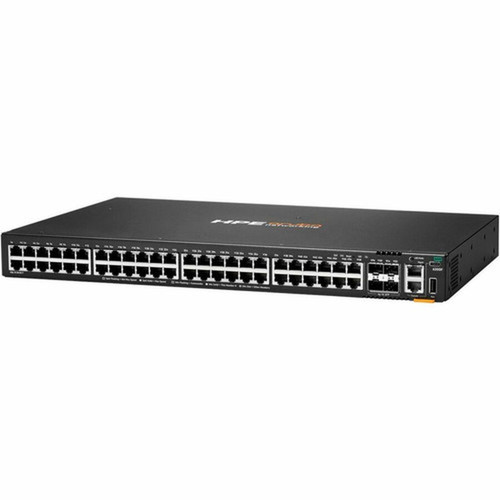

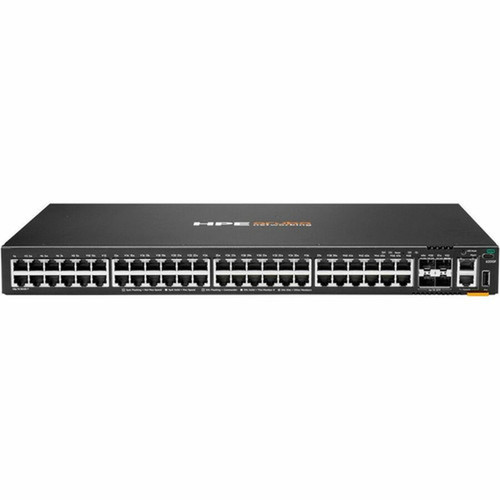

Aruba S0M83A#ABA CX 6200F 48G 4SFP Switch - 48 Port Gigabit Ethernet - Layer 3 Managed - 4 SFP Uplinks - 1U Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch operates at Gigabit Ethernet speeds, supporting both 10/100/1000Base-T over twisted pair and 1000Base-X for fiber connections. It adheres to a comprehensive set of networking standards, including IEEE 802.3 for Ethernet, IEEE 802.3ad for link aggregation, IEEE 802.1Q for VLANs, and IEEE 802.1x for network access control.
The four SFP (mini-GBIC) slots allow for flexible uplink configurations using optical fiber or copper transceivers, extending network reach and enhancing backbone connectivity. With a power consumption of 68 watts and dual voltage input support, it offers efficient operation in diverse power environments.
Relevant factors for this section include Total Number of Network Ports, Network (RJ-45), Modular, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Aruba CX 6200F switch excels in providing a balanced mix of port density, uplink flexibility, and management features. Its Layer 3 capabilities support routing functions, making it suitable for segmenting networks and managing inter-VLAN traffic without additional hardware.
High-Density Connectivity
With 48 Gigabit Ethernet ports, this switch accommodates numerous devices, from computers and printers to IP phones and access points, reducing the need for multiple switches in crowded racks.
- 48 ports for extensive device connections
- Reduces hardware clutter in network setups
Fiber-Ready Uplinks
The four SFP slots enable fiber optic uplinks, offering longer distance coverage and higher bandwidth for connecting to core switches or other network segments, ideal for campus or large office deployments.
- Supports optical fiber for extended reach
- Enhances backbone network performance
Enterprise-Grade Management
Full manageability allows for detailed configuration, monitoring, and troubleshooting. Support for standards like IEEE 802.1ae for MACsec provides additional security for sensitive data transmissions.
- Comprehensive configuration options
- Enhanced security with MACsec support
Deployment / Use Cases
This switch is well-suited for medium to large business networks where reliable, high-speed connectivity and scalability are priorities. Its 1U form factor and rack-mountable design make it a natural fit for data centers, server rooms, and network closets.
In office environments, it can serve as an access layer switch, connecting end-user devices while using the SFP uplinks to link to distribution or core switches. For educational or healthcare settings, its manageability supports segmented networks for different departments or secure zones, with Layer 3 routing facilitating efficient traffic flow between them.
Physical Profile
The switch features a compact 1U design, measuring 1.72 inches in height, 17.42 inches in width, and 11.20 inches in depth. It weighs approximately 8.60 pounds, making it easy to handle and install in standard racks. Its form factor supports rack-mounting, surface mounting, and cabinet mounting, offering flexibility for various installation scenarios. The included 2-post rack kit simplifies deployment in typical server rack environments.
- Width
- 17.42" (442.50 mm)
- Depth
- 11.20" (284.50 mm)
- Height
- 1.72" (43.70 mm)
- Weight
- 8.60 lb (3900 g)
What's in the Box
The package includes all necessary components for immediate deployment.
Package contents include CX 6200F 48G 4SFP Switch 2-post Rack Kit, CX 6200F 48G 4SFP Switch. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- 48 Gigabit Ethernet ports for high-density connectivity
- 4 SFP uplink slots for fiber optic expansion
- Layer 3 support enables routing and scalable network design
- Fully manageable with advanced configuration options
- 1U rack-mountable form factor saves space in server racks
- Supports 10/100/1000Base-T and 1000Base-X network technologies
- Low power consumption at 68 watts for energy efficiency
- Lifetime warranty for long-term reliability and support
- RoHS compliant for environmentally friendly operation
- Dual voltage input (120V/230V AC) for global compatibility
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | S0M83A#ABA |
| Brand Name | Aruba |
| Product Series | CX 6200 |
| Product Name | CX 6200F 48G 4SFP Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 48 |
| Network (RJ-45) | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 48 x Gigabit Ethernet,4 x Gigabit Expansion Slot |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,1000Base-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 4 |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.3,IEEE 802.3az,IEEE 802.3ad,IEEE 802.1s,IEEE 802.1D,IEEE 802.1w,IEEE 802.1p,IEEE 802.1ab,IEEE 802.1Q,IEEE 802.1v,IEEE 802.1x,IEEE 802.1ae |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Power Source | Power Supply |
| Power Consumption | 68 W |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable,Surface Mount,Cabinet Mount |
| Height | 1.72" (43.70 mm) |
| Width | 17.42" (442.50 mm) |
| Depth | 11.20" (284.50 mm) |
| Weight (Approximate) | 8.60 lb (3900 g) |
| Miscellaneous | |
| Package Contents | CX 6200F 48G 4SFP Switch 2-post Rack Kit |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
How many ports does this Aruba switch have, and what types are they?
This Aruba CX 6200F switch has 48 Gigabit Ethernet ports using RJ-45 connectors for twisted pair cabling. Additionally, it includes 4 SFP (mini-GBIC) slots for uplink connections, which can support fiber optic or copper transceivers to extend network reach or connect to other switches.
What does Layer 3 support mean for this switch?
Layer 3 support indicates that this switch can perform routing functions at the network layer. It allows for inter-VLAN routing, meaning it can direct traffic between different VLANs without needing a separate router. This enhances network segmentation, improves traffic management, and supports scalable network designs in medium to large environments.
Is this switch manageable, and what management features does it offer?
Yes, this switch is fully manageable. It provides control over setup, configuration, and monitoring through a management interface. It supports key networking standards like IEEE 802.1Q for VLANs, IEEE 802.1x for network access control, and IEEE 802.1ae for MACsec security, enabling detailed network optimization and security policies.
What are the SFP slots used for, and how many are there?
This switch has 4 SFP (mini-GBIC) slots, which are used for uplink connections. These slots accept SFP transceivers to support fiber optic or copper cabling, allowing for longer distance connections, higher bandwidth links to core networks, or integration into existing fiber infrastructure. They provide flexibility for network expansion and backbone connectivity.
What is the rack unit size and mounting options for this switch?
This switch is designed for a 1U rack space, making it compact and space-efficient in standard server racks. It supports rack-mounting, surface mounting, and cabinet mounting, with a 2-post rack kit included in the package for easy installation. Its dimensions are 1.72" H x 17.42" W x 11.20" D, and it weighs about 8.60 pounds.
What power specifications does this switch have, and is it energy efficient?
The switch operates with an input voltage of 120V or 230V AC, accommodating different power standards. It consumes 68 watts under typical load, which is relatively low for a 48-port managed switch, contributing to energy efficiency. The built-in power supply ensures stable operation, and its RoHS compliance indicates environmentally friendly manufacturing.
