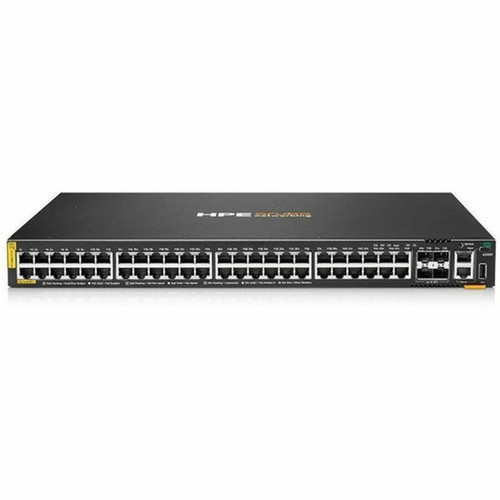

Aruba S0M85A#ABA CX 6200 48-Port Gigabit Ethernet Managed Switch - Modular - PoE+ 740W - 4 SFP Slots - Layer 3 - 1U Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Built on the Aruba CX switching platform, this switch supports comprehensive Layer 3 routing protocols, including static and OSPF, for efficient traffic management across complex networks. It operates at Gigabit Ethernet speeds with support for 10/100/1000Base-T and 1000Base-X network technologies, ensuring compatibility with both twisted pair and optical fiber media.
The switch incorporates advanced networking standards such as IEEE 802.3at/af for PoE, IEEE 802.1Q for VLANs, IEEE 802.1x for network access control, and IEEE 802.3ad for link aggregation. Its modular power design supports a 740-watt PoE budget, capable of delivering up to 30W per port (Class 4) on fixed configurations or up to 60W per port (Class 6) on modular setups.
Relevant factors for this section include Total Number of Network Ports, Network (RJ-45), Modular, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Aruba CX 6200 switch offers significant advantages for network scalability, security, and management. Its support for 8-member VSF stacking allows expansion to up to 384 downlink ports, creating a unified, high-capacity switching fabric without complex inter-switch links.
Centralized Management
Manage the entire network infrastructure through Aruba Central, providing a single pane of glass for wired, wireless, and WAN environments. This simplifies monitoring, configuration, and troubleshooting across distributed deployments.
- Aruba Network Analytics Engine for visibility
- Aruba NetEdit for automated configuration
Enhanced Security
Implements Aruba Dynamic Segmentation to create secure, policy-based access for users and IoT devices. MACsec 256 encryption on uplinks ensures data integrity, while robust ACLs and QoS maintain network performance under load.
Deployment Flexibility
The modular architecture supports versatile uplink options, including built-in 1G/10G ports and cost-efficient 1G models. The Aruba CX Mobile App enables one-touch setup, reducing installation time and technical overhead.
Deployment / Use Cases
Ideal for medium to large enterprise networks, the Aruba CX 6200 switch excels in environments requiring high port density, PoE support, and advanced routing capabilities. Its Layer 3 functionality makes it suitable for core or distribution layer switching in campus networks, where inter-VLAN routing and traffic segmentation are critical.
Common deployments include office buildings, educational campuses, healthcare facilities, and retail environments. The substantial PoE budget powers IP phones, wireless access points, security cameras, and other networked devices directly from the switch, eliminating the need for separate power injectors and simplifying cable management.
Physical Profile
The switch measures 1.72 inches in height, 17.42 inches in width, and 12.86 inches in depth, with an approximate weight of 11.31 pounds. Its 1U form factor is designed for standard 19-inch server racks, and it supports surface, cabinet, or wall mounting for flexible installation in telecom closets or data centers.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.72" (43.70 mm), 17.42" (442.50 mm), 12.86" (326.60 mm), 11.31 lb (5130 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.42" (442.50 mm)
- Depth
- 12.86" (326.60 mm)
- Height
- 1.72" (43.70 mm)
- Weight
- 11.31 lb (5130 g)
What's in the Box
The package includes the CX 6200 Ethernet Switch and a 2-post rack kit for immediate mounting in standard server racks.
Package contents include CX 6200 Ethernet Switch 2-post Rack Kit, CX 6200 Ethernet Switch. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- 48 Gigabit Ethernet PoE ports for high-density connectivity
- 740-watt PoE budget supports power-hungry devices like APs and cameras
- Four SFP slots for flexible 1G/10G fiber or copper uplinks
- Layer 3 switching with support for static and OSPF routing
- VSF stacking for up to 8 switches and 384 downlink ports
- Centralized management via Aruba Central for wired and wireless networks
- Aruba Dynamic Segmentation for secure user and IoT access
- 1U rack-mountable design with included 2-post rack kit
- Compliant with RoHS and WEEE environmental standards
- Lifetime limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | S0M85A#ABA |
| Brand Name | HPE |
| Product Series | CX 6200 |
| Product Name | CX 6200 Ethernet Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 48 |
| Network (RJ-45) | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 48 x Gigabit Ethernet PoE,4 x Gigabit Expansion Slot |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,1000Base-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 4 |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.3,IEEE 802.3az,IEEE 802.3ad,IEEE 802.1s,IEEE 802.1D,IEEE 802.1w,IEEE 802.1p,IEEE 802.1ab,IEEE 802.1Q,IEEE 802.1v,IEEE 802.1x,IEEE 802.1ae,IEEE 802.3at,IEEE 802.3af |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 740 W |
| Input Voltage | 120 V AC,230 V AC |
| Power Source | Power Supply |
| Power Consumption | 76 W |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable,Surface Mount,Cabinet Mount |
| Height | 1.72" (43.70 mm) |
| Width | 17.42" (442.50 mm) |
| Depth | 12.86" (326.60 mm) |
| Weight (Approximate) | 11.31 lb (5130 g) |
| Miscellaneous | |
| Package Contents | CX 6200 Ethernet Switch 2-post Rack Kit |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
How many devices can this switch power with PoE?
The Aruba CX 6200 switch has a total PoE budget of 740 watts. This capacity can support numerous PoE devices simultaneously, such as IP phones, wireless access points, and security cameras. The exact number depends on the power class of each connected device, with support for up to 30W per port (Class 4) on fixed configurations or up to 60W per port (Class 6) on modular setups.
What types of uplink connections are supported?
This switch includes four SFP (mini-GBIC) expansion slots for uplink connections. These slots support versatile 1G/10G uplinks using either fiber optic or copper SFP modules. The modular design allows for LRM and MACsec 256 encryption on uplinks, providing flexibility for connecting to core switches or internet gateways over short or long distances.
Can multiple switches be managed as a single unit?
Yes, the Aruba CX 6200 supports Virtual Switching Framework (VSF) stacking for up to 8 switches. This technology allows them to operate as a single logical device with up to 384 downlink ports. Stacking simplifies management, improves redundancy, and enables seamless scalability as network needs grow, all while maintaining consistent configuration and policies across the stack.
What Layer 3 routing protocols does this switch support?
The switch supports Layer 3 routing with common protocols such as static routing and Access OSPF. This enables efficient traffic routing between VLANs and subnets, reducing reliance on external routers for internal network traffic. It also supports advanced QoS and ACLs for granular traffic management and security policy enforcement across the network.
Is this switch suitable for rack mounting?
Absolutely. The Aruba CX 6200 is designed for 1U rack mounting and includes a 2-post rack kit in the package. Its dimensions (1.72" H x 17.42" W x 12.86" D) fit standard 19-inch server racks, and it also supports surface or cabinet mounting for flexible deployment in data centers, wiring closets, or network rooms.
How is this switch managed and monitored?
Management options include Aruba Central for cloud-based unified management across wired, wireless, and WAN infrastructures, providing a single pane of glass. Additionally, the Aruba CX Mobile App allows for one-touch deployment, while Aruba NetEdit enables automated configuration and verification. The built-in Aruba Network Analytics Engine offers intelligent monitoring and troubleshooting for enhanced visibility.
