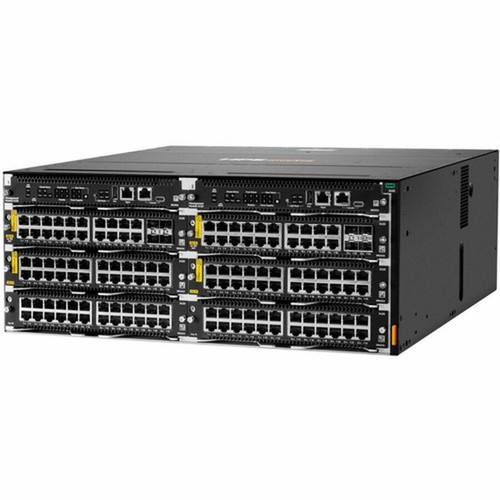

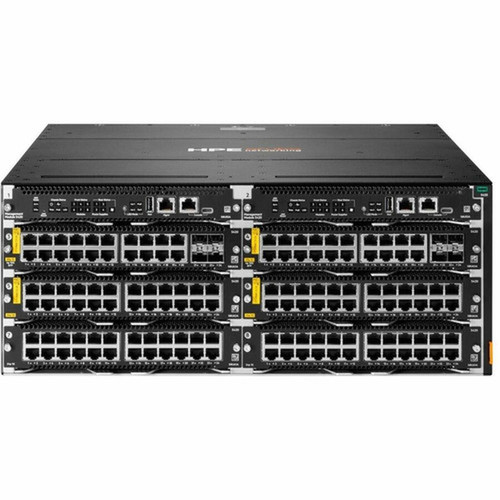

Aruba S0U69A CX 5420 Switch Chassis - Modular 7-Slot 4U Rack-Mountable - Layer 3 - 1600W PoE
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The Aruba CX 5420 Switch Chassis is a modular networking platform designed for scalable and high-performance enterprise deployments. This chassis provides a flexible foundation for building robust network infrastructures with support for Layer 3 switching, optical fiber connectivity, and Power over Ethernet capabilities.
With its 7 expansion slots, the CX 5420 allows for tailored port configurations through line cards, enabling organizations to adapt to evolving connectivity needs. The chassis is engineered for reliability in demanding environments, featuring hot-swappable components and redundant power supply support to maintain continuous operation.
Relevant factors for this section include Features, Modular, Port/Expansion Slot Details. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Technical Overview
The Aruba CX 5420 chassis delivers advanced networking functionality with Layer 3 support, enabling routing between VLANs and IP subnets for efficient traffic management. It complies with the IEEE 802.3bt standard, which supports higher power delivery for PoE devices, making it suitable for powering access points, IP phones, and other networked equipment.

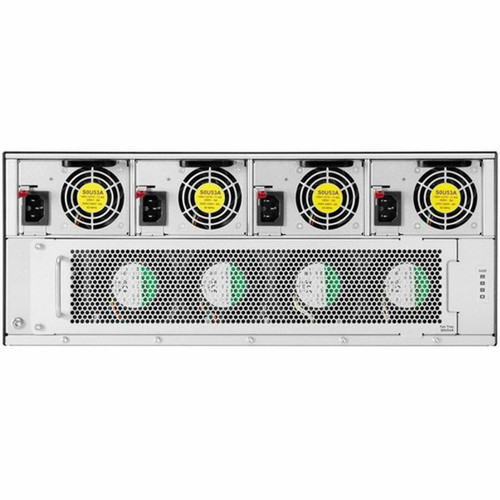

Power management is a key focus, with the chassis supporting up to 4 power supplies for redundancy and a total power consumption of 1600 watts. This ensures stable operation even under high PoE loads. The modular design allows for easy upgrades and maintenance without disrupting network services.
Relevant factors for this section include Features, Modular, Port/Expansion Slot Details. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Aruba CX 5420 offers significant advantages for network architects seeking flexibility and reliability. Its modular architecture allows for customized port densities and types, reducing the need for complete hardware replacements as network requirements change.
Scalable Design
With 7 expansion slots, the chassis can be populated with line cards to match specific port counts and media types, supporting everything from copper Ethernet to fiber optic connections.
- Adapt to growth without chassis replacement
- Mix and match line cards for diverse needs
High Availability
Features like hot-swappable components and support for redundant power supplies minimize downtime, ensuring critical network services remain available during maintenance or power events.
- Hot-swappable for easy upgrades
- Redundant power supply support
Deployment / Use Cases
The Aruba CX 5420 Switch Chassis is ideal for medium to large enterprise networks where scalability and reliability are paramount. Its Layer 3 capabilities make it suitable for core or distribution layer switching, handling inter-VLAN routing and advanced traffic policies.
In environments with high PoE demands, such as campuses or office buildings with numerous wireless access points and IP phones, the chassis's 1600W power budget and IEEE 802.3bt compliance ensure consistent power delivery. The 4U rack-mountable form factor integrates seamlessly into standard data center racks, supporting organized cable management and professional installations.
Enterprise Core Switching
Deploy as a core switch in corporate networks, leveraging Layer 3 routing to manage traffic between departments or floors efficiently.
PoE-Intensive Environments
Use in settings with dense deployments of PoE devices, such as schools or hospitals, where reliable power and connectivity are critical.
Highlights
- Modular chassis with 7 expansion slots for flexible port configurations
- Layer 3 switching support for advanced routing and traffic management
- IEEE 802.3bt compliance for high-power PoE device support
- 1600W power consumption with redundant power supply capability
- Hot-swappable components for easy maintenance and upgrades
- 4U rack-mountable form factor for standard data center integration
- Optical fiber media support for long-distance, high-speed connections
- TAA compliant for use in government and regulated environments
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | S0U69A |
| Brand Name | Aruba |
| Product Series | CX 5420 |
| Product Name | CX 5420 Switch Chassis |
| Product Type | Switch Chassis |
| Technical Information | |
| Features | Hot-swappable |
| Interfaces/Ports | |
| Modular | Yes |
| Port/Expansion Slot Details | 7 x Expansion Slot |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| I/O Expansions | |
| Total Number of Expansion Slots | 7 |
| Expansion Slot Type | Line Card |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.3bt |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| Input Voltage | 120 V AC,230 V AC |
| Power Source | Power Supply,AC |
| Redundant Power Supply Supported | Yes |
| Number of Power Supplies Supported | 4 |
| Power Consumption | 1600 W |
| Physical Characteristics | |
| Compatible Rack Unit | 4U |
| Form Factor | Rack-mountable |
| Miscellaneous | |
| TAA Compliant | Yes |
User Manual
FAQ
What is the purpose of the 7 expansion slots in this switch chassis?
The 7 expansion slots allow you to install line cards that add specific port types and counts, such as Ethernet, fiber optic, or PoE ports. This modular design lets you customize the chassis to meet your network's current and future needs without replacing the entire unit, providing flexibility for growth and technology upgrades.
Does this chassis support Power over Ethernet (PoE)?
Yes, the Aruba CX 5420 chassis supports PoE through its expansion slots. It complies with the IEEE 802.3bt standard, which enables higher power delivery for devices like advanced wireless access points, IP cameras, and VoIP phones. This makes it suitable for environments with dense PoE deployments.
What does Layer 3 support mean for this switch chassis?
Layer 3 support means the chassis can perform routing functions, such as moving traffic between different IP subnets or VLANs. This enhances network performance by reducing broadcast domains and enabling more efficient traffic management, making it ideal for core or distribution layer deployments in enterprise networks.
How many power supplies can this chassis support, and why is that important?
The chassis supports up to 4 power supplies. This allows for redundant power configurations, where if one power supply fails, the others can continue to provide power, minimizing downtime. Redundancy is crucial for maintaining network availability in critical applications like data centers or office networks.
What rack size is required for mounting this switch chassis?
The chassis is compatible with standard 19-inch racks and occupies 4U of vertical space. This 4U form factor provides enough room for the chassis and its components while fitting into most data center racks, supporting organized installation and cable management for a professional setup.
Is this switch chassis hot-swappable, and what are the benefits?
Yes, the chassis features hot-swappable components, such as line cards and power supplies. This allows you to add, remove, or replace parts without shutting down the entire switch, reducing maintenance downtime and ensuring continuous network operation during upgrades or repairs.
