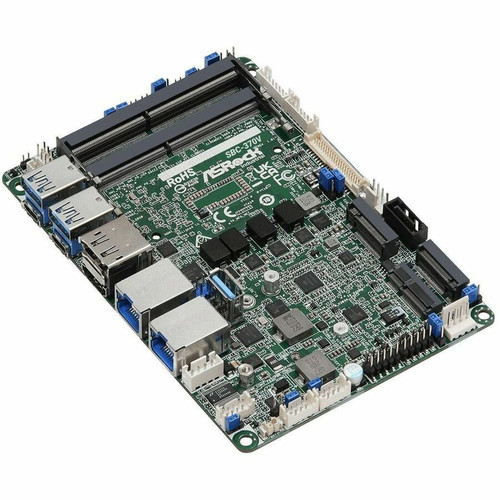

ASRock 3.5 Inch Industrial Single Board Computer Motherboard With Intel Chipset Supporting Core And Processors Up To 64 GB DDR4 SBC-370V
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Chipset Manufacturer: Intel
Total Processor Supported: 1
Processor Generation Supported: 12th Gen
Processor Supported: Core i3,Core i7
Number of Memory Slots: 2
Memory Form Factor: DIMM,SoDIMM
Maximum Memory Supported: 64 GB
Memory Speed Supported: 3200 MHz
Memory Technology: DDR4 SDRAM
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0,1
Onboard Video: CPU Dependent Video
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
Total Number of Expansion Slots: 1
Total Number of PCI Express Slots: 1
Number of PCI Express x1 Slots: 1
PCI Express Standard: PCI Express 3.0
Total Number of USB Ports: 4
HDMI: Yes
HDMI Version: 2.0b
DisplayPort: Yes
Number of Network (RJ-45) Ports: 2
Number of M.2 Interfaces: 3
Total Number of Onboard USB Ports: 3
Number of Onboard USB 2.0 Ports: 2
Form Factor: 3.5" SBC
Height: 0.94" (24 mm)
Width: 5.79" (147 mm)
Depth: 4.02" (102 mm)
Environmental Compliance: Taiwan Restriction of Hazardous Substances (Taiwan RoHS),China Restriction of Hazardous Substances (China RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS)
- Compatible Intel Core i3 processor is smart and responsive, which lets you use multiple applications without any lag
- DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
- Supported 0 RAID levels provide data reliability and fault tolerance
- HDMI interface enables the user to experience a fantastic sound/video quality at the expense of a single cable
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- 3.5" SBC style to support numerous features for constructing a reliable computing system
[custom-specifications]
| Specifications | |
| Manufacturer | ASRock, Inc |
| Manufacturer Part Number | SBC370V |
| Manufacturer Website Address | http://www.asrock.com |
| Brand Name | ASRock |
| Product Model | SBC-370V |
| Product Name | SBC-370V Industrial Motherboard |
| Package Type | Retail |
| Product Type | Industrial Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Total Processor Supported | 1 |
| Processor Generation Supported | 12th Gen |
| Processor Supported | Core i3,Core i7 |
| Memory | |
| Number of Memory Slots | 2 |
| Memory Form Factor | DIMM,SoDIMM |
| Maximum Memory Supported | 64 GB |
| Memory Speed Supported | 3200 MHz |
| Memory Technology | DDR4 SDRAM |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0,1 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Total Number of PCI Express Slots | 1 |
| Number of PCI Express x1 Slots | 1 |
| PCI Express Standard | PCI Express 3.0 |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| HDMI | Yes |
| HDMI Version | 2.0b |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Onboard Interfaces | |
| Number of M.2 Interfaces | 3 |
| Total Number of Onboard USB Ports | 3 |
| Number of Onboard USB 2.0 Ports | 2 |
| Physical Characteristics | |
| Form Factor | 3.5" SBC |
| Height | 0.94" (24 mm) |
| Width | 5.79" (147 mm) |
| Depth | 4.02" (102 mm) |
| Miscellaneous | |
| Environmental Compliance | Taiwan Restriction of Hazardous Substances (Taiwan RoHS),China Restriction of Hazardous Substances (China RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) |
