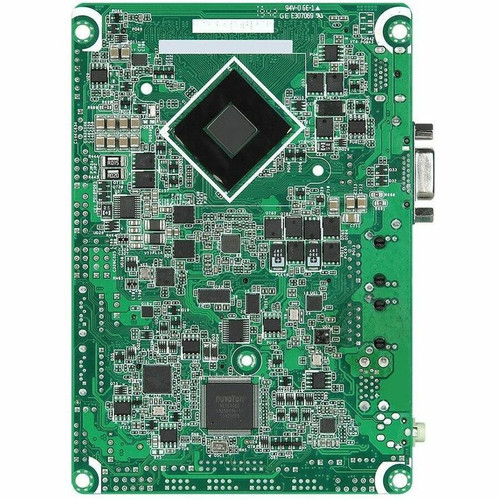

ASRock 3.5 Inch Single Board Computer Motherboard Intel Chipset Atom Compatible With Up To 8 GB DDR3L SDRAM Processor Supported Socket SBC SBC-210L
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Chipset Manufacturer: Intel
Total Processor Supported: 1
Processor Socket: Socket
Processor Supported: Atom
Number of Memory Slots: 1
Memory Form Factor: SoDIMM
Maximum Memory Supported: 8 GB
Memory Speed Supported: 1333 MHz
Memory Technology: DDR3L SDRAM
Controller Type: Serial ATA/600
Onboard Video: CPU Dependent Video
Gigabit Ethernet: Yes
Total Number of Expansion Slots: 1
Total Number of PCI Express Slots: 1
Number of PCI Express x1 Slots: 1
Total Number of USB Ports: 2
Number of USB 3.0 Ports: 2
VGA: Yes
HDMI: Yes
Number of Network (RJ-45) Ports: 2
Total Number of Onboard USB Ports: 6
Number of Onboard USB 2.0 Ports: 6
Form Factor: 3.5" SBC
Width: 5.79" (147 mm)
Depth: 4.02" (102 mm)
Environmental Compliance: China Restriction of Hazardous Substances (China RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Taiwan Restriction of Hazardous Substances (Taiwan RoHS)
- Intel®Baytrail / Baytrail-I SoC Processor N2807
- Supports Single Channel DDR3L SO-DIMM 1333, up to 8GB
- 4 x COM

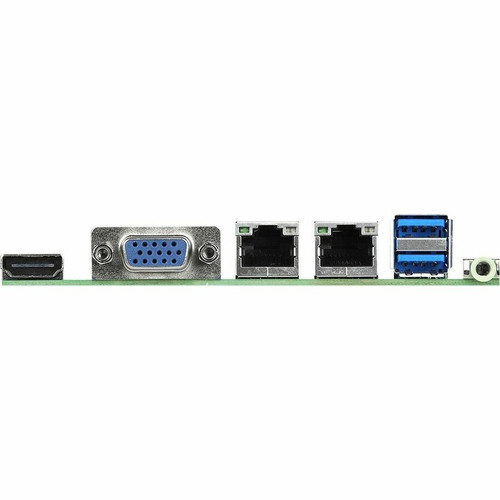

- 1 x HDMI, 1 x D-Sub, 1 x LVDS
- 2 x USB 3.0, 6 x USB 2.0, 2 x SATA2
- 1 x mini-PCIe, 1 x mSATA (shared)
- 2 x Realtek Lan
- 1 x TPM Header
- 9~36 V DC-in (4-pin DC-in PWR Con)
[custom-specifications]
| Specifications | |
| Manufacturer | ASRock, Inc |
| Manufacturer Part Number | SBC-210L |
| Manufacturer Website Address | http://www.asrock.com |
| Brand Name | ASRock |
| Product Model | SBC-210L |
| Product Name | SBC-210L Single Board Computer Motherboard |
| Product Type | Single Board Computer Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Total Processor Supported | 1 |
| Processor Socket | Socket |
| Processor Supported | Atom |
| Memory | |
| Number of Memory Slots | 1 |
| Memory Form Factor | SoDIMM |
| Maximum Memory Supported | 8 GB |
| Memory Speed Supported | 1333 MHz |
| Memory Technology | DDR3L SDRAM |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Total Number of PCI Express Slots | 1 |
| Number of PCI Express x1 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| VGA | Yes |
| HDMI | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Onboard Interfaces | |
| Total Number of Onboard USB Ports | 6 |
| Number of Onboard USB 2.0 Ports | 6 |
| Physical Characteristics | |
| Form Factor | 3.5" SBC |
| Width | 5.79" (147 mm) |
| Depth | 4.02" (102 mm) |
| Miscellaneous | |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Taiwan Restriction of Hazardous Substances (Taiwan RoHS) |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
[/custom-user-manual]
