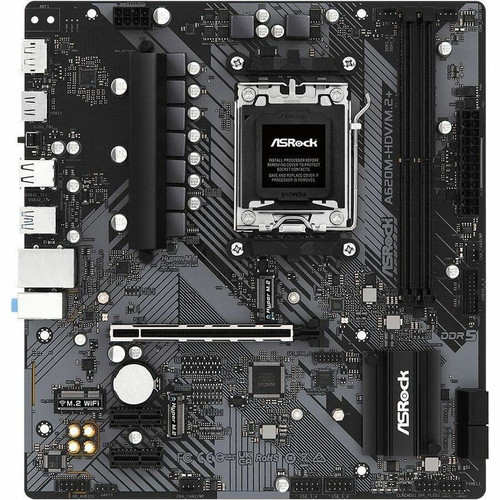

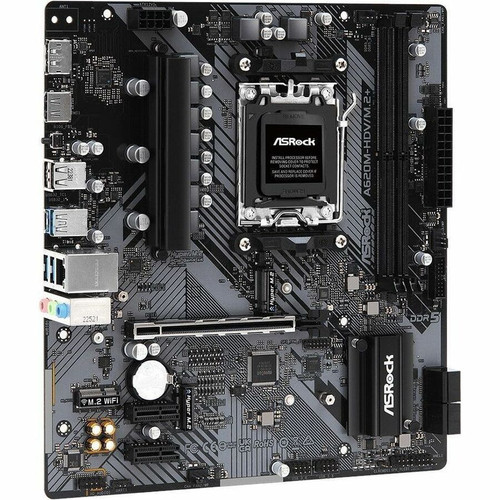

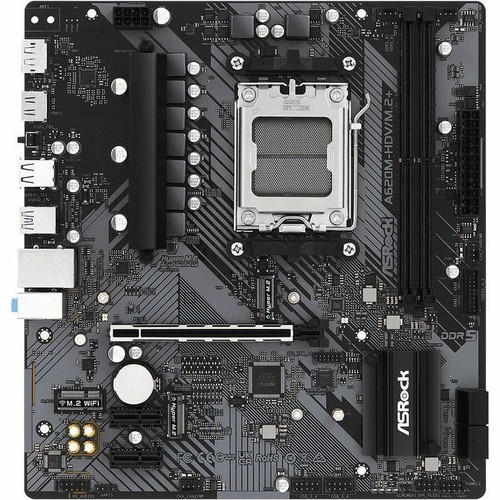

ASRock A620M HDV M.2 Micro ATX Motherboard AMD Socket Ryzen 7 9 Supported Processor Chipset Desktop Gaming A620M-HDV/M.2
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- A620M-HDV/M.2+ Gaming Desktop Motherboard
- 1 x User Manual
- 1 x I/O Shield
- 2 x SATA Data Cables
- 3 x Screws for M.2 Sockets
Marketing Information:
Optimized VRM Design
Featuring sturdy components optimized for AMD Ryzen™ 7000X3D series processors, offering enhanced performance for gamers.
6 Layer PCB
The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, giving a stable and reliable system.
Reinforced Steel Slot [PCIe 4.0 Version]
The reinforced steel slot is capable of supporting PCI Express 4.0 standard. The various benefits include:
? Extra anchor points
? Stronger latch
? Ensure signal stability
? Make sure heavy graphics cards to be well-installed.
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
High Speed M.2 Solution
This motherboard is capable of accomadating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
USB 3.2 Gen1 Type-C
USB 3.2 Gen1 Type-C delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the rear panel of computer case.
Chipset Manufacturer: AMD
Chipset Model: A620
Total Processor Supported: 1
Processor Socket: Socket AM5
Processor Supported: Ryzen 7,Ryzen 9
Number of Memory Slots: 2
Memory Form Factor: DIMM,UDIMM
Maximum Memory Supported: 128 GB
Memory Technology: DDR5 SDRAM
Error Checking: ECC
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0,1,10
Onboard Video: CPU Dependent Video
Graphics Controller Model: RDNA 2
Audio Channels: 7.1
Gigabit Ethernet: Yes
Total Number of Expansion Slots: 3
Total Number of PCI Express Slots: 3
Number of PCI Express x1 Slots: 2
Number of PCI Express x16 Slots: 1
PCI Express Standard: PCI Express 4.0,PCI Express 3.0
Total Number of USB Ports: 6
Number of USB 2.0 Ports: 2
Number of USB 3.2 Gen 1 Type-A Ports: 3
HDMI: Yes
HDMI Version: 2.1
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Number of M.2 Interfaces: 3
Total Number of Onboard USB Ports: 6
Number of Onboard USB 2.0 Ports: 4
Form Factor: Micro ATX
Width: 9.60" (243.84 mm)
Depth: 8.90" (226.06 mm)
Package Contents:
Energy Efficiency Compliance: Energy-related Products Directive Ready (ErP Ready),Energy-using Products Directive Ready (EuP Ready)
- Supports AMD Socket AM5 Ryzen™ 8000 and 7000 Series Processors
- 6+1+1 Power Phase, Dr.MOS
- 2 x DDR5 DIMMs
- Supports Dual Channel, up to 7200+ (OC)
- 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
- Integrated AMD RDNA™ 2 Graphics*
- Graphics Output Options: HDMI, DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4)
- 6 USB 3.2 Gen1 (3 Rear, 1 Rear Type-C, 2 Front)
- Realtek Gigabit LAN
- Supports ASRock Auto Driver Installer, BIOS Flashback
[custom-specifications]
| Specifications | |
| Manufacturer | ASRock, Inc |
| Manufacturer Part Number | A620MHDVM2 |
| Manufacturer Website Address | http://www.asrock.com |
| Brand Name | ASRock |
| Product Model | A620M-HDV/M.2+ |
| Product Name | A620M-HDV/M.2+ Gaming Desktop Motherboard |
| Product Type | Gaming Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | A620 |
| Total Processor Supported | 1 |
| Processor Socket | Socket AM5 |
| Processor Supported | Ryzen 7,Ryzen 9 |
| Memory | |
| Number of Memory Slots | 2 |
| Memory Form Factor | DIMM,UDIMM |
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR5 SDRAM |
| Error Checking | ECC |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0,1,10 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Graphics Controller Model | RDNA 2 |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| I/O Expansions | |
| Total Number of Expansion Slots | 3 |
| Total Number of PCI Express Slots | 3 |
| Number of PCI Express x1 Slots | 2 |
| Number of PCI Express x16 Slots | 1 |
| PCI Express Standard | PCI Express 4.0,PCI Express 3.0 |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 1 Type-A Ports | 3 |
| HDMI | Yes |
| HDMI Version | 2.1 |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Onboard Interfaces | |
| Number of M.2 Interfaces | 3 |
| Total Number of Onboard USB Ports | 6 |
| Number of Onboard USB 2.0 Ports | 4 |
| Physical Characteristics | |
| Form Factor | Micro ATX |
| Width | 9.60" (243.84 mm) |
| Depth | 8.90" (226.06 mm) |
| Miscellaneous | |
| Package Contents |
|
| Energy Efficiency Compliance | Energy-related Products Directive Ready (ErP Ready),Energy-using Products Directive Ready (EuP Ready) |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
[/custom-user-manual]
