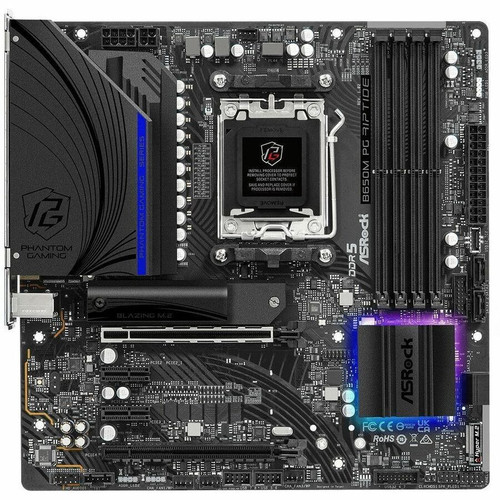

ASRock B650M PG Riptide Micro ATX Gaming Motherboard Socket AMD Chipset Ryzen Support B650M PG RIPTIDE B650M PG RIPTIDE B650M PG RIPTIDE

Marketing Information:

Riptide is named after a specific kind of water current with strong waves that occurs in the ocean, representing the philosophy of sea's double-side, calm and unlimited strength. Built around powerful gaming-related features, the Riptide has given a powerful smash and immersed users in the sense of stability.

Dr. MOS

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

12+2+1 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

6 Layer PCB

The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!

2oz Copper PCB

2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.

DDR5 Memory with Protection Circuit

Due to the unique electrical architecture of DDR5 DIMM, there's a high risk of damaging the memory module if AC power isn't disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module.

Nahimic Audio | Audio That Matters

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

Enhance Communication Quality

The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.

• Static Noise Suppression
• Echo Cancellation
• Lateral Sound Cancellation
• Voice Stabilizer

Ultimate Gaming Experience | Sound Tracker

The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

Works on any devices!

Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.

Lightning Gaming Ports

Aimed for die hard gamers and enthusiasts! Lightning Gaming Ports are sourced from two different controller interfaces that assist gamers in connecting the high speed mice/keyboard with the lower jitter and latency!

POLYCHROME RGB

In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across thePolychrome RGB Sync-certifiedaccessories to create their own unique lighting effects.

Chipset Manufacturer: AMD

Chipset Model: B650

Total Processor Supported: 1

Processor Socket: Socket AM5

Processor Supported: Ryzen 5,Ryzen 7,Ryzen 9

Multi GPU Supported: CrossFire

Number of Memory Slots: 4

Memory Form Factor: DIMM,UDIMM

Maximum Memory Supported: 256 GB

Memory Speed Supported: 7200 MHz

Memory Technology: DDR5 SDRAM

Controller Type: Serial ATA/600

RAID Supported: Yes

RAID Levels: 0,1,10

Onboard Video: CPU Dependent Video

Graphics Controller Model: RDNA Graphics

Audio Channels: 7.1

Gigabit Ethernet: Yes

2.5Gigabit Ethernet: Yes

Total Number of PCI Express Slots: 4

Number of PCI Express x1 Slots: 2

Number of PCI Express x16 Slots: 2

PCI Express Standard: PCI Express 4.0,PCI Express 3.0

Total Number of USB Ports: 8

Number of USB 2.0 Ports: 4

Number of USB 3.2 Gen 1 Ports: 2

Number of USB 3.2 Gen 2 Type-A Ports: 1

Number of USB 3.2 Gen 2 Type-C Ports: 1

VGA: Yes

HDMI: Yes

HDMI Version: 2.1

DisplayPort: Yes

Number of Network (RJ-45) Ports: 1

Thunderbolt: Yes

Number of M.2 Interfaces: 2

Total Number of Onboard USB Ports: 9

Number of Onboard USB 2.0 Ports: 4

Form Factor: Micro ATX

Width: 9.61" (244 mm)

Depth: 9.61" (244 mm)

Energy Efficiency Compliance: Energy-related Products Directive Ready (ErP Ready),Energy-using Products Directive Ready (EuP Ready)

Environmental Compliance: Restriction of Hazardous Substances (RoHS),China Restriction of Hazardous Substances (China RoHS),Taiwan Restriction of Hazardous Substances (Taiwan RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
