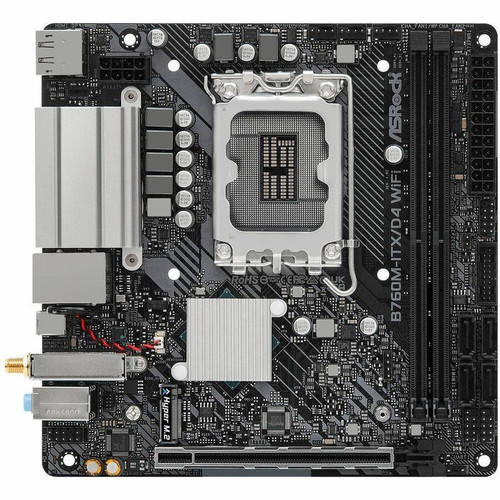

ASRock B760M ITX WiFi Mini Motherboard Socket LGA 1700 Intel Chipset Small Form Factor Design With Core Processor Support And 64 GB B760M-ITX/D4 WIFI
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- Static Noise Suppression
- Echo Cancellation
- Lateral Sound Cancellation
- Voice Stabilizer
- B760M-ITX/D4 WiFi Gaming Desktop Motherboard
- 1 x User Manual
- 1 x I/O Shield
- 2 x SATA Data Cables
- 2 x ASRock WiFi 2.4/5/6 GHz Antennas
- 1 x Screw for M.2 Socket
Marketing Information:
Optimized VRM Design | Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
5+1+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
6 Layer PCB
The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!
Reinforced Steel Slot [PCIe 4.0 Version]
The reinforced steel slot is capable of supporting PCI Express 4.0 standard. The various benefits include:
? Extra anchor points
? Stronger latch
? Ensure signal stability
? Make sure heavy graphics cards to be well-installed.
Nahimic Audio | Audio That Matters
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
Enhance Communication Quality
The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.
Ultimate Gaming Experience | Sound Tracker
The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.
Works on any devices!
Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.
High Speed M.2 Solution(PCIe Gen4 x4)
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
Wi-Fi 6E 802.11ax
WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.
Rear USB 3.2 Gen2x2 Type-C
The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.
Chipset Manufacturer: Intel
Chipset Model: B760
Total Processor Supported: 1
Processor Socket: Socket LGA-1700
Processor Generation Supported: 14th Gen,13th Gen,12th Gen
Processor Supported: Core
Number of Memory Slots: 2
Memory Form Factor: DIMM,UDIMM
Maximum Memory Supported: 64 GB
Memory Speed Supported: 5333 MHz
Memory Technology: DDR4 SDRAM
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0,1,5,10
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
Bluetooth: Yes
Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax
Total Number of PCI Express Slots: 1
Number of PCI Express x16 Slots: 1
PCI Express Standard: PCI Express 4.0
Total Number of USB Ports: 5
Number of USB 2.0 Ports: 2
Number of USB 3.2 Gen 1 Ports: 2
VGA: Yes
HDMI: Yes
HDMI Version: 2.1
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 6
Number of Onboard USB 2.0 Ports: 4
Form Factor: Mini ITX
Width: 6.69" (170 mm)
Depth: 6.69" (170 mm)
Package Contents:
Energy Efficiency Compliance: Energy-related Products Directive Ready (ErP Ready),Energy-using Products Directive Ready (EuP Ready)
Environmental Compliance: China Restriction of Hazardous Substances (China RoHS),Restriction of Hazardous Substances (RoHS),Taiwan Restriction of Hazardous Substances (Taiwan RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
- Compatible Core processor lets you perform all your computational tasks at a swift pace
- DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
- RAID supported levels provide data reliability and fault tolerance
- Wireless support reduces the number of cables required to connect peripherals
- HDMI interface connects variety of HD devices including Gaming Controllers, Blu-ray players, laptops, PCs, digital cameras and many others for you to experience the ultimate HD display
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Mini ITX form factor builds a perfect symmetry of hardware components needed in media server or NAS box
- 2 USB 2.0 ports offer the impressive data transfer speed of up to 60 Mb/sec
[custom-specifications]
| Specifications | |
| Manufacturer | ASRock, Inc |
| Manufacturer Part Number | B760M-ITX/D4 WIFI |
| Manufacturer Website Address | http://www.asrock.com |
| Brand Name | ASRock |
| Product Model | B760M-ITX/D4 WiFi |
| Product Name | B760M-ITX/D4 WiFi Gaming Desktop Motherboard |
| Package Type | Retail |
| Product Type | Gaming Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | B760 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1700 |
| Processor Generation Supported | 14th Gen,13th Gen,12th Gen |
| Processor Supported | Core |
| Memory | |
| Number of Memory Slots | 2 |
| Memory Form Factor | DIMM,UDIMM |
| Maximum Memory Supported | 64 GB |
| Memory Speed Supported | 5333 MHz |
| Memory Technology | DDR4 SDRAM |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0,1,5,10 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Bluetooth | Yes |
| Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| I/O Expansions | |
| Total Number of PCI Express Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| PCI Express Standard | PCI Express 4.0 |
| Interfaces/Ports | |
| Total Number of USB Ports | 5 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| VGA | Yes |
| HDMI | Yes |
| HDMI Version | 2.1 |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Onboard Interfaces | |
| Number of M.2 Interfaces | 2 |
| Total Number of Onboard USB Ports | 6 |
| Number of Onboard USB 2.0 Ports | 4 |
| Physical Characteristics | |
| Form Factor | Mini ITX |
| Width | 6.69" (170 mm) |
| Depth | 6.69" (170 mm) |
| Miscellaneous | |
| Package Contents |
|
| Energy Efficiency Compliance | Energy-related Products Directive Ready (ErP Ready),Energy-using Products Directive Ready (EuP Ready) |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS),Restriction of Hazardous Substances (RoHS),Taiwan Restriction of Hazardous Substances (Taiwan RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
[/custom-user-manual]
