ASRock Micro ATX Desktop Motherboard Intel Chipset Socket LGA1700 Compatible With Pentium Gold Celeron And Core H610M-HDV
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- Supports 12th Gen Intel® Core™ Processors (LGA1700)
- 5 Phase Power Design
- Supports DDR4 3200MHz
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
- Graphics Output Options: HDMI, DisplayPort, D-Sub
- Realtek ALC887/897 7.1 CH HD Audio Codec
- 4 SATA3
- 4 USB 3.2 Gen1 (2 Rear, 2 Front)
6 USB 2.0 (4 Rear, 2 Front) - Realtek Gigabit LAN

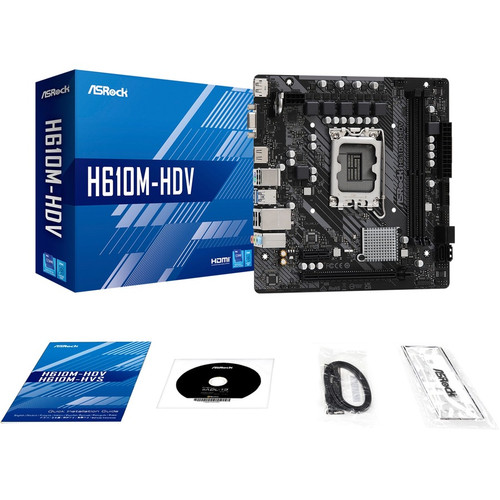

- H610M-HDV Desktop Motherboard
- Quick Installation Guide
- I/O Shield
- 2 x SATA Data Cables
- Support CD
- Drivers
- Utilities
- AntiVirus Software (Trial Version)
Marketing Information:
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
Premium Power Choke
Compared to traditional chokes, ASRock's premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.
Chipset Manufacturer: Intel
Chipset Model: H610
Total Processor Supported: 1
Processor Socket: Socket LGA-1700
Processor Generation Supported: 12th Gen
Processor Supported: Pentium Gold,Celeron,Core i5,Core i7,Core i9,Core i3
Number of Memory Slots: 2
Memory Form Factor: DIMM,UDIMM
Maximum Memory Supported: 64 GB
Memory Speed Supported: 3200 MHz
Memory Technology: DDR4 SDRAM
Controller Type: Serial ATA/600
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
Gigabit Ethernet: Yes
Total Number of Expansion Slots: 2
Total Number of PCI Express Slots: 2
Number of PCI Express x1 Slots: 1
Number of PCI Express x16 Slots: 1
Total Number of USB Ports: 6
Number of USB 2.0 Ports: 4
Number of USB 3.2 Gen 1 Ports: 2
VGA: Yes
HDMI: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Number of SATA Interfaces: 4
Total Number of Onboard USB Ports: 4
Number of Onboard USB 2.0 Ports: 2
Number of Onboard USB 3.2 Ports: 2
Form Factor: Micro ATX
Width: 7.76" (197.10 mm)
Depth: 7.40" (187.96 mm)
Package Contents:
Environmentally Friendly: Yes
Energy Efficiency Compliance: Energy-related Products Directive Ready (ErP Ready)
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),China Restriction of Hazardous Substances (China RoHS)
- Experience responsive performance, power and adaptability with the compatible Intel Celeron processor
- DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
- HDMI interface connects the top of the line PCs, Blu-ray players, and cutting edge Gaming Controllers
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the Micro ATX desktop motherboard
- With 4 USB 2.0 ports, transfer several documents without error
[custom-specifications]
| Specifications | |
| Manufacturer | ASRock, Inc |
| Manufacturer Part Number | H610M-HDV |
| Manufacturer Website Address | http://www.asrock.com |
| Brand Name | ASRock |
| Product Model | H610M-HDV |
| Product Name | H610M-HDV Desktop Motherboard |
| Product Type | Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | H610 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1700 |
| Processor Generation Supported | 12th Gen |
| Processor Supported | Pentium Gold,Celeron,Core i5,Core i7,Core i9,Core i3 |
| Memory | |
| Number of Memory Slots | 2 |
| Memory Form Factor | DIMM,UDIMM |
| Maximum Memory Supported | 64 GB |
| Memory Speed Supported | 3200 MHz |
| Memory Technology | DDR4 SDRAM |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Total Number of PCI Express Slots | 2 |
| Number of PCI Express x1 Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 4 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| VGA | Yes |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Total Number of Onboard USB Ports | 4 |
| Number of Onboard USB 2.0 Ports | 2 |
| Number of Onboard USB 3.2 Ports | 2 |
| Physical Characteristics | |
| Form Factor | Micro ATX |
| Width | 7.76" (197.10 mm) |
| Depth | 7.40" (187.96 mm) |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Energy Efficiency Compliance | Energy-related Products Directive Ready (ErP Ready) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),China Restriction of Hazardous Substances (China RoHS) |
[/custom-specifications]
