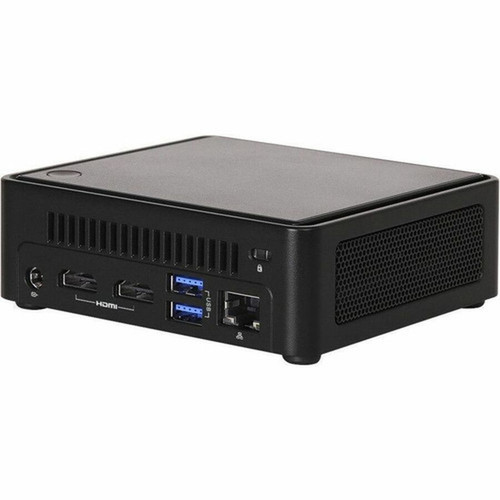

ASRock NUCS BOX-125H Barebone Mini Desktop System - Intel Core Ultra 5125H - 96GB DDR5 Max - 2x M. 2 - 2. 5GbE - Wi-Fi 6E - Thunderbolt 4
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the heart of the NUCS BOX-125H is Intel's Core Ultra 5 125H processor, featuring a 12-core hybrid architecture that combines performance and efficiency cores for balanced workload handling. The processor includes Intel Arc Graphics with shared DDR5 memory, providing capable integrated graphics for display output and light multimedia tasks.
Memory expansion supports up to 96 GB of DDR5-5600 RAM across two SO-DIMM slots, while storage connectivity includes two M.2 interfaces supporting PCI Express 4.0 x4 for high-speed NVMe SSDs. The system includes hardware RAID 0 and 1 support for data redundancy or performance striping configurations.
Relevant factors for this section include AI-powered, Number of Processors Installed, Processor Type, Processor Model. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The NUCS BOX-125H combines modern connectivity with compact design to serve as a versatile computing platform for diverse deployment scenarios. Its comprehensive port selection and wireless capabilities ensure ready connectivity in both wired and wireless network environments.
Advanced Connectivity Suite
The system includes a 2.5 Gigabit Ethernet port for high-speed wired networking, Wi-Fi 6E (802.11ax) for wireless connectivity up to 6 GHz, Bluetooth 5.3 for peripheral connections, and a Thunderbolt 4 port for high-speed data transfer and display output.
- 2.5GbE for network-intensive applications
- Wi-Fi 6E reduces congestion in dense environments
- Thunderbolt 4 supports 40 Gbps data transfer
Flexible Display Configuration
Display output options include HDMI on the rear panel and a front USB-C port that supports DisplayPort 1.4a alternate mode, enabling dual-display setups without additional adapters for most modern monitors.
- HDMI for standard monitor connections
- USB-C with DP1.4a for modern displays
- Supports dual independent displays
Deployment / Use Cases
The compact dimensions and versatile connectivity make the NUCS BOX-125H suitable for office environments where desk space is limited. Its small footprint allows placement behind monitors, under desks, or mounted to walls or monitor arms using the included VESA bracket.
This system serves well as a general-purpose office computer for productivity applications, a digital signage controller for retail or corporate displays, a thin client for virtual desktop infrastructure (VDI) environments, or a compact media center for home entertainment setups. The barebone configuration provides cost control for IT departments that standardize on specific memory, storage, and operating system components across their fleet.
Office Productivity Station
With its 12-core processor and support for up to 96 GB RAM, the system handles office applications, web browsing, video conferencing, and multitasking efficiently while occupying minimal desk space.
Digital Signage & Kiosk Controller
The compact form factor, VESA mounting capability, and dual display support make this system ideal for driving digital signage displays, interactive kiosks, or information terminals in retail, hospitality, or corporate environments.
Physical Profile
Measuring just 4.33 inches wide, 4.63 inches deep, and 1.50 inches tall, the NUCS BOX-125H occupies minimal physical space while delivering full desktop computing capabilities. The compact box PC form factor features a clean, professional appearance suitable for office environments, with ports strategically placed on front and rear panels for convenient access.
Weighing approximately 2.2 pounds (1 kg) without memory and storage installed, the system is easily portable for temporary deployments or relocation between workstations. The included VESA mount bracket enables secure attachment to monitor backs, walls, or under-desk surfaces, further optimizing workspace utilization.
- Width
- 4.33" (110 mm)
- Depth
- 4.63" (117.50 mm)
- Height
- 1.50" (38 mm)
- Weight
- 2.20 lb (1000 g)
What's in the Box
The NUCS BOX-125H barebone system ships with essential components for immediate deployment after adding memory, storage, and operating system.
Highlights
- Intel Core Ultra 5 125H processor with 12 cores for responsive multitasking
- Supports up to 96 GB DDR5-5600 memory for demanding applications
- Dual M.2 slots with PCIe 4.0 x4 interface for high-speed NVMe storage
- 2.5 Gigabit Ethernet and Wi-Fi 6E (802.11ax) for fast wired and wireless connectivity
- Thunderbolt 4 port supports 40 Gbps data transfer and display output
- Compact box PC form factor measures just 4.33" × 4.63" × 1.50"
- Includes VESA mount bracket for flexible placement behind monitors or on walls
- Supports Windows 10 and Windows 11 operating systems
- Front USB-C port with DisplayPort 1.4a support for modern displays
- Hardware RAID 0/1 support for data protection or performance optimization
Specifications
| Specifications | |
|---|---|
| Manufacturer | ASRock, Inc |
| Manufacturer Part Number | NUCS BOX-125H |
| Brand Name | ASRock |
| Product Model | NUCS BOX-125H |
| Product Name | NUCS BOX-125H Barebone System |
| Product Type | Barebone System |
| Technical Information | |
| AI-powered | Yes |
| Processor | |
| Number of Processors Installed | 1 |
| Processor Type | Core Ultra 5 |
| Processor Model | 125H |
| Processor Core | Dodeca-core (12 Core) |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Maximum Memory Supported | 96 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Standard | DDR5-5600/PC5-44800 |
| Controllers | |
| RAID Supported | Yes |
| RAID Levels | 0, 1 |
| Display & Graphics | |
| Graphics Controller Model | Arc Graphics |
| Graphics Memory Technology | DDR5 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.3 |
| I/O Expansions | |
| Number of M.2 Interfaces | 2 |
| Interfaces/Ports | |
| HDMI (Rear) | Yes |
| Total Number of USB Ports | 5 |
| Number of USB 3.2 Gen 2 Type-A Ports | 4 |
| USB Type-C (Front) | Yes |
| USB Type-C Detail | 1 x USB3.2 Gen2x2 (Type-C, Supports DP1.4a display output) |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of Thunderbolt 4 Ports | 1 |
| Operating System | |
| Operating System Supported | Windows 10,Windows 11 |
| Power Description | |
| Maximum Power Supply Wattage | 90 W |
| Physical Characteristics | |
| Form Factor | Box PC |
| Height | 1.50" (38 mm) |
| Width | 4.33" (110 mm) |
| Depth | 4.63" (117.50 mm) |
| Weight (Approximate) | 2.20 lb (1000 g) |
| Miscellaneous | |
| Package Contents | NUCS BOX-125H Barebone System 1 x Power Adapter 1 x Vesa Mount Bracket |
User Manual
FAQ
What components do I need to add to make this barebone system operational?
The NUCS BOX-125H requires user-supplied DDR5 SO-DIMM memory modules (up to 96 GB total), one or two M.2 NVMe SSDs for storage, and a Windows 10 or Windows 11 operating system license and installation media. The system includes the power adapter and VESA mount bracket, so no additional accessories are necessary for basic operation.
What type of memory does this system support and what is the maximum capacity?
This system supports DDR5 SO-DIMM memory modules with a speed of DDR5-5600 (PC5-44800). It has two memory slots that can accommodate up to 96 GB total when using two 48 GB modules. The DDR5 technology provides faster data transfer rates and improved power efficiency compared to previous DDR4 memory.
Can this system support dual monitors?
Yes, the NUCS BOX-125H supports dual monitor configurations through its HDMI port on the rear panel and the front USB-C port that supports DisplayPort 1.4a alternate mode. This allows connection of two independent displays without requiring additional adapters for monitors with HDMI or USB-C inputs that support DisplayPort signaling.
What wireless connectivity options are included?
The system includes both Wi-Fi 6E (802.11ax) and Bluetooth 5.3 wireless technologies. Wi-Fi 6E operates on 2.4 GHz, 5 GHz, and the newly available 6 GHz bands, providing faster speeds and reduced interference in congested wireless environments. Bluetooth 5.3 offers improved energy efficiency and reliable connections for peripherals like keyboards, mice, and headphones.
How can this compact system be mounted or installed?
The NUCS BOX-125H includes a VESA mount bracket that supports standard 75×75 mm or 100×100 mm mounting patterns. This allows the system to be securely attached to the back of compatible monitors, mounted on walls, or installed under desks. The compact dimensions also permit placement on desktops, shelves, or in other confined spaces where traditional desktop towers would not fit.
What operating systems are compatible with this barebone system?
The hardware is compatible with Windows 10 and Windows 11 operating systems. As a barebone system, it does not include a pre-installed operating system, allowing you to install your preferred version of Windows or potentially other operating systems that support the Intel Core Ultra platform. You will need to provide your own OS license and installation media.
