ASRock PG RIPTIDE ATX Socket Desktop Motherboard Supporting Ryzen 3 5 7 And 9 Processors B550 PG RIPTIDE B550 PG RIPTIDE B550 PG RIPTIDE
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
- 10 Phase, Digi Power, Dr. MOS
- Supports DDR4 4933+ (OC)
- 1 PCIe 4.0 x16 Slot, 2 PCIe 3.0 x16 Slots, 1 PCIe 3.0 x1 Slot
1 M.2 Key-E for WiFi - Graphics Outputs: HDMI
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
- 6 SATA3, 1 Hyper M.2 (PCIe Gen4 x4)
1 Ultra M.2 (PCIe Gen3 x4 & SATA3) - 3 USB 3.2 Gen2 (Front Type-C, Rear Type-A+C)
10 USB 3.2 Gen1 (4 Front, 6 Rear), 8 USB 2.0 (6 Front, 2 Rear) - Killer E3100G 2.5G LAN
Marketing Information:
Riptide is named after a specific kind of water current with strong waves that occurs in the ocean, representing the philosophy of sea's double-side, calm and unlimited strength. Built around powerful gaming-related features, the Riptide has given a powerful smash and immersed users in the sense of stability.

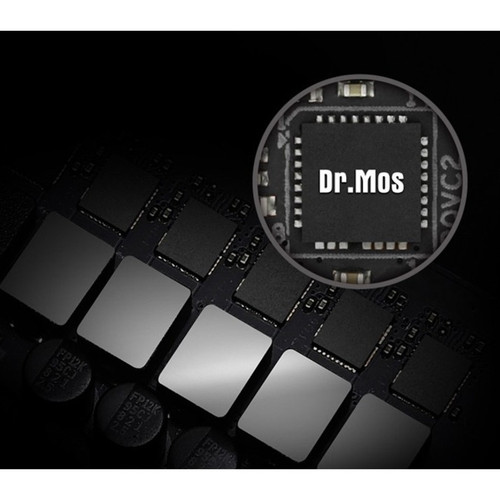

Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
Premium 60A Power Choke
Compared to traditional chokes, ASRock's premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Killer™ Ethernet E3100
The Killer E3100 2.5 Gbps Ethernet controller is designed specically for competitive gamers and performance-hungry users. The enhanced detection and prioritization engine provides the ultimate networking experience for gaming and multimedia applications.
Intel® Killer™ Prioritization Engine
The Intel® Killer™ Prioritization Engine detects and optimally prioritizes over 1,000 different games, apps, and websites to deliver amazing online experiences, ensuring you get your lowest in-game latencies by prioritizing your gaming traffic above everything else.
AMD SMART ACCESS MEMORY
Conventional PC systems processor can only access a fraction of graphics memory and limits system performance. With AMD Smart Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck and increase performance.
PCIe 4.0 High Speed M.2 Solution
This motherboard is capable of accomadating multiple M.2 storage devices, one of which can even support next generation PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
Chipset Manufacturer: AMD
Chipset Model: B550
Total Processor Supported: 1
Processor Socket: Socket AM4
Processor Supported: Ryzen 3,Ryzen 5,Ryzen 7,Ryzen 3 PRO,Ryzen 5 Pro,Ryzen 7 PRO,Ryzen 9,Ryzen 9 PRO
Multi GPU Supported: CrossFireX
Number of Memory Slots: 4
Memory Form Factor: DIMM,UDIMM
Maximum Memory Supported: 128 GB
Memory Speed Supported: 4733 MHz,4666 MHz,4600 MHz,2667 MHz,3200 MHz,2933 MHz,2400 MHz,2133 MHz,4533 MHz,4466 MHz,4333 MHz,4200 MHz,3800 MHz,3466 MHz,3600 MHz,3733 MHz,3866 MHz,4000 MHz,4133 MHz,4266 MHz,4400 MHz,4933 MHz
Memory Technology: DDR4 SDRAM
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0,10,1
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
2.5Gigabit Ethernet: Yes
Total Number of Expansion Slots: 4
Total Number of PCI Express Slots: 4
Number of PCI Express x1 Slots: 1
Number of PCI Express x16 Slots: 3
Total Number of USB Ports: 10
Number of USB 2.0 Ports: 2
Number of USB 3.2 Ports: 1
Number of USB 3.2 Gen 1 Ports: 6
Number of USB 3.2 Gen 2 Type-A Ports: 1
HDMI: Yes
Number of Network (RJ-45) Ports: 1
Number of SATA Interfaces: 6
Number of M.2 Interfaces: 3
Total Number of Onboard USB Ports: 11
Number of Onboard USB 2.0 Ports: 6
Number of Onboard USB 3.2 Ports: 5
Form Factor: ATX
Width: 12" (304.80 mm)
Depth: 9.60" (243.84 mm)
- Compatible Ryzen 3 processor lets you perform all your computational tasks at a swift pace
- DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
- HDMI interface enables the user to experience a fantastic sound/video quality at the expense of a single cable
- ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
- With 2 USB 2.0 ports, transfer several documents without error
[custom-specifications]
| Specifications | |
| Manufacturer | ASRock, Inc |
| Manufacturer Part Number | B550 PG RIPTIDE |
| Manufacturer Website Address | http://www.asrock.com |
| Brand Name | ASRock |
| Product Model | B550 PG RIPTIDE |
| Product Name | B550 PG RIPTIDE Desktop Motherboard |
| Product Type | Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | B550 |
| Total Processor Supported | 1 |
| Processor Socket | Socket AM4 |
| Processor Supported | Ryzen 3,Ryzen 5,Ryzen 7,Ryzen 3 PRO,Ryzen 5 Pro,Ryzen 7 PRO,Ryzen 9,Ryzen 9 PRO |
| Multi GPU Supported | CrossFireX |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM,UDIMM |
| Maximum Memory Supported | 128 GB |
| Memory Speed Supported | 4733 MHz,4666 MHz,4600 MHz,2667 MHz,3200 MHz,2933 MHz,2400 MHz,2133 MHz,4533 MHz,4466 MHz,4333 MHz,4200 MHz,3800 MHz,3466 MHz,3600 MHz,3733 MHz,3866 MHz,4000 MHz,4133 MHz,4266 MHz,4400 MHz,4933 MHz |
| Memory Technology | DDR4 SDRAM |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0,10,1 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| 2.5Gigabit Ethernet | Yes |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Total Number of PCI Express Slots | 4 |
| Number of PCI Express x1 Slots | 1 |
| Number of PCI Express x16 Slots | 3 |
| Interfaces/Ports | |
| Total Number of USB Ports | 10 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Ports | 1 |
| Number of USB 3.2 Gen 1 Ports | 6 |
| Number of USB 3.2 Gen 2 Type-A Ports | 1 |
| HDMI | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 6 |
| Number of M.2 Interfaces | 3 |
| Total Number of Onboard USB Ports | 11 |
| Number of Onboard USB 2.0 Ports | 6 |
| Number of Onboard USB 3.2 Ports | 5 |
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12" (304.80 mm) |
| Depth | 9.60" (243.84 mm) |
[/custom-specifications]
